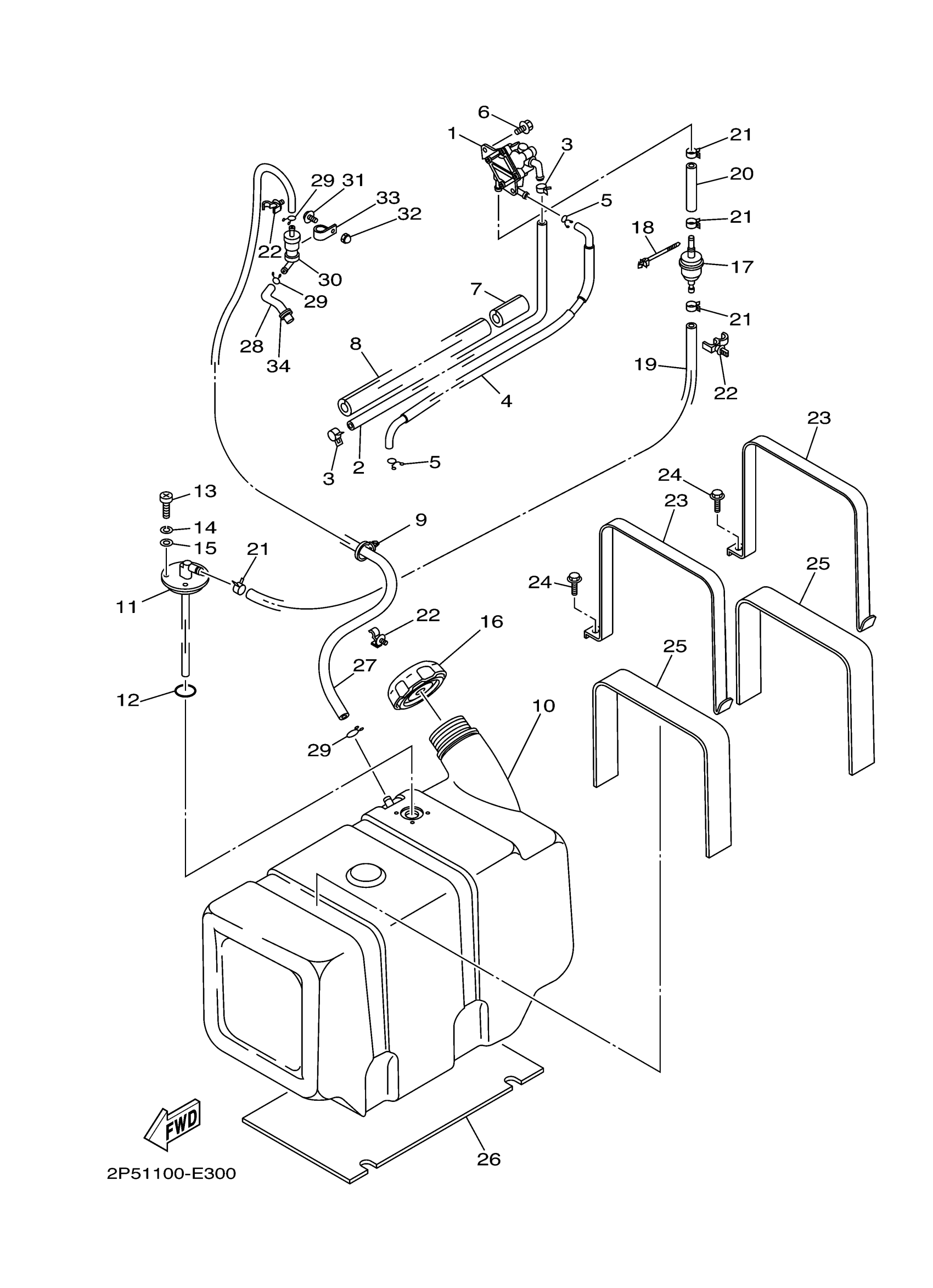

Yamaha YXR45FAVGR (RHINO 450 4WD) 2P51 2006 FUEL TANK Diagram

#

Description
Price

1

FUEL PUMP ASSY

5UG-13910-01-00

$122.99

2

PIPE, FUEL

2P5-E4295-10-00

Unavailable

3

CLIP (7K7)

90467-11044-00

$8.49

4

HOSE, AIR

2P5-E3895-00-00

Unavailable

5

CLIP

90467-100A1-00

$7.49

6

BOLT, FLANGE

95022-06016-00

$3.62

7

INSULATOR

5UG-14271-00-00

$13.49

8

INSULATOR

5UG-14271-50-00

$6.99

9

CLAMP

90464-25826-00

Unavailable

10

TANK, FUEL

5UG-F4111-01-00

Unavailable

11

FUEL PIPE JOINT

2P5-F4300-10-00

Unavailable

12

O-RING

93210-228C4-00

$5.60

13

SCREW, PAN HEAD

98507-05014-00

$8.49

14

WASHER(3SX)

92907-05100-00

$8.49

15

WASHER(1RW)

92907-05600-00

$3.78

16

CAP ASSY

BVG-24610-00-00

Unavailable

17

FILTER ASSY

JN6-F4560-00-00

Unavailable

18

CLAMP

90464-38800-00

Unavailable

19

PIPE, FUEL 1

5UG-F4311-00-00

Unavailable

20

PIPE 3

5UG-F4313-00-00

Unavailable

21

CLIP (7K7)

90467-11044-00

$8.49

22

CLAMP

90464-12830-00

Unavailable

23

STAY, FUEL TANK 1

5UG-F4157-00-00

Unavailable

24

BOLT, FLANGE

90105-08879-00

Unavailable

25

DAMPER, PLATE 1

5UG-F414H-00-00

Unavailable

26

DAMPER, PLATE 2

5UG-F414J-00-00

Unavailable

27

PIPE 4

5UG-F4314-00-00

Unavailable

28

PIPE 2

5UG-F4312-00-00

Unavailable

29

CLIP

90467-100A1-00

$7.49

30

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

31

SCREW, BINDING

98907-05010-00

Unavailable

32

NUT, CROWN(47X)

90176-05054-00

Unavailable

33

CLAMP

90464-15014-00

Unavailable

34

GROMMET (1E6)

90480-15058-00

Unavailable
