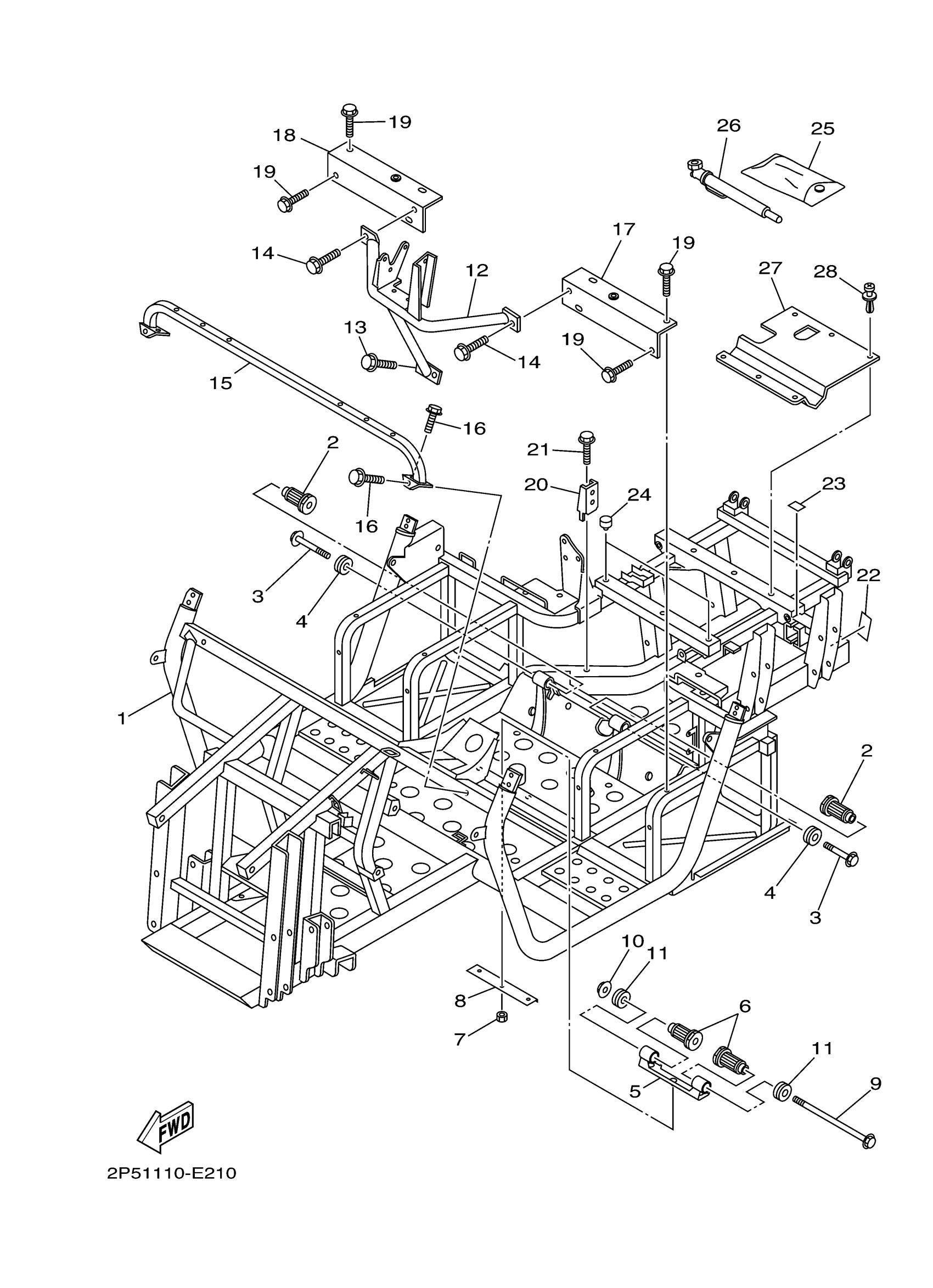

Yamaha YXR45FAVGR (RHINO 450 4WD) 2P51 2006 FRAME Diagram
#
Description
Price
1
FRAME COMP.
2P5-F1110-00-00
Unavailable
1
FRAME COMP.
2P5-F1110-00-00
Unavailable
2
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
3
BOLT, FLANGE
95817-10080-00
$5.60
4
DAMPER 2
5ND-F1486-00-00
$10.99
5
STAY, ENGINE 2
2P5-F1315-00-00
Unavailable
6
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
7
NUT, SELF-LOCKING
90185-08169-00
$8.49
8
BRACKET, UNDER
2P5-F2229-00-00
Unavailable
9
BOLT, WASHER BASED
90105-10055-00
Unavailable
10
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
11
DAMPER 2
5ND-F1486-00-00
$10.99
12
REINFORCEMENT, FRAME 1
5UG-F1986-00-00
Unavailable
13
BOLT, FLANGE
90105-06831-00
$2.29
14
BOLT, FLANGE
95817-10020-00
$8.49
15
SUPPORTER
2P5-F1145-01-00
Unavailable
16
BOLT, FLANGE
90105-08867-00
Unavailable
17
SUPPORT, SEAT
5UG-F114H-01-00
Unavailable
18
SUPPORT, SEAT
5UG-F114J-01-00
Unavailable
19
BOLT, FLANGE
90105-08867-00
Unavailable
20
BRKT.
5UG-F116B-00-00
Unavailable
21
BOLT, FLANGE
90105-06831-00
$2.29
22
LABEL 7
5UG-F151K-02-00
Unavailable
23
LABEL 6
5UG-F151J-00-00
Unavailable
24
STOPPER, MAIN STAND
5UG-F7114-00-00
Unavailable
25
TOOL KIT
5ND-F8100-00-00
Unavailable
26
GAUGE, AIR
5UG-F811A-00-00
Unavailable
27
INSULATOR, HEAT
5UG-F2898-00-00
Unavailable
28
RIVET
90269-06804-00
Unavailable
