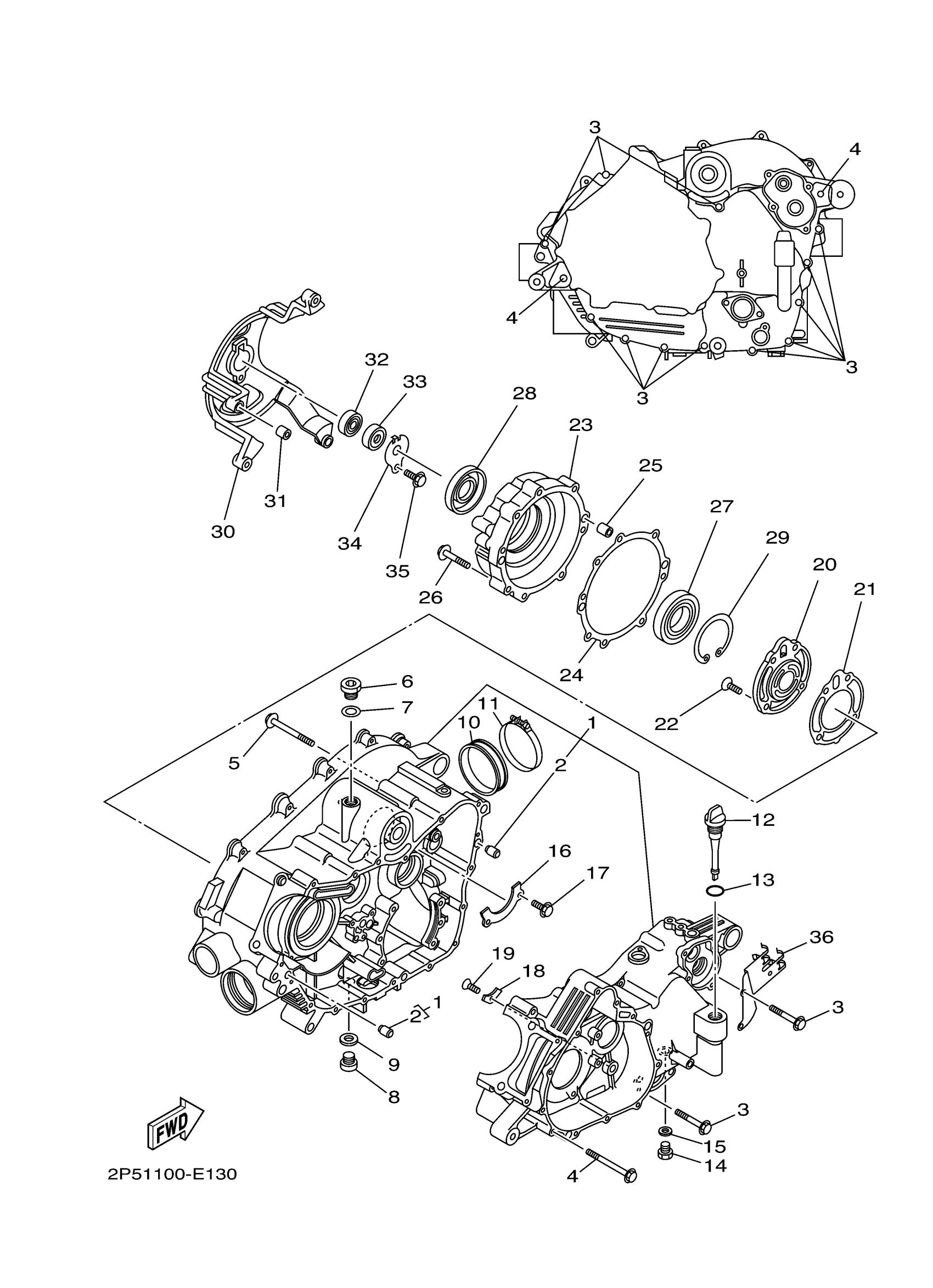

Yamaha YXR45FAVGR (RHINO 450 4WD) 2P51 2006 CRANKCASE Diagram
#
1
CRANKCASE ASSY
2P5-15100-01-00
$1,033.99
2
PIN, DOWEL(3VD)
99530-10114-00
$2.55
3
BOLT, FLANGE
95022-06040-00
$3.45
4
BOLT, FLANGE
95022-06065-00
$1.96
5
BOLT, FLANGE
95022-06065-00
$1.96
6
PLUG, STRAIGHT SCREW
90340-18003-00
Unavailable
7
GASKET (1J7)
90430-18130-00
$8.49
8
PLUG, STRAIGHT SCREW
90340-14002-00
$20.99
9
GASKET
214-11198-01-00
$3.17
10
PLUG
2P5-15189-00-00
$7.99
11
HOSE CLAMP ASSY
90450-60005-00
Unavailable
12
PLUG, OIL LEVEL
5GH-15362-00-00
Unavailable
13
O-RING (603)
93210-19026-00
$8.49
14
PLUG, STRAIGHT(2E9)
90340-14029-00
$4.29
15
GASKET
214-11198-01-00
$3.17
16
PLATE, BEARING COVER
5GH-15388-00-00
Unavailable
17
BOLT, FLANGE
95817-06012-00
Unavailable
18
PLATE, BEARING COVER
4XM-15383-00-00
Unavailable
19
SCREW, COUNTERSUNK
90151-06023-00
Unavailable
20
COVER, AIR CLEANER
5GH-15414-00-00
Unavailable
21
GASKET 1
5GH-15454-00-00
Unavailable
22
SCREW, FLAT
98707-06020-00
Unavailable
23
HOUSING, BEARING 1
5GH-15163-00-00
Unavailable
24
GASKET, CARBURETOR COVER 2
5GH-15463-00-00
Unavailable
25
PIN, DOWEL(3VD)
99530-10114-00
$2.55
26
BOLT, FLANGE
95022-06040-00
$3.45
27
BEARING
93316-01003-00
Unavailable
28
OIL SEAL
93102-32483-00
Unavailable
29
CIRCLIP (70R)
93420-80066-00
Unavailable
30
HOUSING, BEARING
5GH-15442-01-00
Unavailable
31
PIN, DOWEL
91810-20001-00
Unavailable
32
BEARING(82M)
93306-20117-00
Unavailable
33
OIL SEAL
93101-12168-00
Unavailable
34
PLATE, BEARING COVER
4WV-15381-00-00
Unavailable
35
BOLT, FLANGE
95022-06012-00
Unavailable
36
GUIDE, OIL HOSE
2P5-13487-00-00
Unavailable
