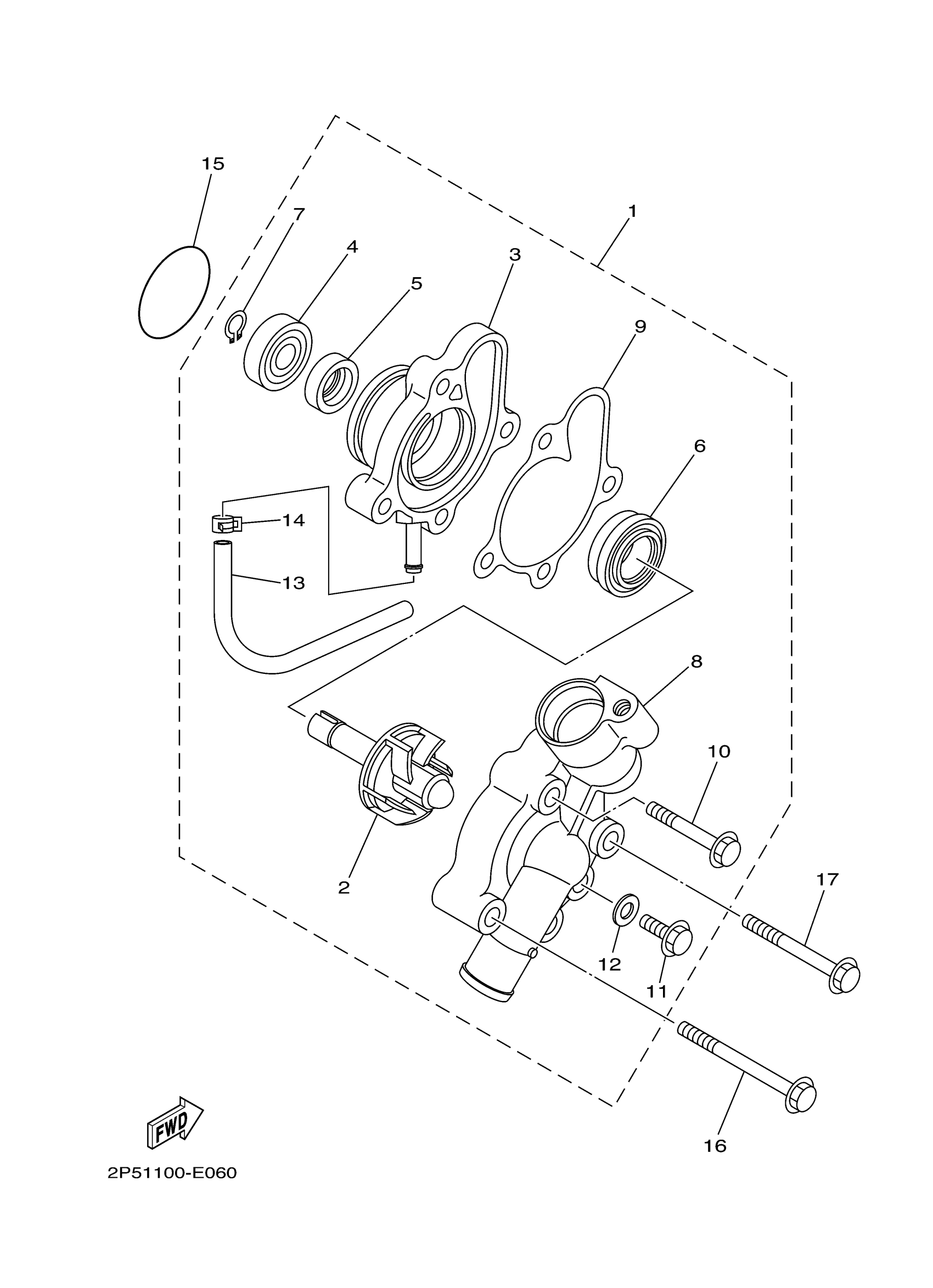

Yamaha YXR45FAHV (RHINO 450 REALTREE HD CAMO) 2P57 2006 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

2P5-Y1242-00-00

$287.99

2

IMPELLER SHAFT ASSY

5CG-12450-00-00

$85.99

3

HOUSING, WATER PUMP

5GH-12421-01-00

$114.99

4

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

5

OIL SEAL (J10)

93101-10090-00

$8.49

6

SEAL, MECHANICAL

11H-12438-10-00

$62.99

7

CIRCLIP(10W)

99009-10400-00

$4.73

8

. COVER, HOUSING

2P5-12422-00-00

Unavailable

9

GASKET, HOUSING COVER 2

5GH-12428-00-00

$6.99

10

. BOLT, FLANGE

90105-06086-00

Unavailable

11

BOLT, FLANGE

95022-06012-00

$3.29

12

GASKET 256113960000

90430-06014-00

Unavailable

13

HOSE(7FK)

90446-04254-00

$8.49

14

CLIP

90467-06194-00

$2.34

15

O-RING (626)

93210-33133-00

$2.92

16

BOLT, FLANGE

95022-06060-00

Unavailable

17

BOLT, FLANGE

95022-06050-00

Unavailable
