- YXR45FAHV (RHINO 450 REALTREE HD CAMO) 2P57 2006
RADIATOR HOSE

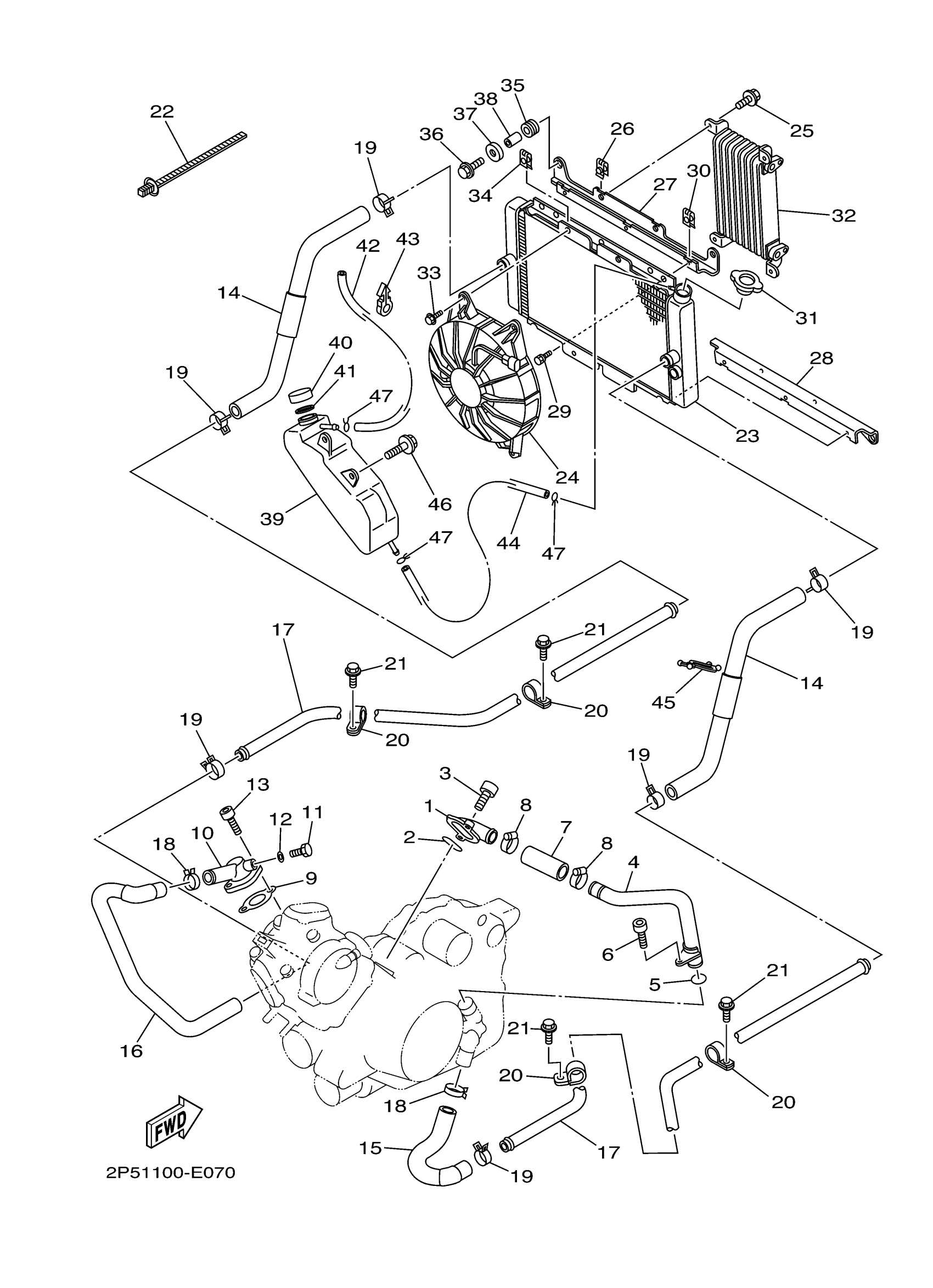

Yamaha YXR45FAHV (RHINO 450 REALTREE HD CAMO) 2P57 2006 RADIATOR HOSE Diagram
#
1
JOINT
5GH-12446-00-00
Unavailable
2
O-RING
93210-33006-00
$4.72
3
BOLT,SOCKET HEAD
91314-06020-00
$1.49
4
PIPE 4
2P5-12484-00-00
$31.99
5
O-RING (716)
93210-18417-00
$7.49
6
BOLT,SOCKET
91317-06012-00
$8.49
7
PIPE 1
5GH-12481-00-00
$11.99
8
HOSE CLAMP ASSY
90450-32015-00
$17.99
9
GASKET
2P5-12434-00-00
$8.99
10
COVER, THERMOSTAT
2P5-12413-00-00
$22.99
11
PLUG
90338-06008-00
Unavailable
12
GASKET 256113960000
90430-06014-00
Unavailable
13
BOLT,SOCKET HEAD
91314-06020-00
$1.49
14
HOSE 1
5UG-E2576-00-00
$36.99
15
HOSE 2
2P5-E2577-00-00
Unavailable
16
HOSE 4
2P5-E2579-00-00
Unavailable
17
PIPE, WATER
5UG-E2564-00-00
Unavailable
18
CLIP(4HC)
90467-23177-00
Unavailable
19
CLIP
90467-26189-00
Unavailable
20
CLAMP
90461-12800-00
Unavailable
21
BOLT, FLANGE
90105-06831-00
Unavailable
22
CLAMP
90464-20005-00
Unavailable
23
RADIATOR ASSY
5UG-E2461-00-00
Unavailable
24
BLOWER ASSY
5UG-E2405-00-00
Unavailable
25
BOLT, BLOWER HOLDI
5ND-E2675-00-00
Unavailable
26
PLATE
5ND-E2535-00-00
Unavailable
27
BRACKET 1
5UG-E244E-01-00
Unavailable
28
BRACKET 2
5UG-E244F-00-00
Unavailable
29
BOLT
5UG-E2623-00-00
Unavailable
30
PLATE
5ND-E2535-00-00
Unavailable
31
CAP, RADIATOR
5ND-E2462-00-00
Unavailable
32
OIL COOLER ASSY
5UG-E3470-00-00
Unavailable
33
BOLT, BLOWER HOLDI
5ND-E2675-00-00
Unavailable
34
PLATE
5ND-E2535-00-00
Unavailable
35
GROMMET(2GH)
90480-12475-00
Unavailable
36
BOLT, FLANGE
90105-06833-00
Unavailable
37
WASHER
90209-06012-00
Unavailable
38
COLLAR
90387-06113-00
Unavailable
39
TANK, RECOVERY
5GS-21871-00-00
Unavailable
40
CAP
26H-21875-00-00
Unavailable
41
GASKET
26H-21874-00-00
Unavailable
42
HOSE
90445-08811-00
Unavailable
43
CLAMP
90464-12830-00
Unavailable
44
HOSE
90445-08809-00
Unavailable
45
CLAMP(3XV)
90464-29179-00
Unavailable
46
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
47
CLIP 101235600
90467-08003-00
Unavailable
