Description

Price

1

NUT, U

95617-08100-00

$9.49

2

CABLE END ASSY

JN3-G8330-00-00

Unavailable

3

. LEVER, SHIFT 2

J55-G6383-00-00

Unavailable

4

. WIRE, SHIFT

JN3-G6371-00-00

Unavailable

5

LEVER, SHIFT 1

JW4-46382-00-00

Unavailable

6

PIN, CLEVIS

91701-06014-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

PIN, COTTER (648)

91490-20015-00

$2.20

9

KNOB, SHIFT

JN3-G6381-00-00

Unavailable

10

SPRING SET

JN3-G6376-00-00

Unavailable

11

WASHER, PLATE

90201-208S8-00

$1.86

12

WASHER, PLATE

90201-198S7-00

$1.28

13

CIRCLIP(1EY)

99009-19400-00

$8.49

14

SCREW, PAN HEAD

98517-04016-00

$8.49

15

WASHER(6TA)

92907-04100-00

$8.49

16

WASHER(JF2)

92907-04600-00

Unavailable

17

BRACKET, SHIFT WIRE

JN3-G6372-00-00

Unavailable

18

BOLT, FLANGE

90105-06870-00

Unavailable

19

SWITCH

JN3-82617-01-00

Unavailable

20

CLAMP(4MX)

90465-06376-00

Unavailable

21

CLAMP

90464-19815-00

Unavailable

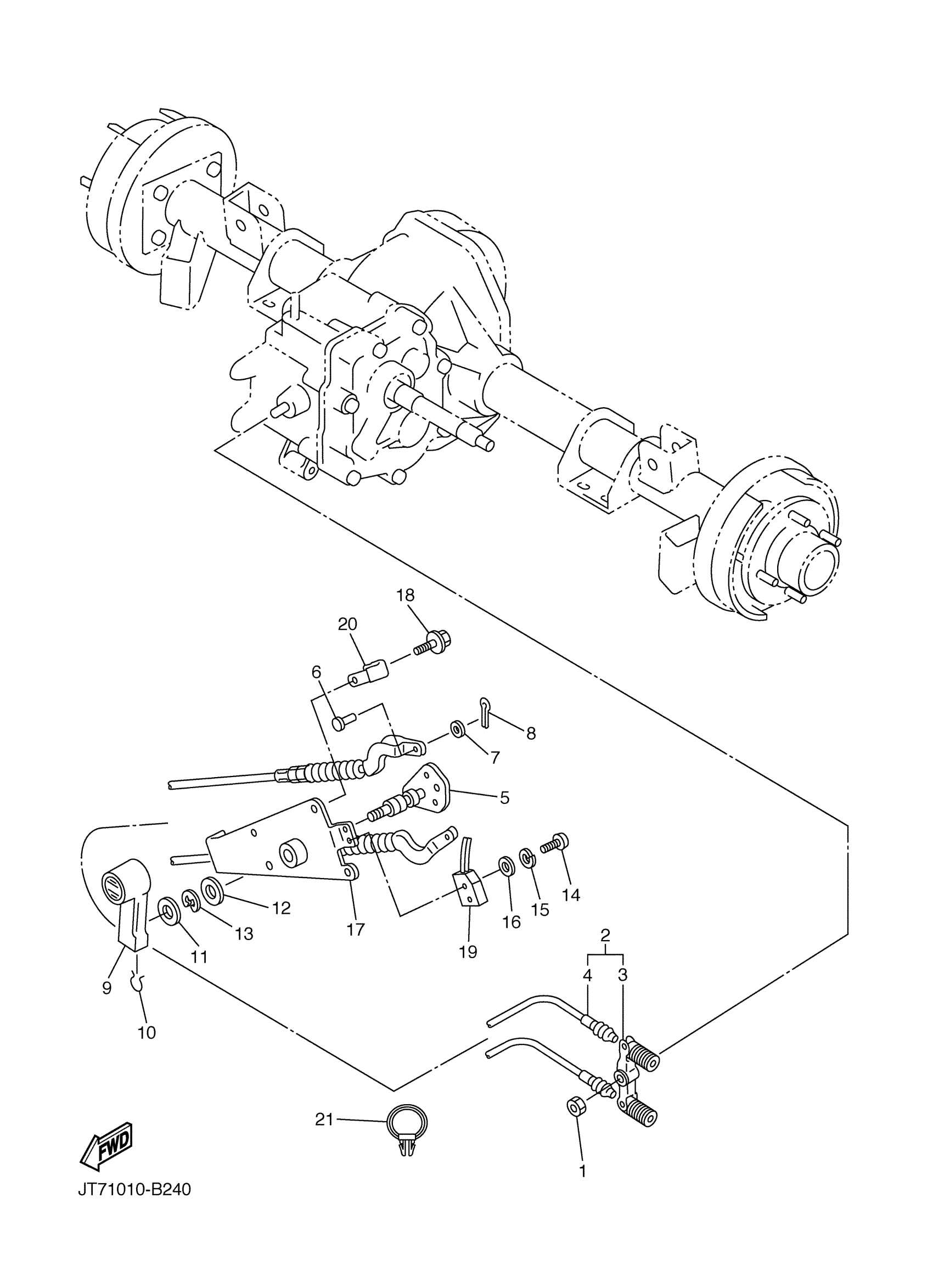

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 SHIFTER CABLES Diagram

NUT, U

CABLE END ASSY

. LEVER, SHIFT 2

. WIRE, SHIFT

LEVER, SHIFT 1

PIN, CLEVIS

WASHER, PLAIN (646)

PIN, COTTER (648)

KNOB, SHIFT

SPRING SET

WASHER, PLATE

WASHER, PLATE

CIRCLIP(1EY)

SCREW, PAN HEAD

WASHER(6TA)

WASHER(JF2)

BRACKET, SHIFT WIRE

BOLT, FLANGE

SWITCH

CLAMP(4MX)

CLAMP
