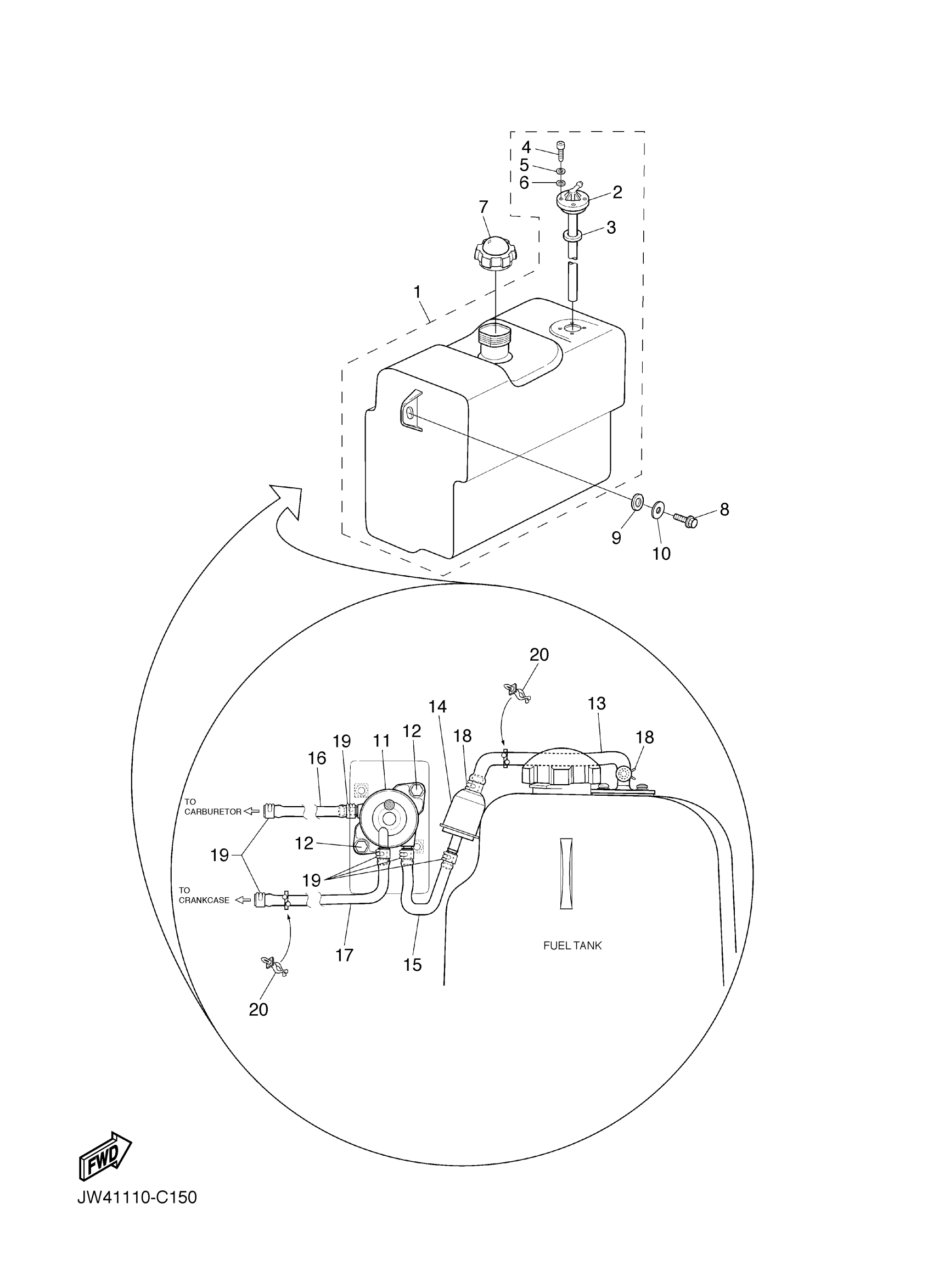

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

JU0-F4111-01-00

Unavailable

2

FUEL PIPE JOINT

2P5-F4300-10-00

Unavailable

3

O-RING

93210-228C4-00

$5.60

4

SCREW, PAN HEAD

98507-05014-00

$8.49

5

WASHER(3SX)

92907-05100-00

$8.49

6

WASHER(1RW)

92907-05600-00

$3.78

7

. CAP ASSY

JN6-F4610-00-00

Unavailable

8

BOLT, FLANGE

90105-088B0-00

Unavailable

9

COLLAR

90387-08079-00

$8.49

10

WASHER, PLATE

90201-088S2-00

Unavailable

11

FUEL PUMP ASY

JN6-F4410-11-00

Unavailable

12

BOLT, SPECIAL

JN6-F3394-00-00

Unavailable

13

PIPE 2

JN6-F4312-40-00

Unavailable

14

FILTER ASSY

JN6-F4560-00-00

Unavailable

15

PIPE, FUEL 1

JW1-F4311-00-00

Unavailable

16

PIPE 3

JN6-F4313-40-00

Unavailable

17

PIPE 4

JU7-F4314-01-00

Unavailable

18

CLIP,SCISSOR

90467-12845-00

Unavailable

19

CLIP

90467-10846-00

Unavailable

20

CLAMP

90464-11816-00

Unavailable
