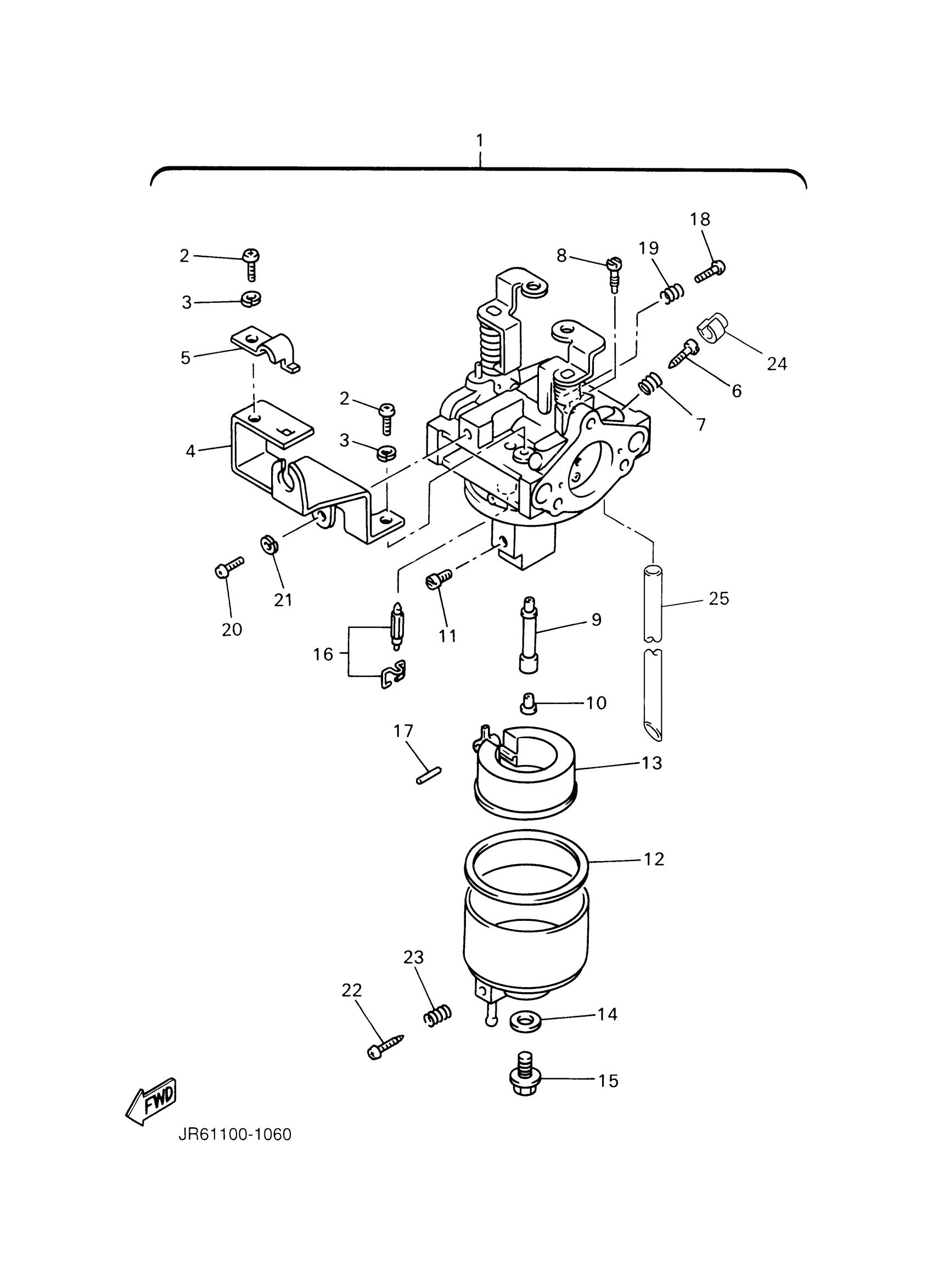

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 CARBURETOR Diagram
#
Description
Price
1
CARBURETOR ASSY 1
JR6-14101-03-00
Unavailable
2
GASKET, EXHAUST
98507-05008-00
$3.55
3
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
4
. BRACKET 1
JN6-14291-00-00
Unavailable
5
. PLATE
J10-14227-00-00
Unavailable
6
SCREW, PILOT ADJUSTING
7NJ-14211-00-00
$6.99
7
SPRING, PILOT ADJUSTING
73A-14212-10-00
$6.99
8
. JET, PILOT (# 65)
732-14142-65-A0
Unavailable
9
. NOZZLE, MAIN
JN6-1495H-3B-00
Unavailable
10
PIPE, MAIN BREED
7RJ-1414G-00-00
$25.99
11
JET,MAIN #82.5
3G2-1423A-67-00
Unavailable
11
JET,MAIN #87.5
3G2-1423A-68-00
$15.49
11
. JET, MAIN (#838)
3G2-1423E-33-A0
Unavailable
12
GASKET, FLOAT CHAMBER
796-14184-00-00
$10.49
13
FLOAT
JN6-14185-00-00
$17.49
14
GASKET
127-14198-00-00
Unavailable
15
. BOLT, HOLDING
7R1-14162-00-00
Unavailable
16
. NEEDLE ASSY (WITH CLIP)
JN5-14150-00-00
Unavailable
17
PIN, FLOAT
22F-14186-00-00
Unavailable
18
SCREW, THROTTLE
1WG-14922-00-00
Unavailable
19
SPRING, PILOT ADJUSTING
73A-14212-10-00
$6.99
20
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
21
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
22
. PLUG, DRAIN
7E1-14191-00-00
Unavailable
23
SPRING, PILOT ADJUSTING
73A-14212-00-00
Unavailable
24
CAP
7LV-14118-00-00
Unavailable
25
. PIPE
1KT-14197-01-00
Unavailable
