Description

Price

1

BRACKET, ACCELERATOR PEDAL

JN6-F7874-02-00

Unavailable

2

SHAFT, PEDAL 1

J17-27853-01-00

Unavailable

3

ARM, ACCELERATOR PEDAL

J38-27872-00-00

Unavailable

4

PIN, SPRING(J38)

91609-60028-00

$8.49

5

PIN, SPRING (J10)

91609-35028-00

$7.49

6

PEDAL, ACCELERATOR

JF3-27871-01-00

Unavailable

7

BOLT, FLANGE

95817-06025-00

Unavailable

8

BOLT

90106-08802-00

Unavailable

9

NUT, FLANGE(JN5)

95707-08500-00

$3.13

10

BUSH, BIMETAL FORMED (J10)

90384-14080-00

$5.60

11

O-RING (26H)

93210-14579-00

$7.49

12

BOLT, FLANGE

90105-088B0-00

Unavailable

13

SPRING, TENSION

90506-26282-00

Unavailable

14

CABLE, THROTTLE 1

JU0-F6311-00-00

Unavailable

15

PIN, CLEVIS (676)

91790-05014-00

Unavailable

16

CLIP (156-83525-00)

90468-10050-00

Unavailable

17

SPRING, TORSION

90508-16460-00

Unavailable

18

SPACER

90560-05001-00

Unavailable

19

BOLT, FLANGE

95817-06025-00

Unavailable

20

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

21

CLAMP(JN6)

90464-40825-00

Unavailable

22

COLLAR

90387-068T4-00

Unavailable

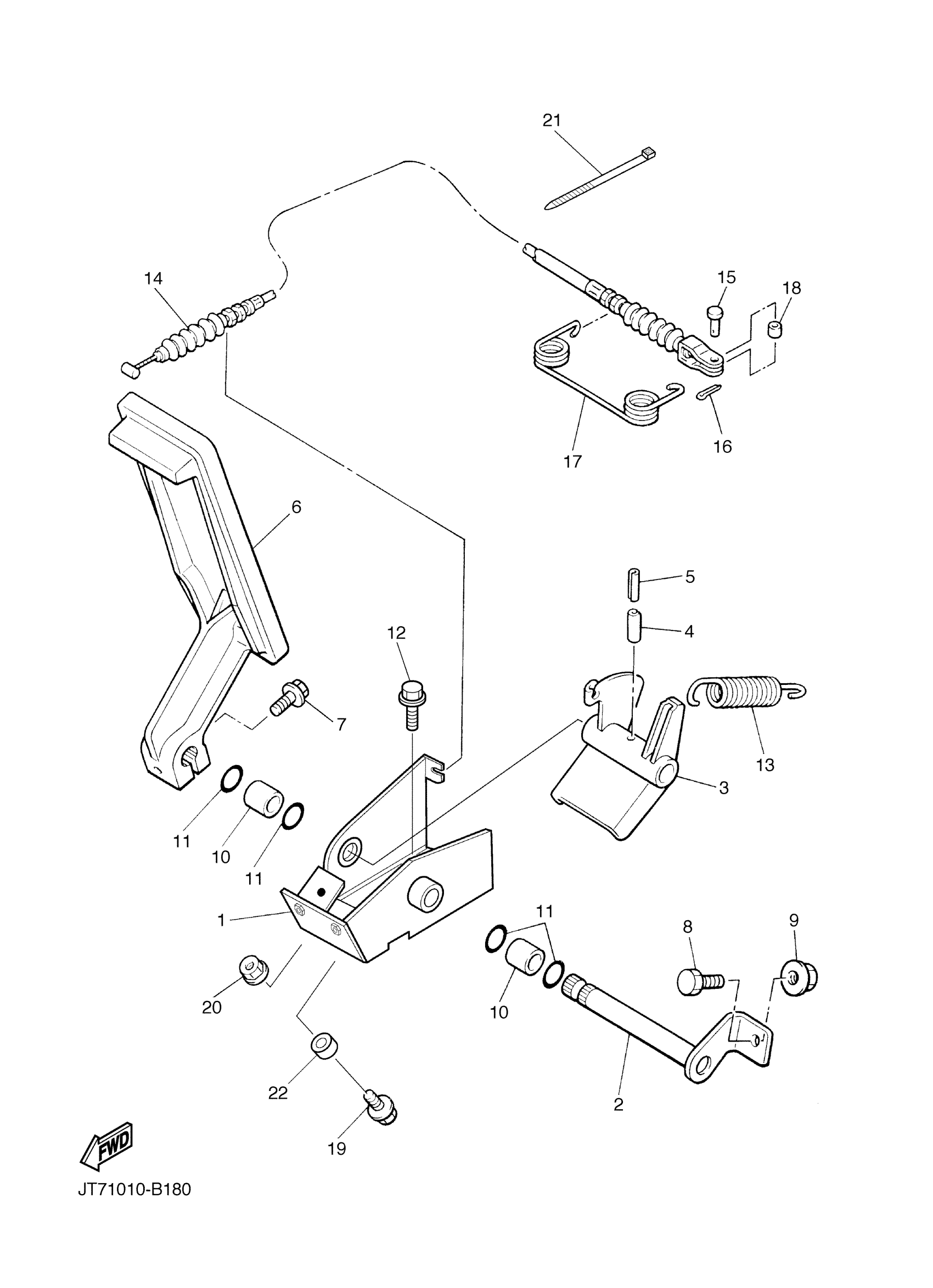

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 ACCELERATOR Diagram

BRACKET, ACCELERATOR PEDAL

SHAFT, PEDAL 1

ARM, ACCELERATOR PEDAL

PIN, SPRING(J38)

PIN, SPRING (J10)

PEDAL, ACCELERATOR

BOLT, FLANGE

BOLT

NUT, FLANGE(JN5)

BUSH, BIMETAL FORMED (J10)

O-RING (26H)

BOLT, FLANGE

SPRING, TENSION

CABLE, THROTTLE 1

PIN, CLEVIS (676)

CLIP (156-83525-00)

SPRING, TORSION

SPACER

BOLT, FLANGE

NUT, FLANGE(4MV)

CLAMP(JN6)

COLLAR
