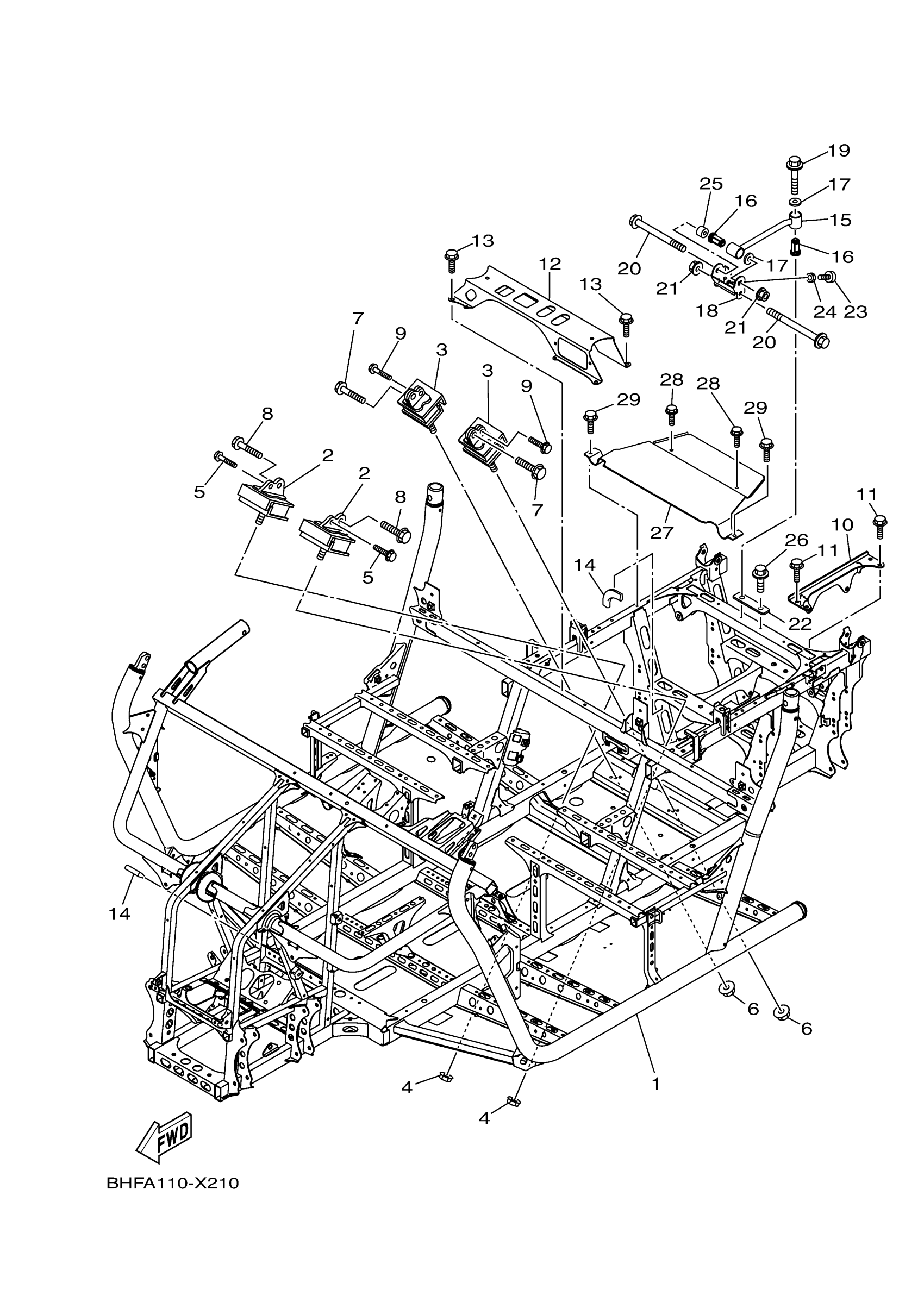

Yamaha YXM70VPRRC (VIKING EPS RANCH) BHFP 2024 FRAME Diagram

#

Description
Price

1

FRAME COMP.

B42-F1110-00-00

Unavailable

2

DAMPER, RUBBER 1

2PG-21485-00-00

$25.18

3

DAMPER, RUBBER 1

5B4-21485-01-00

$94.99

4

NUT, SELF-LOCKING

90185-10011-00

$3.67

5

BOLT, FLANGE(2UJ)

95024-06016-00

$6.22

6

NUT, SELF-LOCKING

90185-10011-00

$3.67

7

BOLT, FLANGE

95812-10035-00

$4.66

8

BOLT, FLANGE

90105-10314-00

Unavailable

9

BOLT, FLANGE(2UJ)

95024-06016-00

$6.22

10

STAY, SUPPORT 1

2PG-F831T-00-00

$14.55

11

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

12

PROTECTOR 1

1XD-F834V-00-00

$27.67

13

BOLT, FLANGE

90105-08867-00

$1.47

14

MOLE 3

4XY-28347-00-00

Unavailable

15

STAY, ENGINE 1

B42-F1315-02-00

$23.03

16

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

17

DAMPER 2

5ND-F1486-00-00

Unavailable

18

BRACKET, DAMPER

B42-F1121-01-00

Unavailable

19

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

20

BOLT, FLANGE

95812-10100-00

Unavailable

21

NUT, S/L FLANGE

95602-10200-00

Unavailable

22

BRACKET

B42-F1158-00-00

Unavailable

23

SCREW PAN HEAD

98580-06020-00

Unavailable

24

NUT(650)

95380-06700-00

Unavailable

25

COLLAR

B42-F1116-00-00

Unavailable

26

BOLT, FLANGE

95817-10020-00

Unavailable

27

INSULATOR, HEAT

1XD-F2898-21-00

$34.17

28

BOLT, FLANGE

90105-08867-00

$1.47

29

BOLT, FLANGE

90105-08867-00

$1.47
