2016 Yamaha Viking (YXM70VDXGR) Shift Cam Fork Diagram

← All diagrams

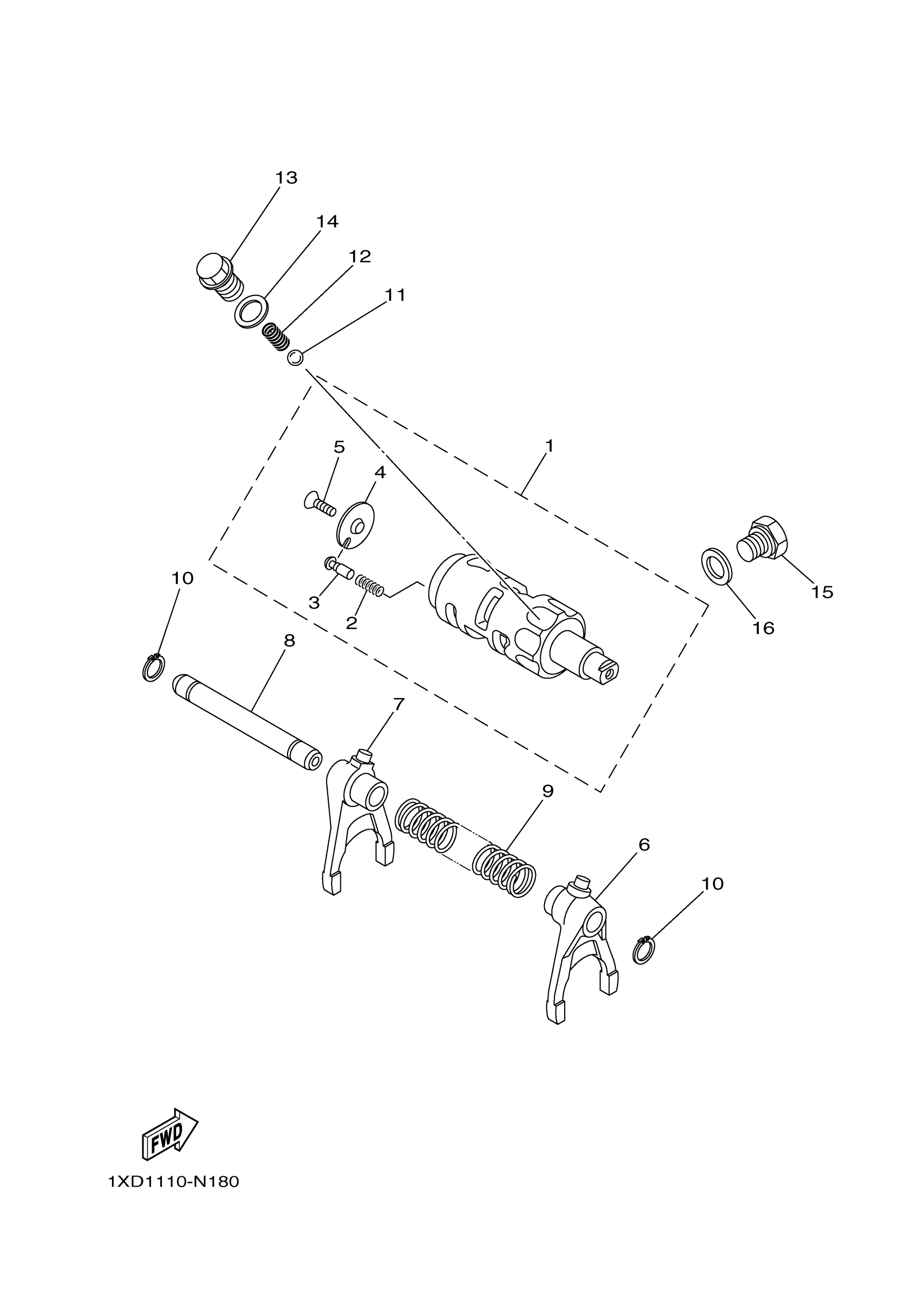

Find the part on the Shift Cam Fork diagram for your 2016 Yamaha Viking (YXM70VDXGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Viking (YXM70VDXGR) Shift Cam Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

1XD-18540-00-00

—
Out of stock

2

SPRING COMPRESSION278185450000

90501-06022-00

1
Out of stock

3

POINT, NEUTRAL

5KM-18542-00-00

1
Out of stock

4

PLATE, SIDE 2

4UN-18566-00-00

1
Out of stock

5

SCREW

90149-05015-00

1
Out of stock

6

FORK, SHIFT 1

3B4-18511-11-00

1
Out of stock

7

FORK, SHIFT 2

1XD-18512-00-00

1
Out of stock

8

BAR, SHIFT FORK GUIDE 1

5B4-18531-00-00

1
Out of stock

9

SPRING, COMPRESSION

90501-140A2-00

1
Out of stock

10

CIRCLIP(10Y)

99009-12400-00

1
Out of stock

11

BALL

93503-08007-00

1
Out of stock

12

SPRING, COMPRESSION

90501-100A8-00

1
Out of stock

13

BOLT, FLANGE

90105-14003-00

1
Out of stock

14

GASKET(59V)

90430-14194-00

1
Out of stock

15

PLUG, (663)

90340-14036-00

1
Out of stock

16

GASKET(59V)

90430-14194-00

1
Out of stock
