2017 Yamaha Viking (YXM70VDHHH) Shift Shaft Diagram

← All diagrams

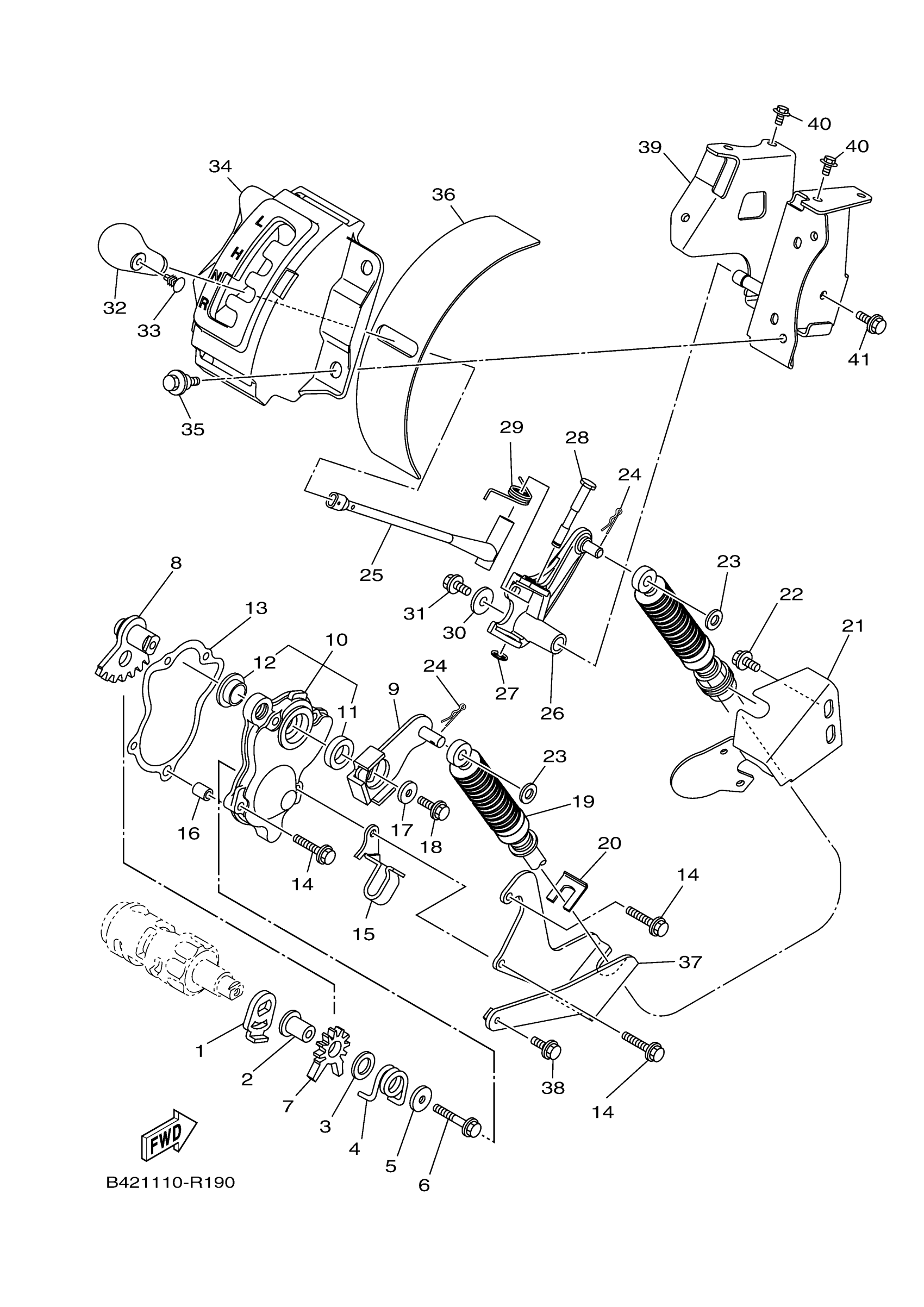

Find the part on the Shift Shaft diagram for your 2017 Yamaha Viking (YXM70VDHHH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Viking (YXM70VDHHH) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER

1XD-18198-00-00

1
Out of stock

2

COLLAR

90387-0613B-00

1
Out of stock

3

WASHER, PLATE

90201-13013-00

1
Out of stock

4

SPRING, TORSION(1YW)

90508-35764-00

1
Out of stock

5

WASHER, PLATE

90201-06036-00

1
Out of stock

6

95812-06035

95812-06035-00

1
Out of stock

7

LEVER

5KM-18191-00-00

1
Out of stock

8

SHIFT SHAFT COMP.

3B4-18103-11-00

1
Out of stock

9

SHIFT GUIDE COMP.

1XD-18104-00-00

1
Out of stock

10

SHIFTER BRKT. ASSY

3B4-18380-00-00

—
Out of stock

11

OIL SEAL (3X3)

93102-15212-00

1
Out of stock

12

SPACER 2

3B4-18582-00-00

—
Out of stock

13

GASKET

3B4-18146-00-00

1
Out of stock

14

BOLT, FLANGE

95022-06025-00

1
Out of stock

15

CLAMP

90462-10048-00

—
Out of stock

16

PIN, DOWEL

99530-08012-00

1
Out of stock

17

WASHER, PLATE

90201-06036-00

1
Out of stock

18

BOLT, FLANGE

90105-06175-00

—
Out of stock

19

CABLE, CONTROL 1

B42-2637E-00-00

—
Out of stock

20

CIRCLIP

1XD-25866-00-00

—
Out of stock

21

HOLDER, ADJUSTING

B42-F6381-00-00

1
Out of stock

22

BOLT, FLANGE

95817-08014-00

—
Out of stock

23

.. WASHER, PLATE

92990-08600-00

1
Out of stock

24

CLIP

90468-16001-00

—
Out of stock

25

LEVER COMP. 1

1XD-E8190-10-00

—
Out of stock

26

ARM, SHIFT 2

1XD-E8169-00-00

—
Out of stock

27

CIRCLIP(53L)

99001-06600-00

—
Out of stock

28

SHAFT, SHIFT

1HP-E8125-00-00

—
Out of stock

29

SPRING, RETURN

1HP-E8196-00-00

—
Out of stock

30

WASHER, PLATE

90201-06036-00

1
Out of stock

31

BOLT, FLANGE

95817-06016-00

—
Out of stock

32

KNOB, SHIFT LEVER

28P-18174-00-00

—
Out of stock

33

RIVET(81E)

90269-05055-00

—
Out of stock

34

GUIDE, SHIFT

1XD-E8172-00-00

1
Out of stock

35

BOLT

90109-06172-00

—
Out of stock

36

COVER, DUST

1HP-E8154-01-00

—
Out of stock

37

BRACKET, SHIFTER

1XD-18431-00-00

—
Out of stock

38

BOLT, FLANGE

95022-06012-00

—
Out of stock

39

PLATE, SHIFT ARM

1XD-E811A-00-00

—
Out of stock

40

BOLT, FLANGE

95817-06012-00

—
Out of stock

41

BOLT, FLANGE

90105-06831-00

—
Out of stock
