- Viking (YXM70VDHHH)
Electrical 1

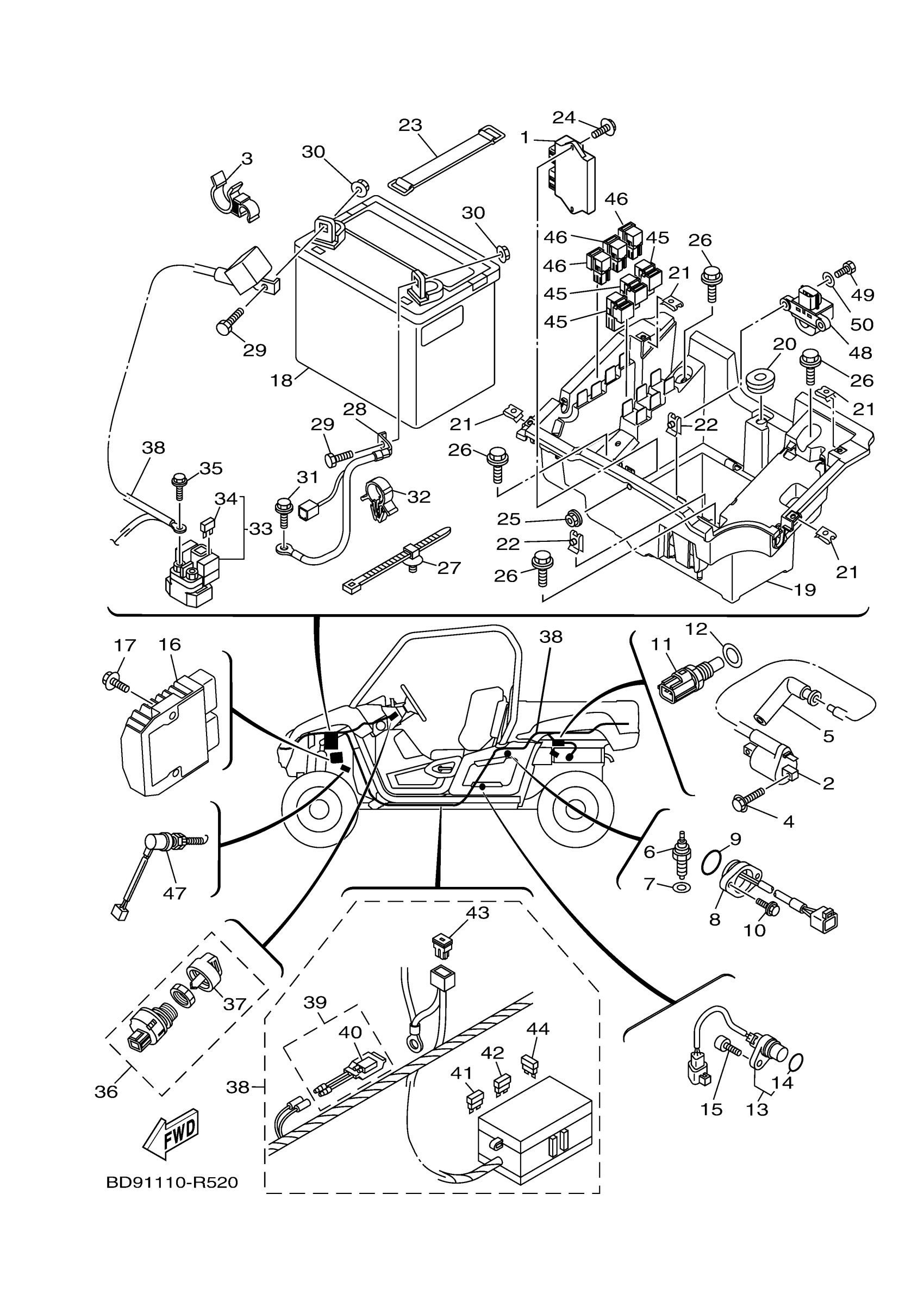

2017 Yamaha Viking (YXM70VDHHH) Electrical 1 Diagram
Find the part on the Electrical 1 diagram for your 2017 Yamaha Viking (YXM70VDHHH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
2
IGNITION COIL ASSY
5YU-H2310-14-00
—
Out of stock
18
11-U1LD GS BATTERY
11U-1LD00-00-00
1
Out of stock
28
WIRE, MINUS LEAD
1XD-H2116-00-00
1
Out of stock
50
WASHER, PLAIN (646)
92990-05600-00
—
Out of stock
More Electrical diagrams
