2017 Yamaha Wolverine Eps (YXE70WPBHL) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2017 Yamaha Wolverine Eps (YXE70WPBHL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

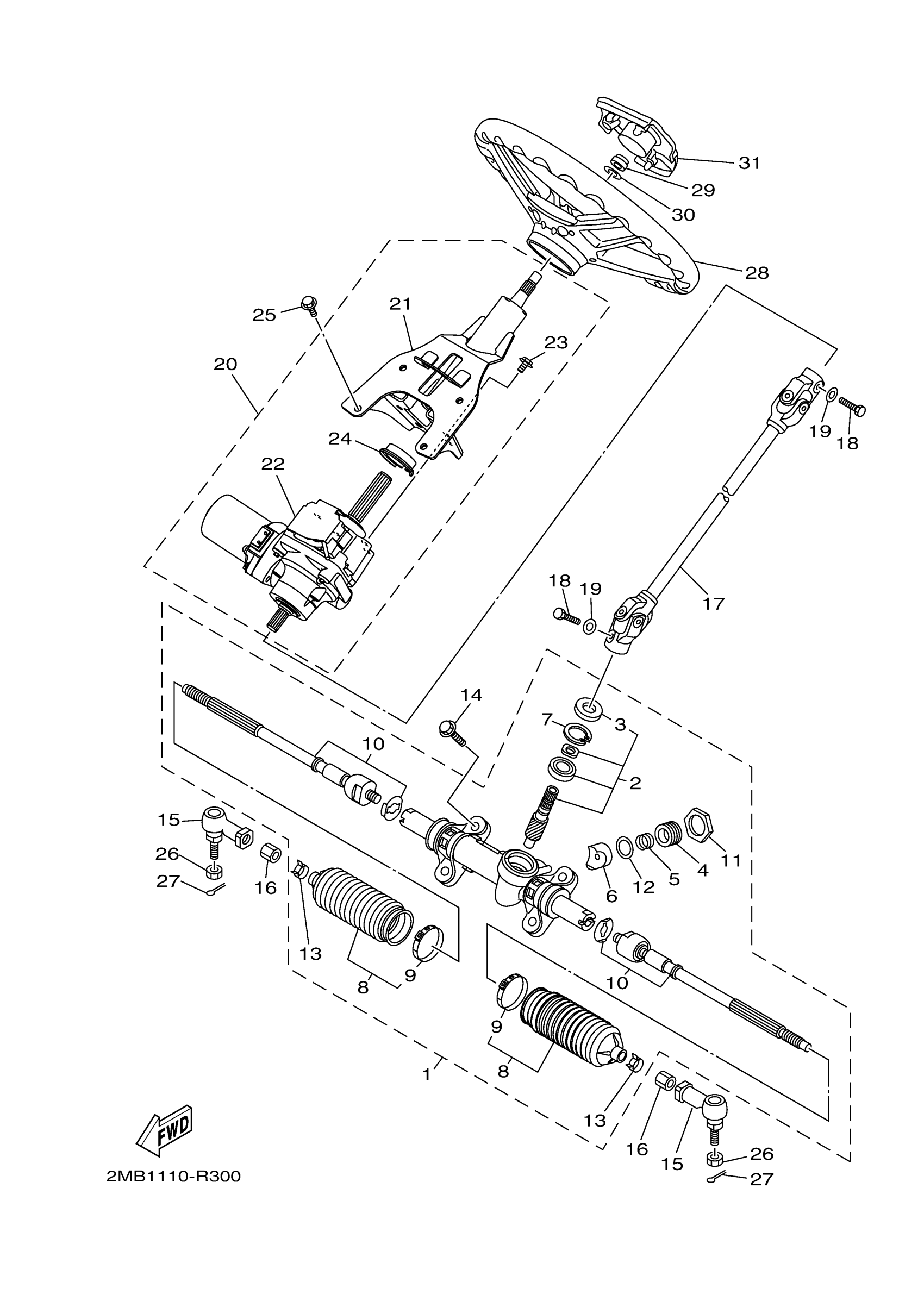

2017 Yamaha Wolverine Eps (YXE70WPBHL) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING ASSY

1XD-F3400-02-00

—
Out of stock

2

STEERING PINION SET

1XD-F38G0-00-00

1
Out of stock

3

SEAL

1XD-F3844-00-00

1
Out of stock

4

COVER,ADJUST

1XD-F387G-00-00

—
Out of stock

5

SPRING,PRESSURE

1XD-F387K-00-00

—
Out of stock

6

PAD,PRESSURE

1XD-F387F-00-00

—
Out of stock

7

RING,STOPPER

1XD-F387J-00-00

—
Out of stock

8

SEAL 1 W/ BAND SET OF 2

1XD-F1208-00-00

—
Out of stock

9

BAND

1XD-F3489-00-00

1
Out of stock

10

RACK END SET

1XD-F38H0-00-00

—
Out of stock

11

LOCK ASSY

1XD-F178K-00-00

—
Out of stock

12

WASHER

1XD-F3165-00-00

1
Out of stock

13

CLIP

1XD-F3447-00-00

1
Out of stock

14

BOLT, FLANGE

95022-10030-00

1
Out of stock

15

JOINT, UNIVERSAL 1

5B4-23841-00-00

1
Out of stock

16

NUT 1

2PG-F3833-00-00

—
Out of stock

17

STEERING SHAFT ASS

2MB-F3840-01-00

—
Out of stock

18

BOLT, SOCKET

91317-08025-00

—
Out of stock

19

WASHER, PLATE(3XP)

90201-083P5-00

—
Out of stock

20

STEERING COLUMN AS

2MB-23810-00-00

—
Out of stock

21

COLUMN, STEERING 2

2MB-23813-00-00

—
Out of stock

22

STEERING COLUMN AS

2HC-23810-06-00

—
Out of stock

23

BOLT, FLANGE

95812-08020-00

—
Out of stock

24

COVER, DUST

2MB-2384L-00-00

—
Out of stock

25

BOLT, FLANGE

95812-08020-00

—
Out of stock

26

NUT, CASTLE

90171-12001-00

—
Out of stock

27

PIN, COTTER

91490-20025-00

—
Out of stock

28

STEERING WHEEL KIT

2HC-F3838-09-00

—
Out of stock

29

NUT, SELF-LOCKING

90185-12008-00

—
Out of stock

30

YBS66-12 WASHER,PLAIN

92990-12200-00

—
Out of stock

31

COVER, STEERING

1XD-F3818-00-00

—
Out of stock
