2017 Yamaha Wolverine Eps Hunter (YXE70WPBHH) Intake Diagram

← All diagrams

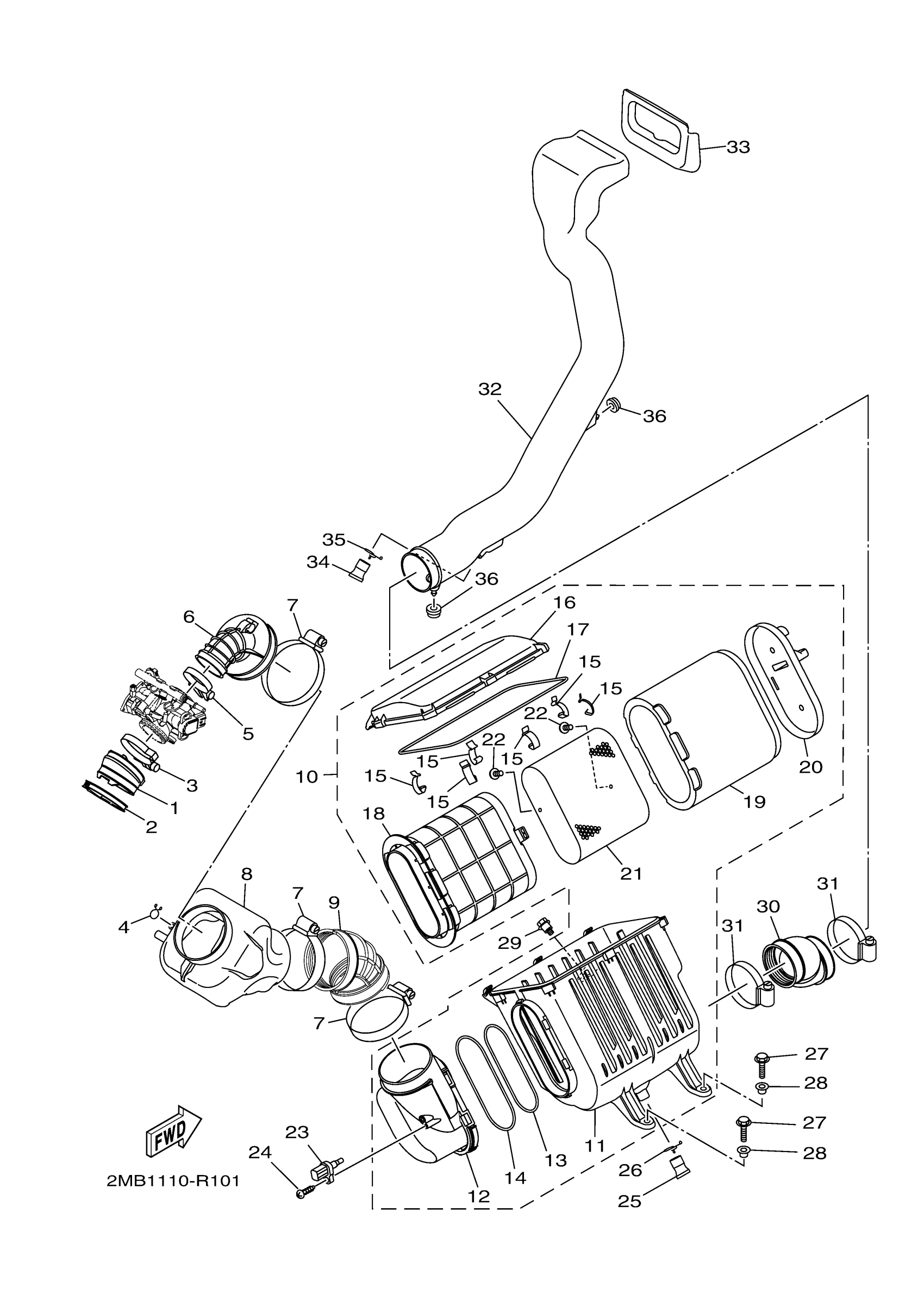

Find the part on the Intake diagram for your 2017 Yamaha Wolverine Eps Hunter (YXE70WPBHH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Wolverine Eps Hunter (YXE70WPBHH) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

2MB-E3586-00-00

1
Out of stock

2

CLAMP, HOSE 2

2MB-E1388-00-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-72004-00

1
Out of stock

4

CLIP

90467-16181-00

1
Out of stock

5

HOSE CLAMP ASSY

90450-62006-00

1
Out of stock

6

JOINT, AIR CLEANER

1XD-E4453-00-00

1
Out of stock

7

HOSE CLAMP ASSY

90450-99004-00

1
Out of stock

8

SILENCER,INTAKE 1

1XD-E4431-02-00

1
Out of stock

9

JOINT, AIR CLEANER

1XD-E4463-00-00

1
Out of stock

10

AIR CLEANER ASY.1

1XD-E4410-02-00

1
Out of stock

11

CASE, AIR CLEANER

1XD-E4411-01-00

1
Out of stock

12

GUIDE

1XD-E4458-00-00

1
Out of stock

13

. SEAL

1XD-E4462-01-00

1
Out of stock

14

. SEAL

1XD-E4467-00-00

1
Out of stock

15

CLIP, CAP FITTING

3B4-14424-00-00

1
Out of stock

16

CAP, CLEANER CASE

1XD-E4412-01-00

—
Out of stock

17

SEAL

1XD-E4452-00-00

—
Out of stock

18

PLATE, ELEMENT

1XD-E4472-00-00

—
Out of stock

19

ELEMENT, AIR CLEAN

1XD-E4451-00-00

—
Out of stock

20

COVER 1

1XD-E4417-00-00

—
Out of stock

21

NET 2

1XD-E441B-00-00

—
Out of stock

22

SCREW

1XD-E4429-00-00

—
Out of stock

23

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

—
Out of stock

24

SCREW, PANHEAD TAPPING

97702-50520-00

—
Out of stock

25

SEAL

59V-14457-00-00

—
Out of stock

26

CLIP

90467-220A1-00

—
Out of stock

27

BOLT, FLANGE

90105-06833-00

—
Out of stock

28

COLLAR 8111266500

90387-07037-00

—
Out of stock

29

BOLT

90109-06262-00

—
Out of stock

30

SEAL

2MB-E4476-00-00

1
Out of stock

31

HOSE CLAMP ASSY

90450-94001-00

1
Out of stock

32

DUCT

2PG-E443A-01-00

—
Out of stock

33

GASKET, DUCT

2MB-F839U-00-00

1
Out of stock

34

SEAL

59V-14457-00-00

—
Out of stock

35

CLIP

90467-220A1-00

—
Out of stock

36

GROMMET(4FU)

90480-13567-00

—
Out of stock
