2017 Yamaha Wolverine Eps (YXE70WPBHG) Headlight Diagram

← All diagrams

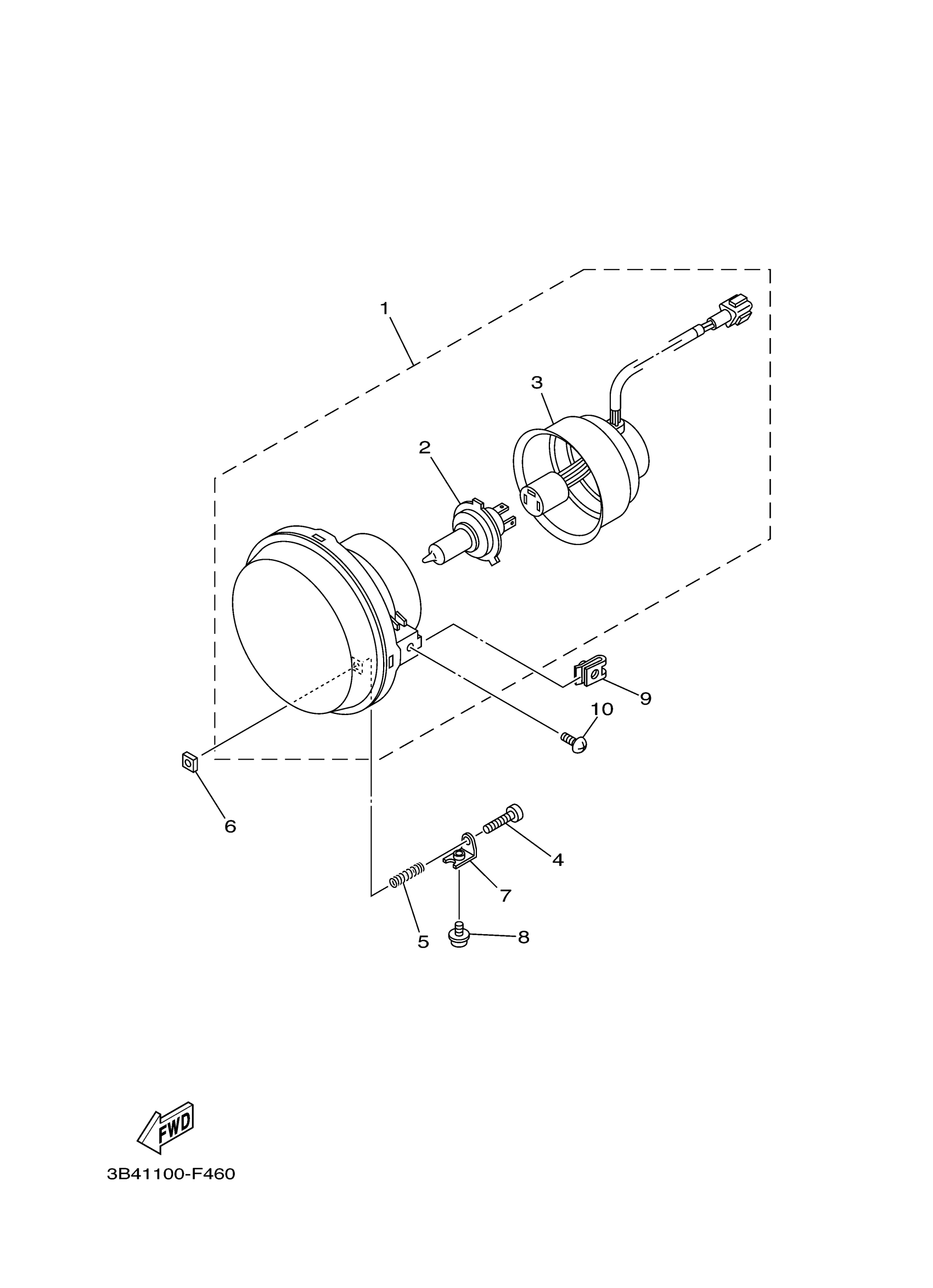

Find the part on the Headlight diagram for your 2017 Yamaha Wolverine Eps (YXE70WPBHG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Wolverine Eps (YXE70WPBHG) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSY

28P-84300-00-00

1
Out of stock

2

BULB, HEADLIGHT (1

5ST-H4314-10-00

1
Out of stock

3

SOCKET CORD ASSY 1

3B4-84340-00-00

1
Out of stock

4

SCREW, PAN HEAD

98502-03530-00

1
Out of stock

5

SPRING, COMPRESSION (25G)

90501-05764-00

1
Out of stock

6

NUT, ADJUSTING

2GU-84334-00-00

1
Out of stock

7

BRACKET

5GH-84703-10-00

1
Out of stock

8

SCREW, WITH WASHER

90159-05044-00

1
Out of stock

9

NUT, SPRING

90183-05008-00

1
Out of stock

10

SCREW, BINDING

90154-05021-00

1
Out of stock
