2017 Yamaha Wolverine Hunter (YXE70WDBHH) Crankcase Diagram

← All diagrams

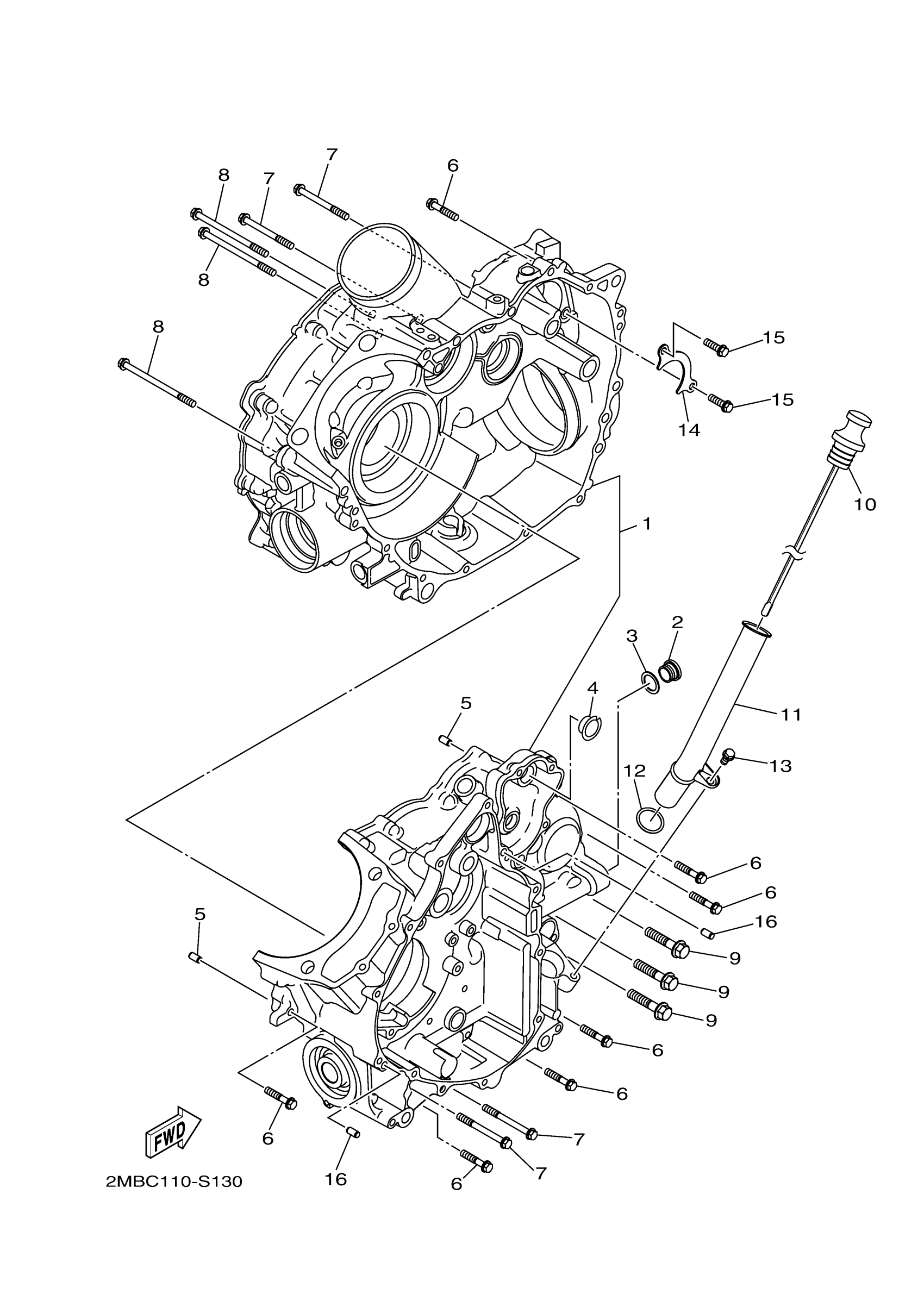

Find the part on the Crankcase diagram for your 2017 Yamaha Wolverine Hunter (YXE70WDBHH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Wolverine Hunter (YXE70WDBHH) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

2MB-E5100-01-00

—
Out of stock

2

PLUG, BLIND 1

2MB-E5167-00-00

1
Out of stock

3

GASKET, BLIND PLUG

2MB-E5175-00-00

1
Out of stock

4

SPACER, CAM SHAFT

3B4-18581-00-00

1
Out of stock

5

PIN, DOWEL

2MB-E5184-00-00

1
Out of stock

6

BOLT 1

2MB-E5481-50-00

—
Out of stock

7

BOLT 1

2MB-E5481-C0-00

1
Out of stock

8

BOLT 1

2MB-E5481-90-00

1
Out of stock

9

BOLT

2MB-E2623-00-00

—
Out of stock

10

PLUG, OIL LEVEL

2MB-E5362-01-00

1
Out of stock

11

PIPE, OIL

2MB-E5112-00-00

—
Out of stock

12

O-RING

2MB-E2439-00-00

1
Out of stock

13

BOLT 1

2MB-E5481-60-00

1
Out of stock

14

PLATE, BEARING COV

2MB-E5388-00-00

1
Out of stock

15

BOLT 1

2MB-E5481-10-00

1
Out of stock

16

PIN, DOWEL

2MB-E5184-00-00

1
Out of stock
