2017 Yamaha Wolverine (YXE70WDBHG) Intake Diagram

← All diagrams

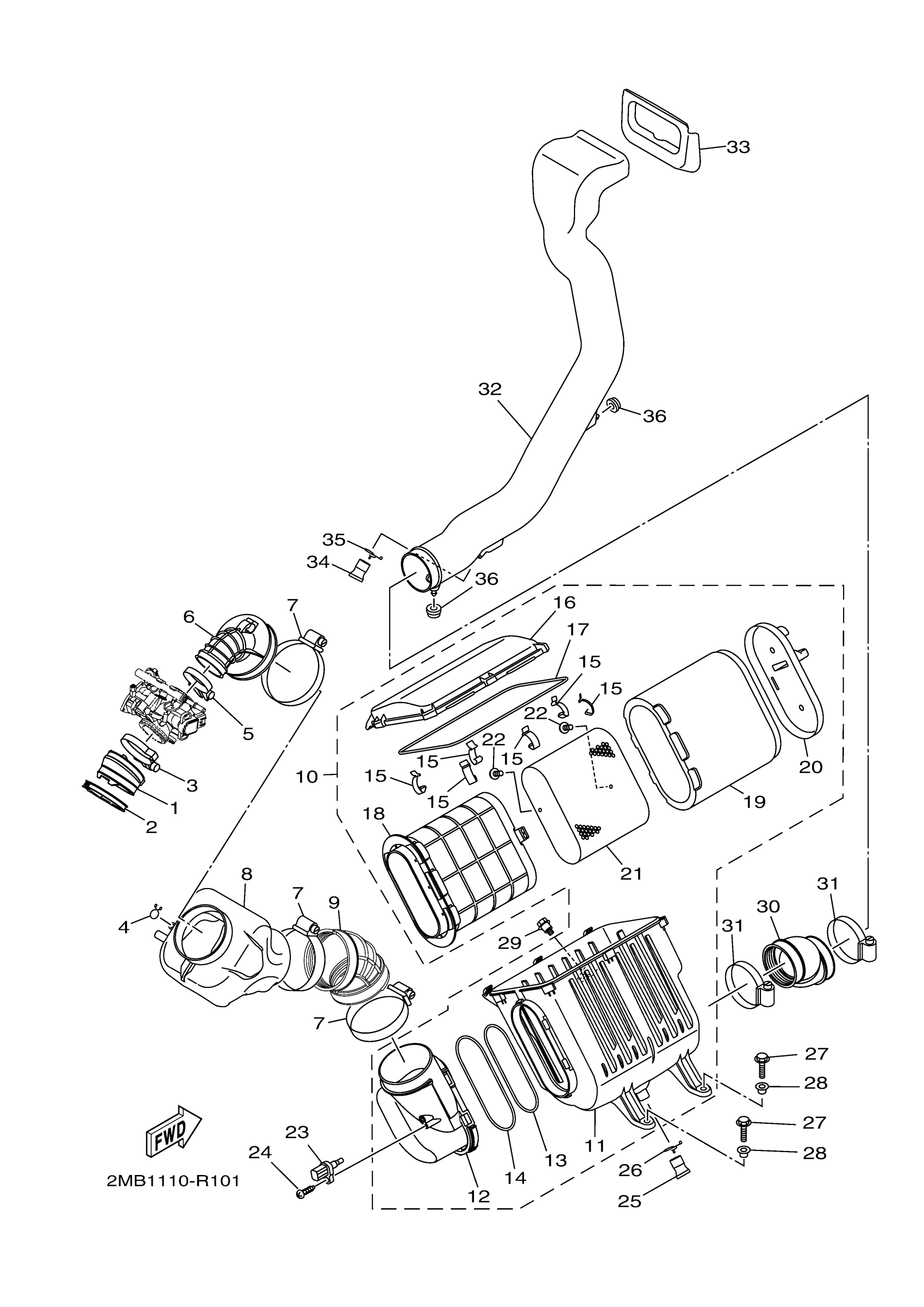

Find the part on the Intake diagram for your 2017 Yamaha Wolverine (YXE70WDBHG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Wolverine (YXE70WDBHG) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

2MB-E3586-00-00

1

$33.42

In stock

2

CLAMP, HOSE 2

2MB-E1388-00-00

1

$17.15

In stock

3

HOSE CLAMP ASSY

90450-72004-00

1

$17.09

In stock

4

CLIP

90467-16181-00

1

$5.32

In stock

5

HOSE CLAMP ASSY

90450-62006-00

1

$10.77

In stock

6

JOINT, AIR CLEANER

1XD-E4453-00-00

1

$25.91

In stock

7

HOSE CLAMP ASSY

90450-99004-00

1

$11.49

In stock

8

SILENCER,INTAKE 1

1XD-E4431-02-00

1

$22.63

In stock

9

JOINT, AIR CLEANER

1XD-E4463-00-00

1

$21.32

In stock

10

AIR CLEANER ASY.1

1XD-E4410-02-00

1

$195.78

In stock

11

CASE, AIR CLEANER

1XD-E4411-01-00

1

$68.62

In stock

12

GUIDE

1XD-E4458-00-00

1

$24.69

In stock

13

. SEAL

1XD-E4462-01-00

1
Out of stock

14

. SEAL

1XD-E4467-00-00

1

$8.58

In stock

15

CLIP, CAP FITTING

3B4-14424-00-00

1

$6.72

In stock

16

CAP, CLEANER CASE

1XD-E4412-01-00

—

$40.52

In stock

17

SEAL

1XD-E4452-00-00

—

$9.10

In stock

18

PLATE, ELEMENT

1XD-E4472-00-00

—

$26.13

In stock

19

ELEMENT, AIR CLEAN

1XD-E4451-00-00

—

$53.85

In stock

20

COVER 1

1XD-E4417-00-00

—

$20.99

In stock

21

NET 2

1XD-E441B-00-00

—

$33.49

In stock

22

SCREW

1XD-E4429-00-00

—

$1.78

In stock

23

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

—

$49.83

In stock

24

SCREW, PANHEAD TAPPING

97702-50520-00

—

$0.28

In stock

25

SEAL

59V-14457-00-00

—
Out of stock

26

CLIP

90467-220A1-00

—

$5.14

In stock

27

BOLT, FLANGE

90105-06833-00

—

$1.77

In stock

28

COLLAR 8111266500

90387-07037-00

—
Out of stock

29

BOLT

90109-06262-00

—

$6.42

In stock

30

SEAL

2MB-E4476-00-00

1

$11.45

In stock

31

HOSE CLAMP ASSY

90450-94001-00

1

$14.49

In stock

32

DUCT

2PG-E443A-01-00

—

$251.00

In stock

33

GASKET, DUCT

2MB-F839U-00-00

1
Out of stock

34

SEAL

59V-14457-00-00

—
Out of stock

35

CLIP

90467-220A1-00

—

$5.14

In stock

36

GROMMET(4FU)

90480-13567-00

—

$3.88

In stock
