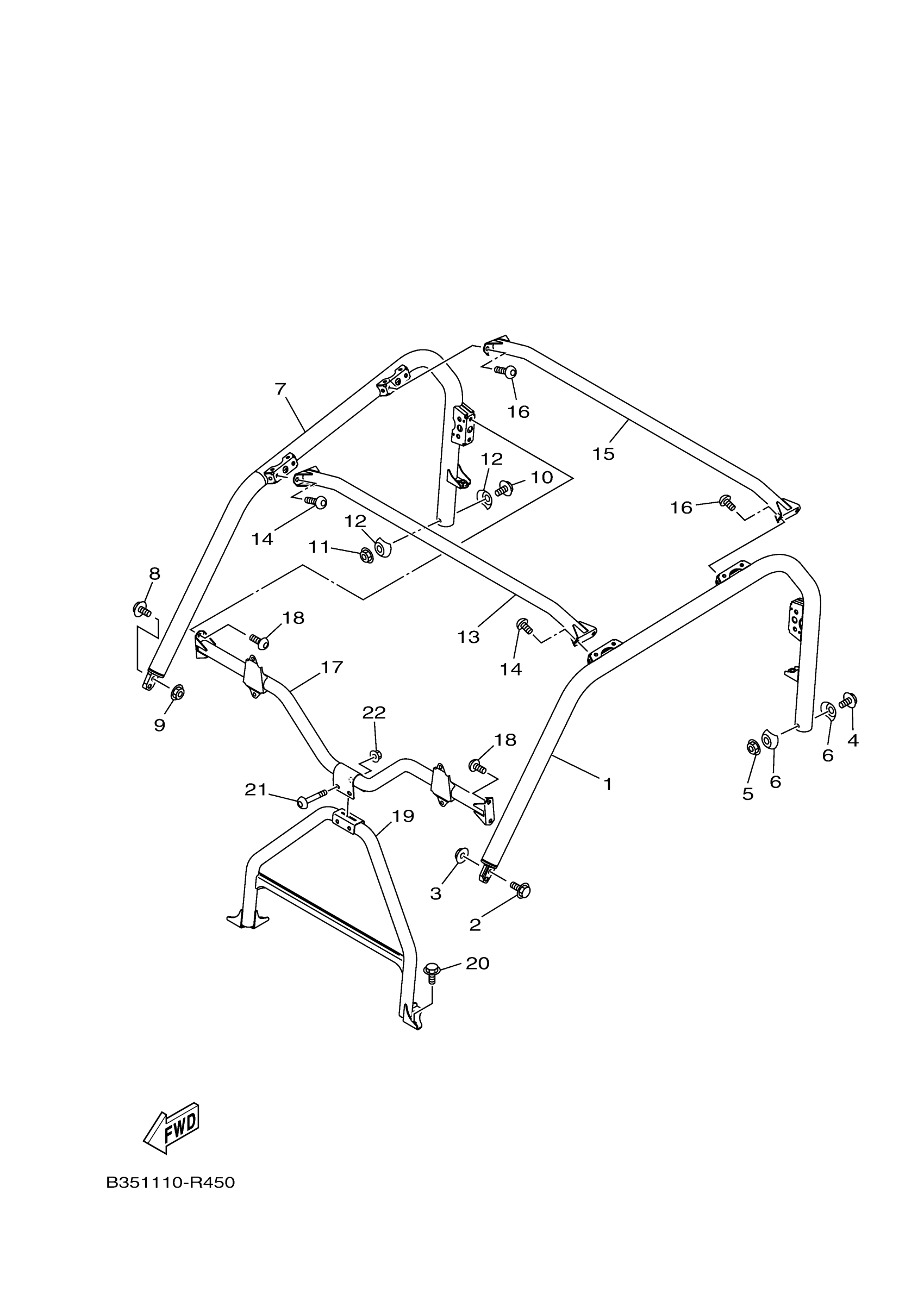

Yamaha YXE70WDBHG (WOLVERINE) B354 2017 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

1XD-K831A-00-00

$251.27

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

3

NUT, SELF-LOCKING

90185-10011-00

$3.76

4

BOLT, BUTTON HEAD

92012-10070-00

$3.87

5

NUT, SELF-LOCKING

90185-10011-00

$3.76

6

WASHER 2

1XD-K7526-00-00

$3.92

7

SUPPORT, ROOF 4

1XD-K831E-00-00

$226.07

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

9

NUT, SELF-LOCKING

90185-10011-00

$3.76

10

BOLT, BUTTON HEAD

92012-10070-00

$3.87

11

NUT, SELF-LOCKING

90185-10011-00

$3.76

12

WASHER 2

1XD-K7526-00-00

$3.92

13

MEMBER, ROOF FRAME

2MB-K8392-00-00

Unavailable

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

15

MEMBER, ROOF FRAME

2MB-K8393-00-00

$69.12

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

17

ROOF SUPPORT ASSY

B35-K830A-00-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

19

ROOF SUPPORT ASSY 2

2MB-K830B-00-00

$116.48

20

BOLT, FLANGE

95812-10016-00

Unavailable

21

BOLT, BUTTON HEAD

92012-10060-00

Unavailable

22

NUT, SELF-LOCKING

90185-10011-00

$3.76
