2016 Yamaha Wolverine Hunter (YXE70WDBGH) Guard 2 Diagram

← All diagrams

Find the part on the Guard 2 diagram for your 2016 Yamaha Wolverine Hunter (YXE70WDBGH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

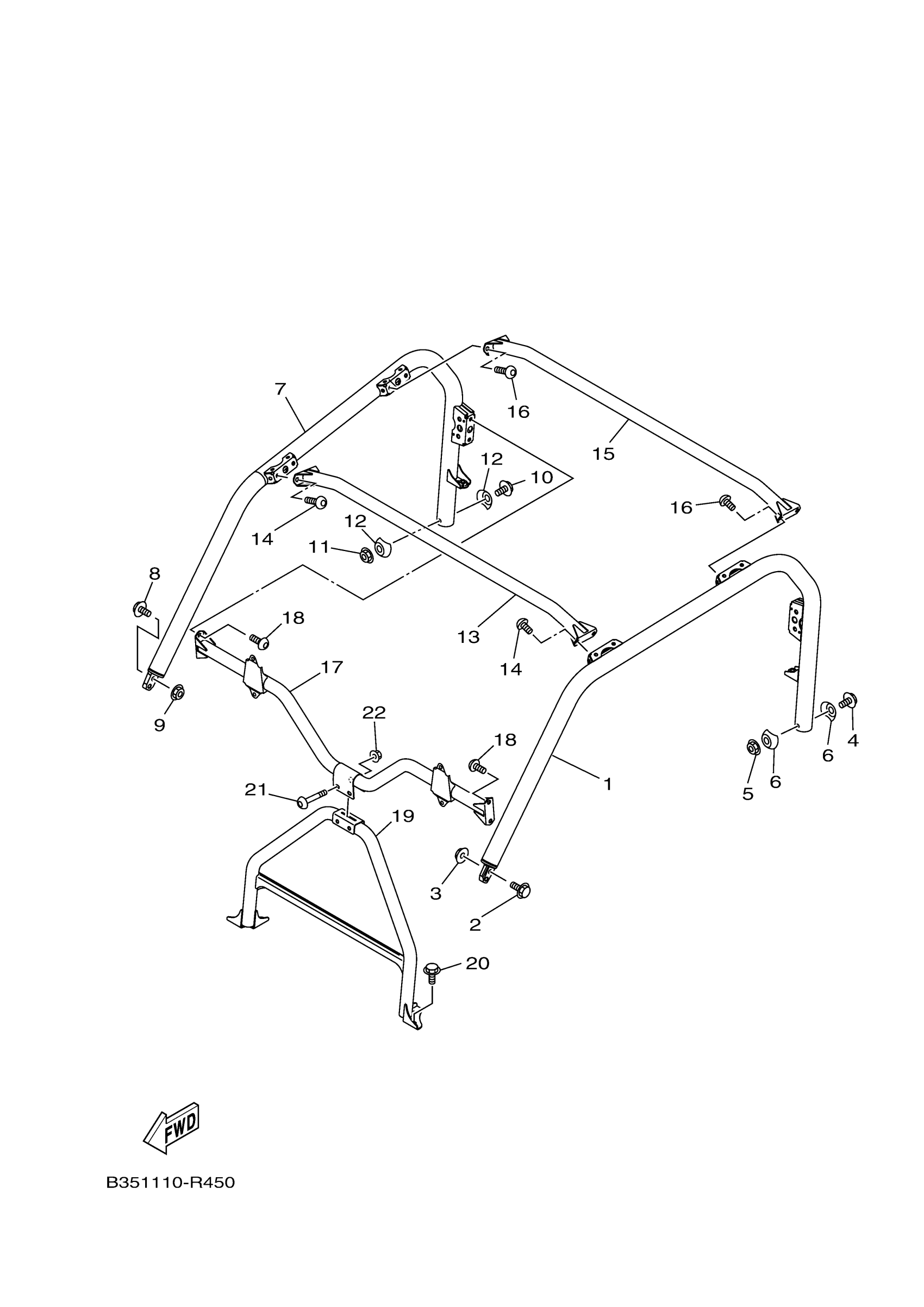

2016 Yamaha Wolverine Hunter (YXE70WDBGH) Guard 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SUPPORT, ROOF 3

1XD-K831A-00-00

1
Out of stock

2

BOLT, FLANGE (8V9)

95812-10045-00

1
Out of stock

3

NUT, SELF-LOCKING

90185-10011-00

1
Out of stock

4

BOLT, BUTTON HEAD

92012-10070-00

1
Out of stock

5

NUT, SELF-LOCKING

90185-10011-00

1
Out of stock

6

WASHER 2

1XD-K7526-00-00

1
Out of stock

7

SUPPORT, ROOF 4

1XD-K831E-00-00

1
Out of stock

8

BOLT, FLANGE (8V9)

95812-10045-00

1
Out of stock

9

NUT, SELF-LOCKING

90185-10011-00

1
Out of stock

10

BOLT, BUTTON HEAD

92012-10070-00

1
Out of stock

11

NUT, SELF-LOCKING

90185-10011-00

1
Out of stock

12

WASHER 2

1XD-K7526-00-00

1
Out of stock

13

MEMBER, ROOF FRAME

2MB-K8392-00-00

1
Out of stock

14

BOLT,HEX. SOCKET B

90111-10802-00

1
Out of stock

15

MEMBER, ROOF FRAME

2MB-K8393-00-00

1
Out of stock

16

BOLT,HEX. SOCKET B

90111-10802-00

1
Out of stock

17

ROOF SUPPORT ASSY

B35-K830A-00-00

—
Out of stock

18

BOLT,HEX. SOCKET B

90111-10802-00

1
Out of stock

19

ROOF SUPPORT ASSY 2

2MB-K830B-00-00

1
Out of stock

20

BOLT, FLANGE

95812-10016-00

—
Out of stock

21

BOLT, BUTTON HEAD

92012-10060-00

—
Out of stock

22

NUT, SELF-LOCKING

90185-10011-00

1
Out of stock
