2016 Yamaha Wolverine Hunter (YXE70WDBGH) Front Differential Diagram

← All diagrams

Find the part on the Front Differential diagram for your 2016 Yamaha Wolverine Hunter (YXE70WDBGH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

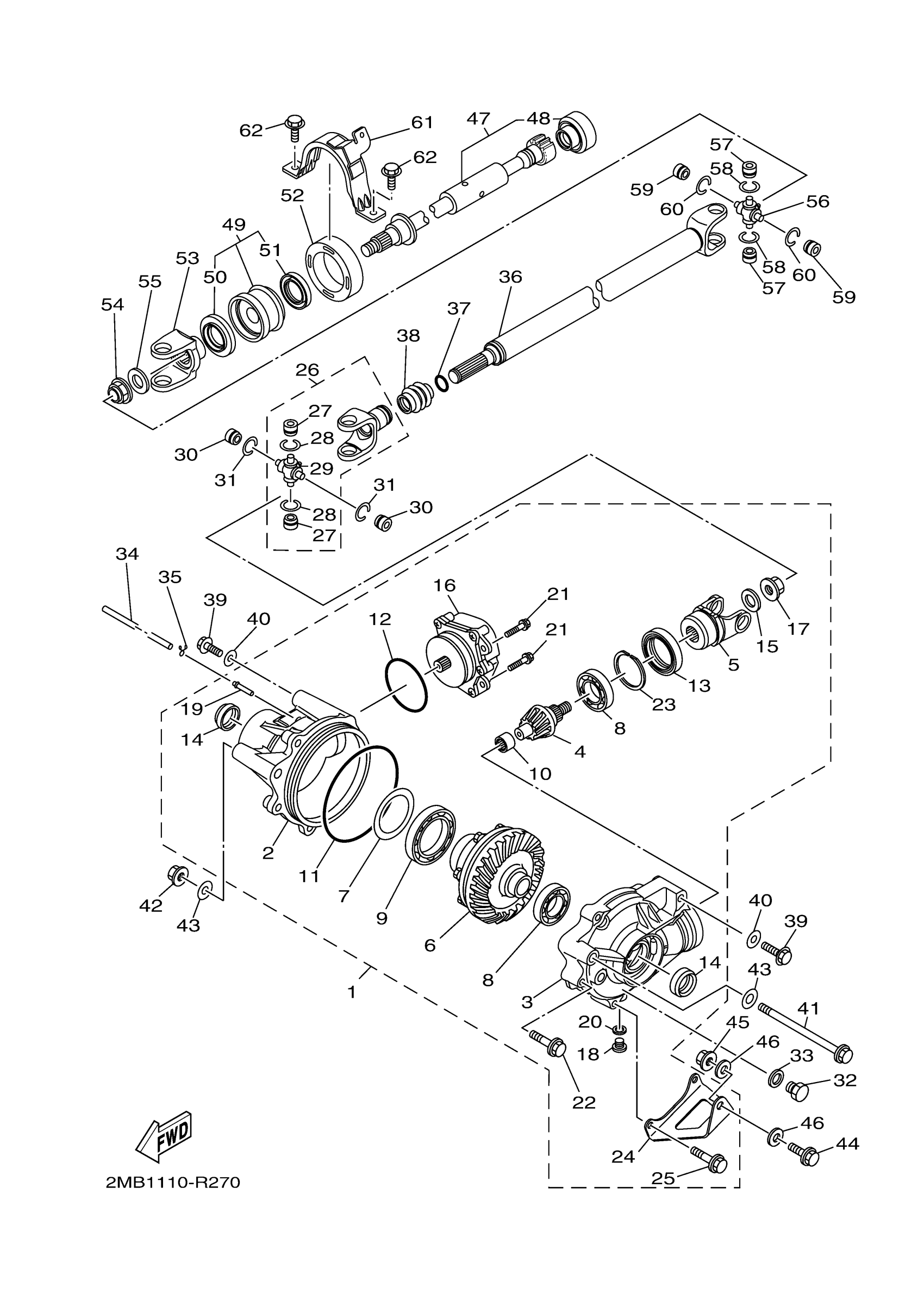

2016 Yamaha Wolverine Hunter (YXE70WDBGH) Front Differential Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT AXLE GEAR CASE COMP.

1XD-46160-01-00

1
Out of stock

2

HOUSING, BEARING 2

1XD-46162-00-00

1
Out of stock

3

HOUSING, SHAFT DRIVE 2

1XD-46161-00-00

—
Out of stock

4

PINION, DRIVE 2

1XD-46141-00-00

—
Out of stock

5

YOKE, JOINT 2

4S1-46146-01-00

—
Out of stock

6

LIMITED SLIP DIFF. ASSY

1XD-46470-01-00

1
Out of stock

7

SHIM, RING GEAR (0.1T)

3B4-46117-00-00

1
Out of stock

7

SHIM, RING GEAR (0.2T)

3B4-46117-10-00

—
Out of stock

7

SHIM, RING GEAR (0.3T)

3B4-46117-20-00

—
Out of stock

7

SHIM, RING GEAR (0.4T)

3B4-46117-30-00

—
Out of stock

8

BEARING(2HR)

93306-00612-00

1
Out of stock

9

BEARING 1

3B4-46164-00-00

1
Out of stock

10

BEARING 3

3B4-46166-00-00

1
Out of stock

11

O-RING 1

3B4-46134-00-00

1
Out of stock

12

O-RING 2

3B4-46135-00-00

1
Out of stock

13

OIL SEAL

93105-46001-00

—
Out of stock

14

SEAL,OIL 1

3B4-46163-00-00

—
Out of stock

15

WASHER

3B4-47359-00-00

—
Out of stock

16

SERVO MOTOR COMP

1HP-4616A-00-00

—
Out of stock

17

NUT 1

4WV-46145-11-00

—
Out of stock

18

PLUG, STRIGHT SCREW(5GH1)

90340-10001-00

—
Out of stock

19

TUBE

5GH-46293-00-00

—
Out of stock

20

GASKET

90430-10003-00

—
Out of stock

21

BOLT, FLANGE

95812-06014-00

—
Out of stock

22

BOLT, FLANGE

95817-08040-00

—
Out of stock

23

RING,HOLE SNAP 1

3B4-46142-00-00

—
Out of stock

24

PLATE, COVER

1XD-46114-00-00

—
Out of stock

25

BOLT, FLANGE

95817-08050-00

—
Out of stock

26

CROSS JOINT COMP. 2

2HC-46107-00-00

—
Out of stock

27

BEARING

93399-99948-00

—
Out of stock

28

CIRCLIP (4X7)

93440-20088-00

—
Out of stock

29

SPIDER

5GT-46187-00-00

—
Out of stock

30

BEARING

93399-99948-00

—
Out of stock

31

CIRCLIP (4X7)

93440-20088-00

—
Out of stock

32

PLUG, STRAIGHT(2E9)

90340-14029-00

—
Out of stock

33

GASKET

214-11198-01-00

—
Out of stock

34

HOSE

90445-07809-00

—
Out of stock

35

CLIP (1J7)

90467-07029-00

—
Out of stock

36

DRIVE SHAFT COMP.

2MB-46109-00-00

—
Out of stock

37

O-RING

93210-16M69-00

—
Out of stock

38

SEAL 1

5GT-46136-00-00

—
Out of stock

39

BOLT, FLANGE

90105-10255-00

—
Out of stock

40

WASHER, PLATE

90201-10035-00

—
Out of stock

41

BOLT, FLANGE

90105-12066-00

—
Out of stock

42

NUT, SELF-LOCKING

90185-12002-00

—
Out of stock

43

YBS66-12 WASHER,PLAIN

92990-12200-00

—
Out of stock

44

. BOLT, FLANGE

95812-10025-00

1
Out of stock

45

NUT, SELF-LOCKING

90185-10011-00

—
Out of stock

46

WASHER, PLATE

90201-10035-00

—
Out of stock

47

SHAFT, DRIVE 2

1XD-46173-00-00

—
Out of stock

48

SEAL 2

5KM-46137-00-00

—
Out of stock

49

BEARING ASSY

2MB-46106-00-00

—
Out of stock

50

OIL SEAL

93102-30010-00

—
Out of stock

51

OIL SEAL(76K)

93102-30339-00

—
Out of stock

52

RUBBER SHAFT COUPLING

1XD-4581J-00-00

—
Out of stock

53

YOKE, JOINT

5B4-17556-00-00

—
Out of stock

54

NUT

90179-16015-00

—
Out of stock

55

WASHER, PLATE

90201-16021-00

—
Out of stock

56

SPIDER

5GT-46187-00-00

—
Out of stock

57

BEARING

93399-99948-00

—
Out of stock

58

CIRCLIP (4X7)

93440-20088-00

—
Out of stock

59

BEARING

93399-99948-00

—
Out of stock

60

CIRCLIP (4X7)

93440-20088-00

—
Out of stock

61

COVER 1

1XD-4613F-00-00

—
Out of stock

62

BOLT, FLANGE

95812-08020-00

—
Out of stock
