2016 Yamaha Wolverine Hunter (YXE70WDBGH) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2016 Yamaha Wolverine Hunter (YXE70WDBGH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

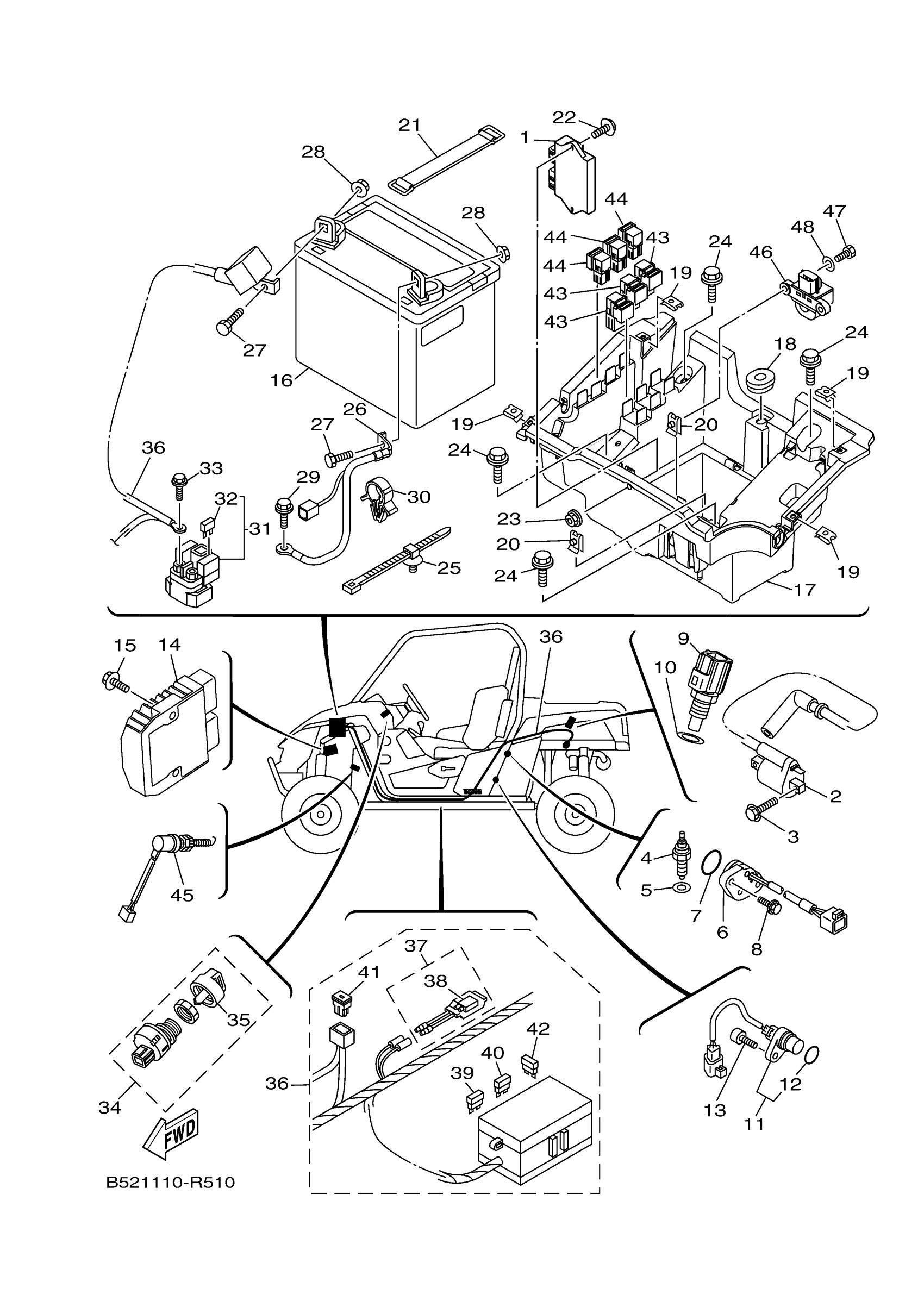

2016 Yamaha Wolverine Hunter (YXE70WDBGH) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE CONTROL UNI

2MB-8591A-00-00

—
Out of stock

2

IGNITION COIL ASSY

2MB-82320-02-00

—
Out of stock

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

1
Out of stock

5

GASKET

2MB-E5384-00-00

1
Out of stock

6

NEUTRAL SWITCH ASS

2MB-H2540-10-00

1
Out of stock

7

O-RING

2MB-E4D97-00-00

1
Out of stock

8

BOLT

2MB-E5768-10-00

—
Out of stock

9

THERMOSENSOR ASSY

2MB-H5790-00-00

1
Out of stock

10

GASKET

2MB-E1195-00-00

1
Out of stock

11

SENSOR, SPEED

2MB-H3755-00-00

1
Out of stock

12

O-RING

4D9-81168-00-00

1
Out of stock

13

BOLT 1

2MB-E5481-10-00

1
Out of stock

14

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

1
Out of stock

15

BOLT, FLANGE

90105-06833-00

1
Out of stock

16

11-U1LD GS BATTERY

11U-1LD00-00-00

1
Out of stock

17

BOX, BATTERY 1

1XD-H212B-00-00

—
Out of stock

18

GROMMET(4DN)

90480-01558-00

—
Out of stock

19

NUT, SPRING

90183-060A6-00

—
Out of stock

20

NUT, SPRING

90183-05008-00

—
Out of stock

21

BAND, BATTERY

22F-82131-00-00

—
Out of stock

22

BOLT, FLANGE

95817-06020-00

—
Out of stock

23

NUT, FLANGE

95702-06500-00

—
Out of stock

24

BOLT, SPECIAL 1

JW1-K6179-01-00

1
Out of stock

25

CLAMP

1NS-F1338-00-00

—
Out of stock

26

WIRE, MINUS LEAD

B52-H2116-00-00

1
Out of stock

27

BOLT(6TD)

97080-08020-00

—
Out of stock

28

NUT

90179-08015-00

—
Out of stock

29

BOLT, FLANGE

95812-06014-00

—
Out of stock

30

CLAMP(3XV)

90464-15157-00

—
Out of stock

31

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

—
Out of stock

32

FUSE (10A)

42X-82151-00-00

—
Out of stock

33

BOLT, FLANGE

95022-06008-00

—
Out of stock

34

MAIN SWITCH ASSY

1XD-H2510-11-00

—
Out of stock

35

CAP, KEY

5UG-H2579-00-00

—
Out of stock

36

WIRE HARNESS ASSY

B52-82590-00-00

—
Out of stock

37

CIRCUIT BREAKER ASSY

5B4-82180-00-00

—
Out of stock

38

THERMO SWITCH ASSY

5B4-82560-00-00

—
Out of stock

39

FUSE (15A)

67F-82151-50-00

1
Out of stock

40

. FUSE (10A)

67F-82151-40-00

1
Out of stock

41

SLOW BLOW FUSE

JR9-82151-00-00

—
Out of stock

42

FUSE (25A-BL)

5JJ-82151-70-00

—
Out of stock

43

RELAY ASSY

5DM-81950-01-00

—
Out of stock

44

RELAY ASSY (8DM-11)

8DM-81950-11-00

—
Out of stock

45

STOP SWITCH ASSY

4KB-82530-11-00

—
Out of stock

46

LEAN ANGLE SENSOR

3B4-82576-00-00

—
Out of stock

47

BOLT(6A1)

97095-05016-00

—
Out of stock

48

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock
