2016 Yamaha Wolverine (YXE70WDBGG) Pedal Wire Diagram

← All diagrams

Find the part on the Pedal Wire diagram for your 2016 Yamaha Wolverine (YXE70WDBGG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

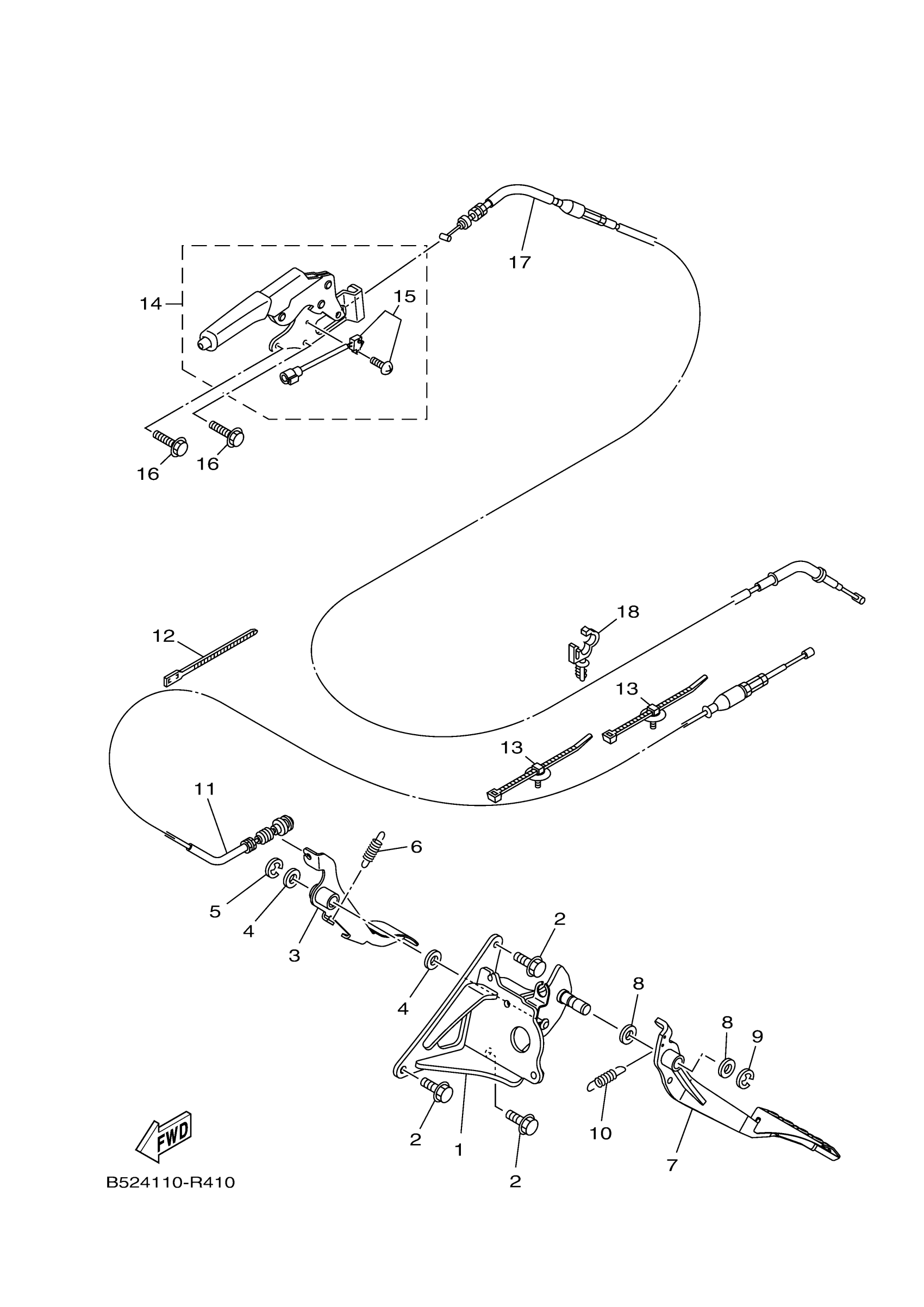

2016 Yamaha Wolverine (YXE70WDBGG) Pedal Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,PEDL SUPRT

1XD-F2548-00-KT

1
Out of stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

3

ACCEL PEDAL ASSY

1XD-F7801-00-00

1
Out of stock

4

WASHER, PLATE

90201-15018-00

1
Out of stock

5

CIRCLIP (122)

93430-12008-00

1
Out of stock

6

SPRING, TENSION (2X4)

90506-20192-00

1
Out of stock

7

PEDAL, BRAKE

1XD-F7200-00-00

1
Out of stock

8

WASHER, PLATE

90201-15018-00

1
Out of stock

9

CIRCLIP (122)

93430-12008-00

1
Out of stock

10

SPRING, TENSION (2X4)

90506-20192-00

1
Out of stock

11

CABLE, THROTTLE 1

2MB-26311-00-00

1
Out of stock

12

CLAMP(JN6)

90464-40825-00

1
Out of stock

13

CLAMP

5B4-F1338-00-00

1
Out of stock

14

PARKING LEVER ASSY

BDW-F5690-00-00

1
Out of stock

15

. SWITCH COMP

5UG-H251S-00-00

1
Out of stock

16

BOLT, FLANGE

95817-06012-00

—
Out of stock

17

WIRE, BRAKE 1

2MB-26341-02-00

—
Out of stock

18

CLAMP

90464-12830-00

—
Out of stock
