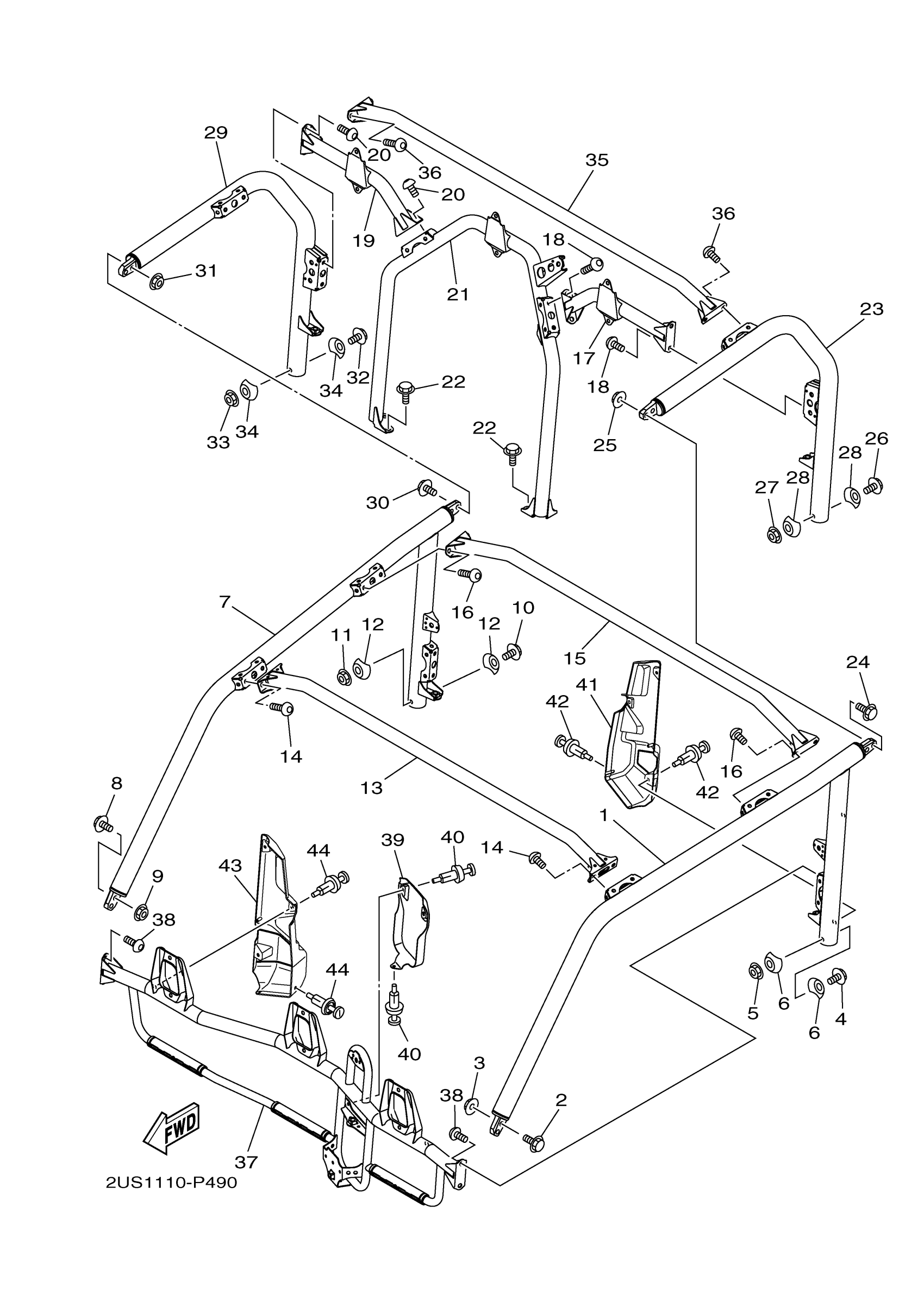

Yamaha YXC700DHFH (VIKING VI HUNTER) 2PG3 2015 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

2PG-K831A-01-00

$177.16

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

3

NUT, SELF-LOCKING

90185-10011-00

$3.76

4

BOLT, BUTTON HEAD

92012-10070-00

$3.87

5

NUT, SELF-LOCKING

90185-10011-00

$3.76

6

WASHER 2

1XD-K7526-00-00

$3.92

7

SUPPORT, ROOF 4

2PG-K831E-01-00

$254.49

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

9

NUT, SELF-LOCKING

90185-10011-00

$3.76

10

BOLT, BUTTON HEAD

92012-10070-00

$3.87

11

NUT, SELF-LOCKING

90185-10011-00

$3.76

12

WASHER 2

1XD-K7526-00-00

$3.92

13

MEMBER, ROOF FRAME

2PG-K8392-00-00

$59.01

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

15

MEMBER, ROOF FRAME

2PG-K8393-00-00

$78.93

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

17

SUNROOF PIPE ASSY

2PG-K830E-00-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

19

SUNROOF PIPE ASSY

2PG-K830F-00-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

21

ROOF SUPPORT ASSY

2PG-K830A-00-00

Unavailable

22

BOLT, FLANGE

95812-10016-00

Unavailable

23

RRAME, SUNROOF 1

2PG-K833M-00-00

$110.72

24

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

25

NUT, SELF-LOCKING

90185-10011-00

$3.76

26

BOLT, BUTTON HEAD

92012-10070-00

$3.87

27

NUT, SELF-LOCKING

90185-10011-00

$3.76

28

WASHER 2

1XD-K7526-00-00

$3.92

29

FRAME, SUNROOF 2

2PG-K833R-00-00

Unavailable

30

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

31

NUT, SELF-LOCKING

90185-10011-00

$3.76

32

BOLT, BUTTON HEAD

92012-10070-00

$3.87

33

NUT, SELF-LOCKING

90185-10011-00

$3.76

34

WASHER 2

1XD-K7526-00-00

$3.92

35

MEMBER, ROOF FRAME 3

2PG-K8394-00-00

$53.13

36

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

37

ROOF SUPPORT ASSY 3

2PG-K830C-00-00

$168.61

38

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

39

COVER, 4

2PG-K8284-02-00

Unavailable

40

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

41

COVER,SD PILLAR LH

2PG-K813F-02-00

Unavailable

42

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

43

COVER,SD PILLAR RH

2PG-K813G-02-00

Unavailable

44

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
