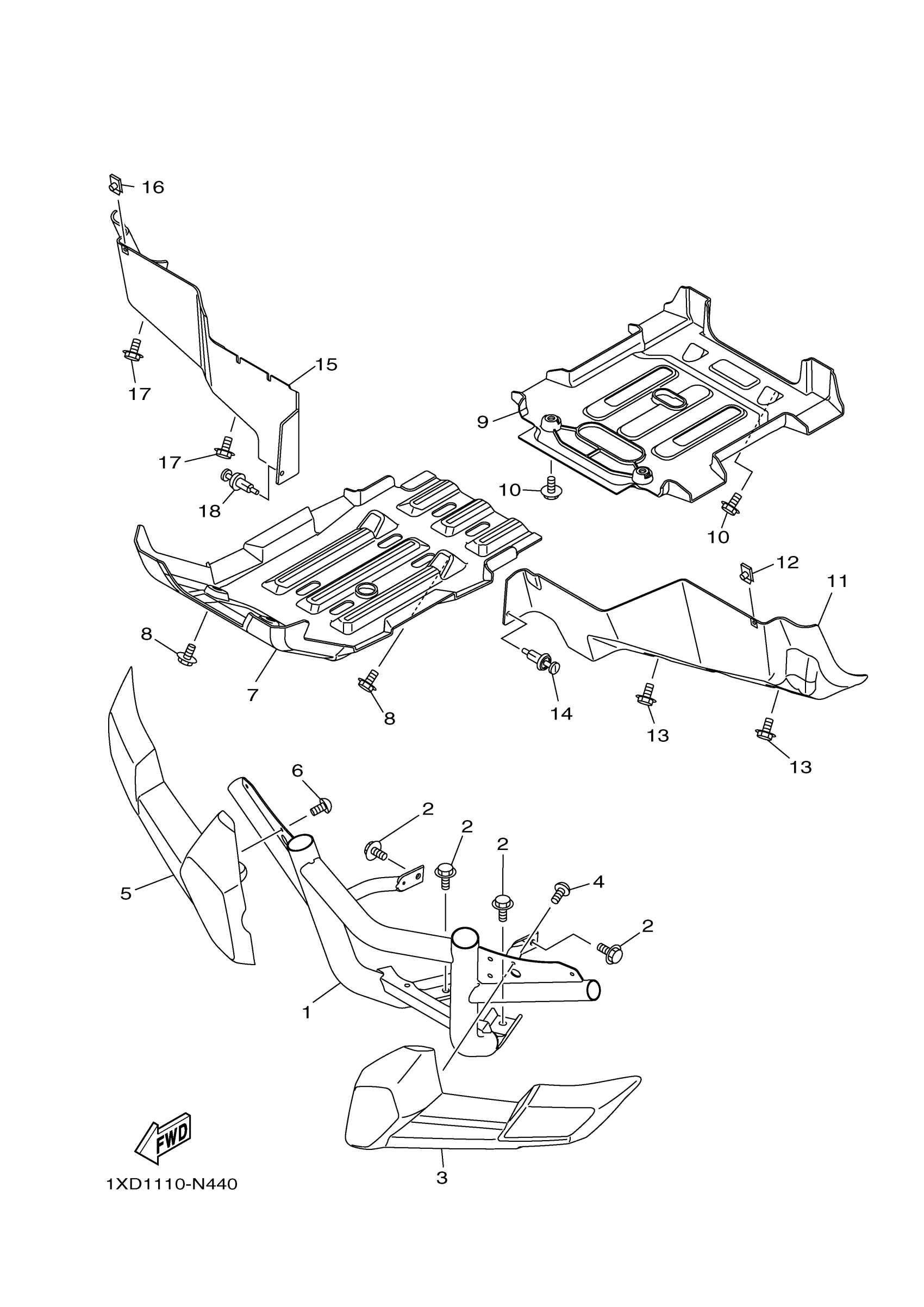

Yamaha YXC700DFR (VIKING VI) 2PG12 2015 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

1XD-F845N-01-00

$220.39

2

BOLT, FLANGE

95812-10016-00

$7.70

3

COVER 1

1XD-F842M-02-00

$39.93

4

SCREW, TAPPING

90167-06800-00

$0.72

5

COVER 2

1XD-F842N-01-00

$39.15

6

SCREW, TAPPING

90167-06800-00

$0.72

7

COVER, LOWER

1XD-F8385-02-00

Unavailable

8

BOLT

90109-06202-00

$2.46

9

COVER, UNDER 2

1XD-F8395-00-00

$112.67

10

BOLT

90109-06202-00

$2.46

11

GUARD 1

1XD-F2361-00-00

$22.96

12

NUT, SPRING

90183-060A6-00

$3.90

13

BOLT

90109-06202-00

$2.46

14

RIVET

90269-06800-00

$1.35

15

GUARD 2

1XD-F2362-00-00

$46.06

16

NUT, SPRING

90183-060A6-00

$3.90

17

BOLT

90109-06202-00

$2.46

18

RIVET

90269-06800-00

$1.35
