Description

Price

1

REAR ARM

1UJ-22110-00-35

Unavailable

2

BUSH

1UJ-22184-00-00

Unavailable

3

BEARING (4X7)

93320-32403-00

$46.99

4

COVER, THRUST 2

4X7-22129-00-00

$22.99

5

WASHER

3YF-22149-00-00

$8.99

5

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

5

WASHER, PLATE

90201-245A0-00

Unavailable

6

SHAFT, PIVOT

4G0-22141-00-00

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

8

SEAL, GUARD

1UJ-22151-00-00

Unavailable

9

BOLT, HEXAGON

97017-06016-00

$8.49

10

WASHER, PLATE 8221447500

90201-06057-00

$5.60

11

COLLAR

90387-06106-00

$7.49

12

CASE, CHAIN

1UJ-22311-00-00

Unavailable

13

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$9.49

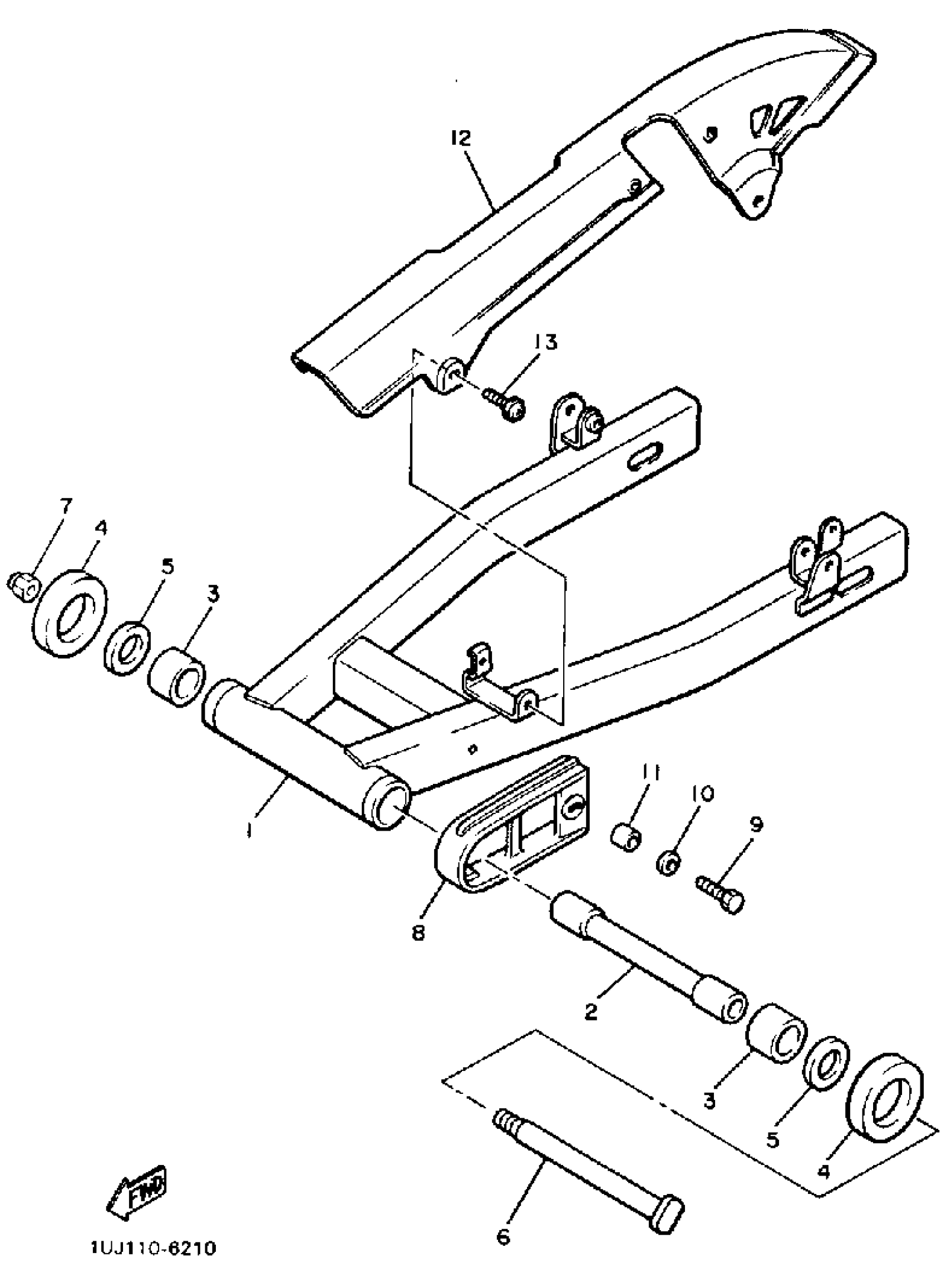

Yamaha YX600TC (RADIAN CA) 1987 SWING ARM Diagram

REAR ARM

BUSH

BEARING (4X7)

COVER, THRUST 2

WASHER

WASHER, PLATE(2VM)

WASHER, PLATE

SHAFT, PIVOT

NUT, SELF-LOCKING (1J7)

SEAL, GUARD

BOLT, HEXAGON

WASHER, PLATE 8221447500

COLLAR

CASE, CHAIN

SCREW, PANHEAD W/WASHER (22F)
