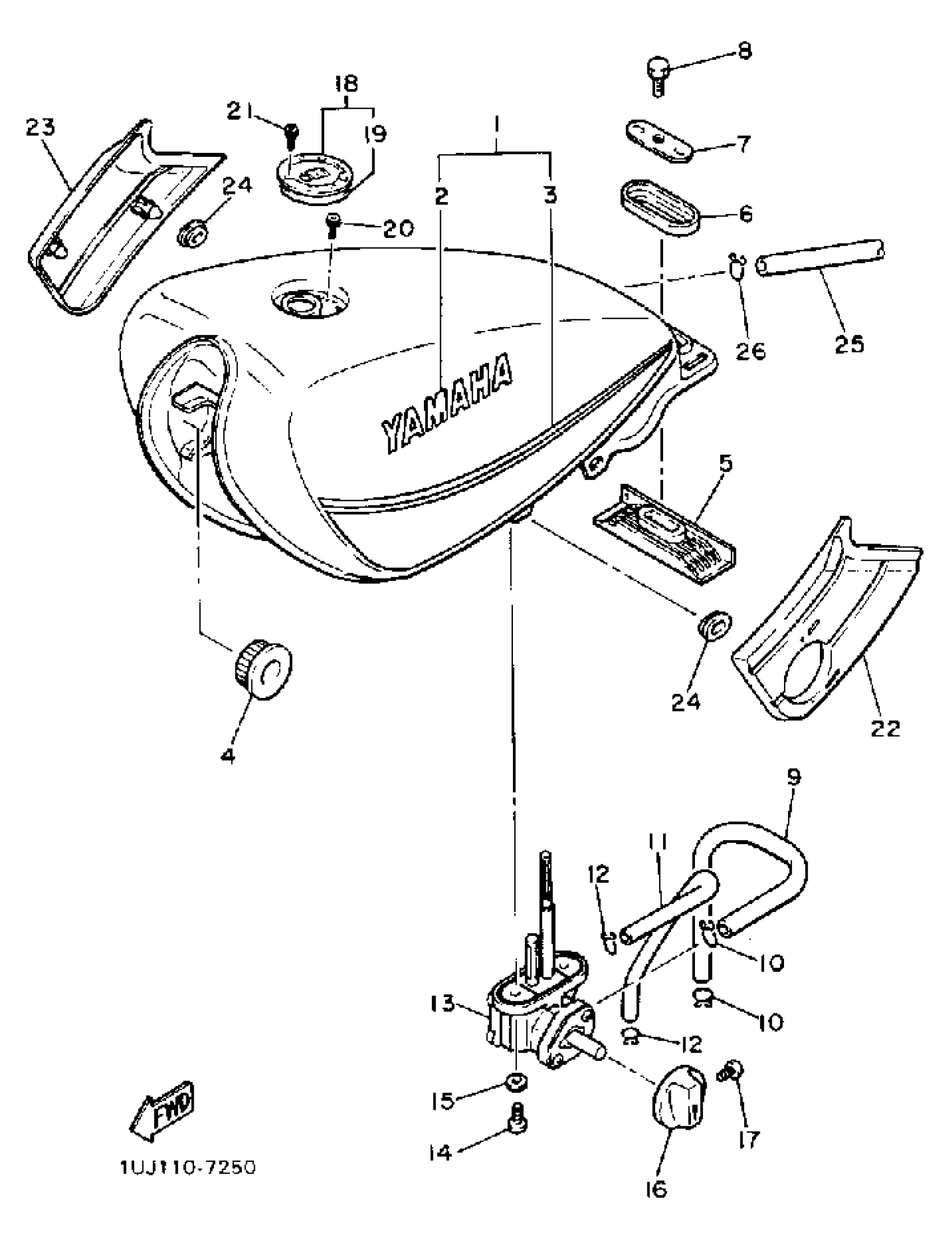

Yamaha YX600TC (RADIAN CA) 1987 FUEL TANK YX600T Diagram

#

Description
Price

1

FUEL TANK

1UJ-24110-00-03

Unavailable

1

FUEL TANK

1UJ-24110-00-04

Unavailable

2

EMBLEM, YAMAHA

99245-00100-00

Unavailable

3

. GRAPHIC SET

1UJ-24240-20-00

Unavailable

3

GRAPHIC SET

1UJ-24240-30-00

Unavailable

4

DAMPER, LOCATING

4H7-24181-00-00

$6.99

5

DAMPER, LOCATING 2

(1UJ-24182-00-00)

Unavailable

6

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

7

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

8

BOLT, HEXAGON

97017-08016-00

$8.49

9

PIPE, FUEL 1

4G0-24311-00-00

Unavailable

10

CLIP

90467-100A1-00

$7.49

11

HOSE (L770)

90445-090G9-00

$33.99

12

CLIP (16G)

90467-08021-00

$8.49

13

FUEL COCK ASSEMBLY 1

1UJ-24500-00-00

Unavailable

14

SCREW 256241430000

90149-06011-00

Unavailable

15

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

16

LEVER, COCK

29L-24524-01-00

Unavailable

17

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

18

CAP ASSY

4FM-24602-20-00

Unavailable

19

. COVER, FILLER

1XL-2414A-01-00

Unavailable

20

BOLT, SOCKET

91314-05010-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

22

COVER, SIDE 1

1UJ-24129-00-00

Unavailable

23

COVER, SIDE 2

1UJ-24139-00-00

Unavailable

24

GROMMET(41Y)

90480-01401-00

Unavailable

25

HOSE

90445-106A7-00

Unavailable

26

CLIP

90467-090A2-00

Unavailable
