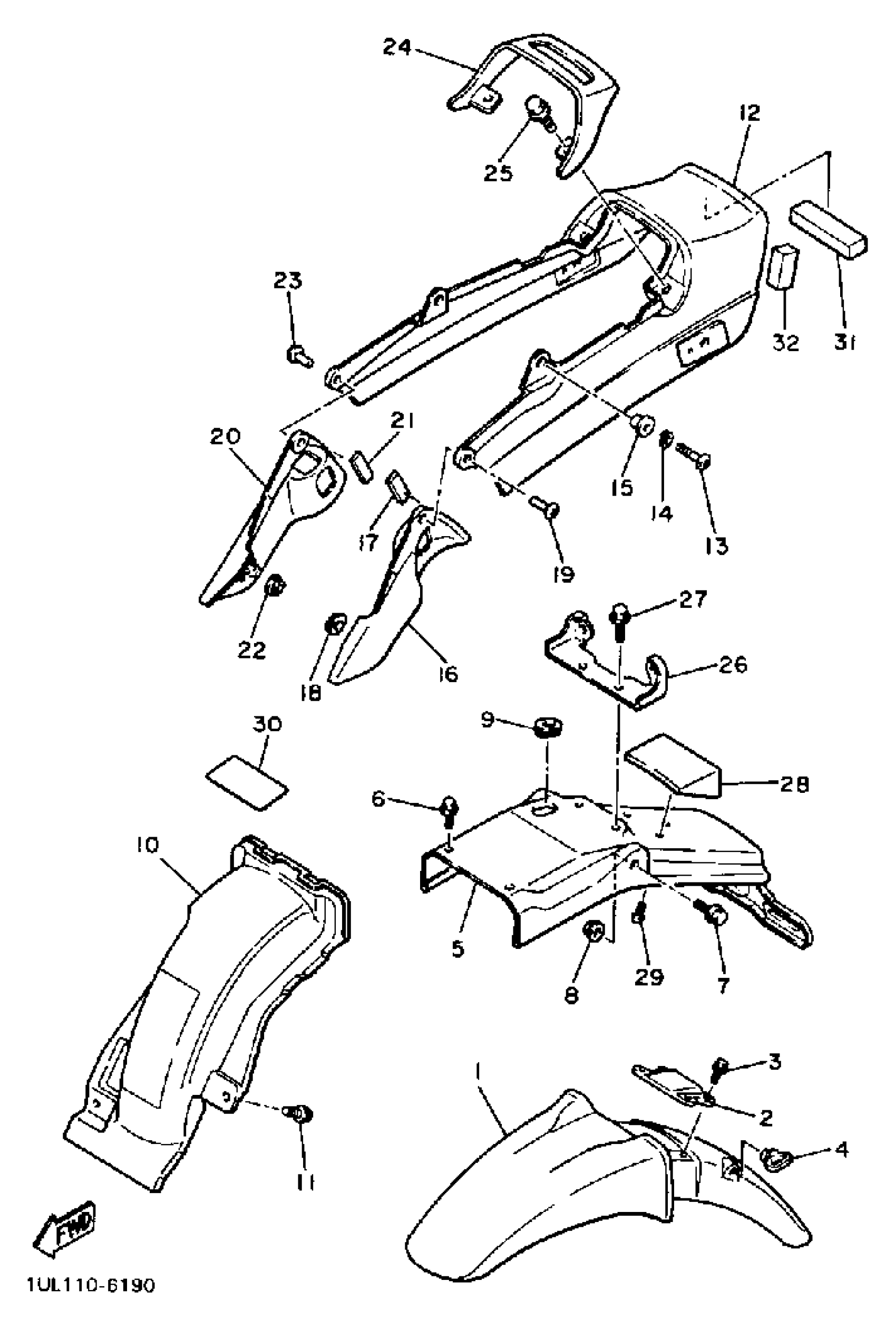

Yamaha YX600TC (RADIAN CA) 1987 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1UJ-21510-00-MW

Unavailable

1

FENDER, FRONT

1UJ-21510-00-E1

Unavailable

2

BRACE, FORK

1UJ-2313A-00-00

Unavailable

3

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

4

GUIDE, WIRE

1A8-21518-00-00

$7.99

5

FENDER, REAR

1UJ-21610-00-98

Unavailable

6

BOLT, FLANGE

95812-06010-00

$2.98

7

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

8

NUT, FLANGE

95704-08500-00

$8.49

9

GROMMET (438)

90480-15061-00

$8.49

10

GUARD, MUD

4G0-21629-00-00

Unavailable

11

BOLT, WITH WASHER

(90119-06095-00)

Unavailable

12

COVER, REAR FENDER

1UJ-21651-00-MW

Unavailable

12

COVER, REAR FENDER

1UJ-21651-00-TF

Unavailable

13

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

14

WASHER, SPRING

92907-06100-00

Unavailable

15

C0LLAR

90387-062M9-00

Unavailable

16

COVER, REAR FNDR.3

1UJ-2163E-00-MW

Unavailable

16

COVER, REAR FNDR.3

1UJ-2163E-00-TF

Unavailable

17

DAMPER 2

1HX-28227-00-00

Unavailable

18

GROMMET(41Y)

90480-01401-00

Unavailable

19

RIVET

90269-06001-00

Unavailable

20

COVER, REAR FENDR3

1UJ-2163F-00-MW

Unavailable

20

COVER, REAR FENDR3

(1UJ-2163F-00-TF)

Unavailable

21

DAMPER 2

1HX-28227-00-00

Unavailable

22

GROMMET(41Y)

90480-01401-00

Unavailable

23

RIVET

90269-06001-00

Unavailable

24

STAY, REAR

1UF-21645-01-00

Unavailable

25

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

26

BRACKET

1UJ-2161A-00-00

Unavailable

27

BOLT, FLANGE

95812-06010-00

$2.98

28

COVER, REAR FENDER

1UF-2163A-10-00

Unavailable

29

SCREW, PAN TAP.2 SLIT

97707-40608-00

Unavailable

30

PLATE, SPEC

(1UJ-21683-70-00)

Unavailable

30

PLATE, SPEC

(1UL-21687-70-00)

Unavailable

31

DAMPER

1UJ-21649-00-00

Unavailable

32

DAMPER 1

83R-14425-00-00

Unavailable
