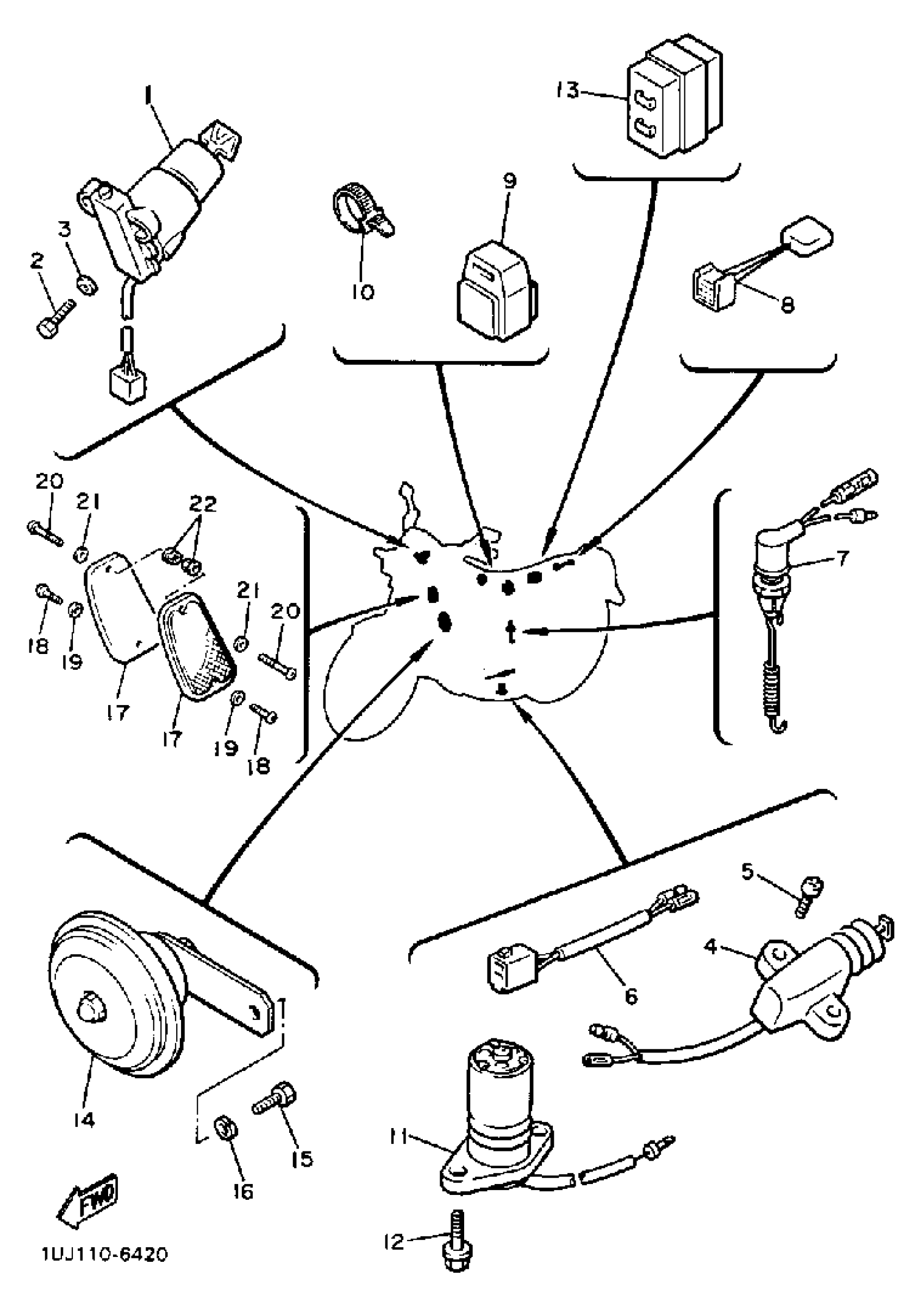

Yamaha YX600TC (RADIAN CA) 1987 ELECTRICAL 2 Diagram

#

Description
Price

1

MAIN SWCH STRG LCK

1UF-82501-00-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

SWITCH, SIDE STAND

4DH-82566-00-00

Unavailable

5

SCREW, FLAT

98707-05016-00

$7.99

6

WIRE,LEAD

49A-82541-00-00

Unavailable

7

STOP SWITCH ASSY

2F1-82530-03-00

$44.99

8

RECTIFIER 2

4U8-81980-M0-00

Unavailable

9

RELAY ASSY

4U8-81950-03-00

Unavailable

10

BAND, SWITCH CORD

437-83936-01-00

$7.99

11

OIL LEVEL GAUGE ASSEMBLY

4U8-85720-00-00

Unavailable

12

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

13

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

14

HORN (25G-83371-00)

3H7-83371-00-00

Unavailable

15

BOLT, HEXAGON

97027-08012-00

$8.49

16

WASHER(JN5)

92907-08100-00

Unavailable

17

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

Unavailable

18

SCREW, PAN HEAD

98507-04018-00

Unavailable

19

WASHER, PLAIN (646)

92990-04600-00

Unavailable

20

SCREW, ADJUSTING

5BF-8433E-00-00

Unavailable

21

WASHER, PLAIN (646)

92990-04600-00

Unavailable

22

NUT, FLANGE

95707-04500-00

Unavailable
