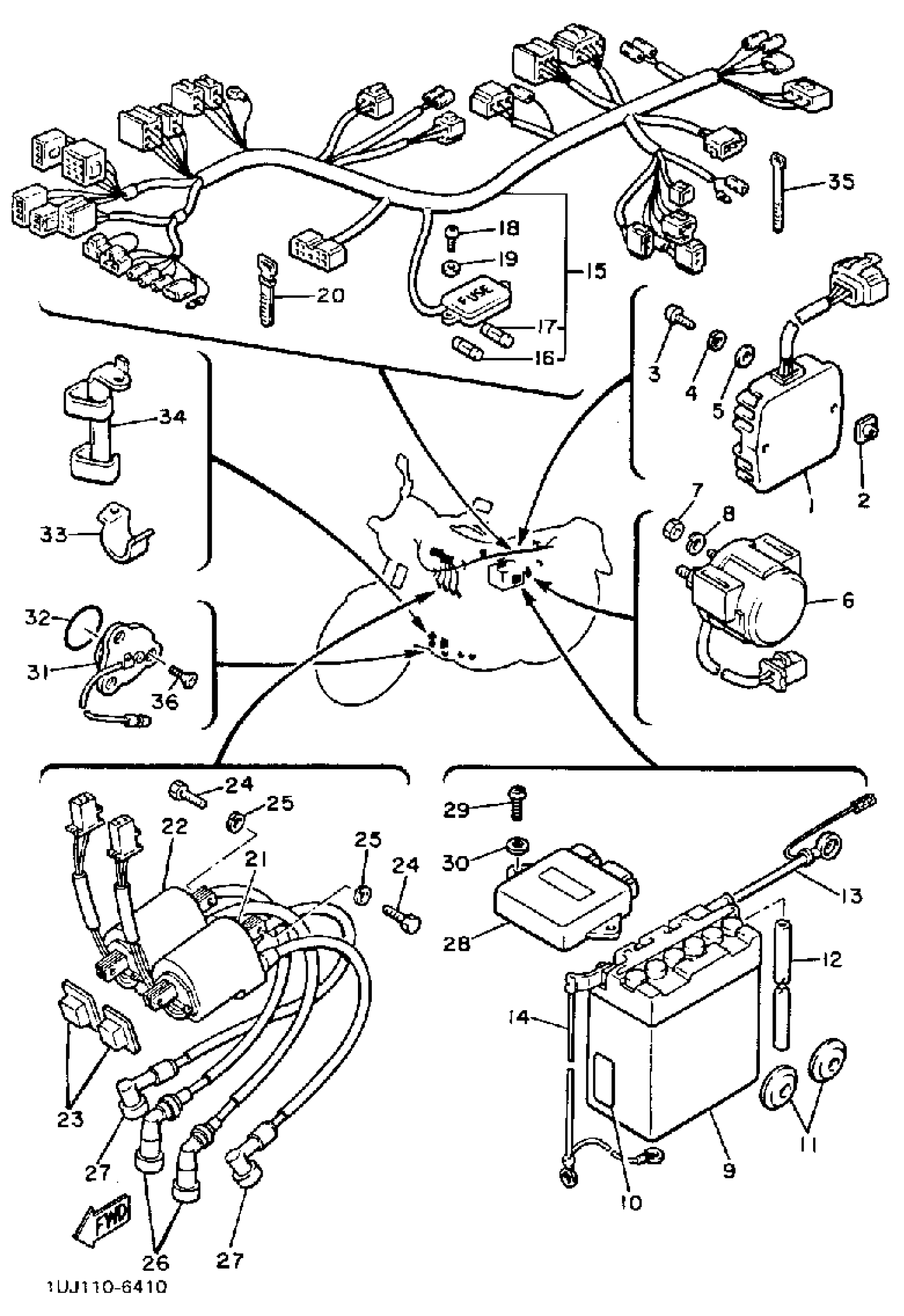

Yamaha YX600TC (RADIAN CA) 1987 ELECTRICAL 1 Diagram

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

Unavailable

NUT, PLATE

4G0-21736-00-00

Unavailable

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

NUT(650)

95380-06700-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

LABEL, BATTERY

40A-82141-G0-00

Unavailable

PAD, BATTERY

371-82121-00-00

$8.99

HOSE (L1500)

90445-084J0-00

$18.99

WIRE, PLUS LEAD

4G0-82115-00-00

Unavailable

WIRE, MINUS LEAD

4G0-82116-00-00

Unavailable

WIRE HARNESS ASSEMBLY (T)

1UJ-82590-00-00

Unavailable

WIRE HARNESS ASSEMBLY

(1UL-82590-00-00)

Unavailable

FUSE

1A0-82161-00-00

Unavailable

FUSE

1A0-82151-00-00

Unavailable

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

BAND, SWITCH CORD

437-83936-11-00

Unavailable

IGNITION COIL ASSY

4G0-82310-09-00

Unavailable

IGNITION COIL ASSY

4G0-82310-09-00

Unavailable

DAMPER, IGNITION COIL

4U8-82317-00-00

Unavailable

BOLT(3DM)

97024-06020-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

PLUG CAP ASSY

3NS-82370-00-00

Unavailable

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

IGNITOR UNIT ASSEMBLY 1

1UJ-82305-10-00

Unavailable

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

O-RING (371)

93210-29196-00

Unavailable

CLAMP (4G0)

90462-08078-00

Unavailable

CLAMP

90462-08087-00

Unavailable

BAND

341-26397-01-00

Unavailable

SCREW, FLAT

98707-05012-00

Unavailable
