1986 Yamaha Radian CA (YX600SC) Crankcase Diagram

← All diagrams

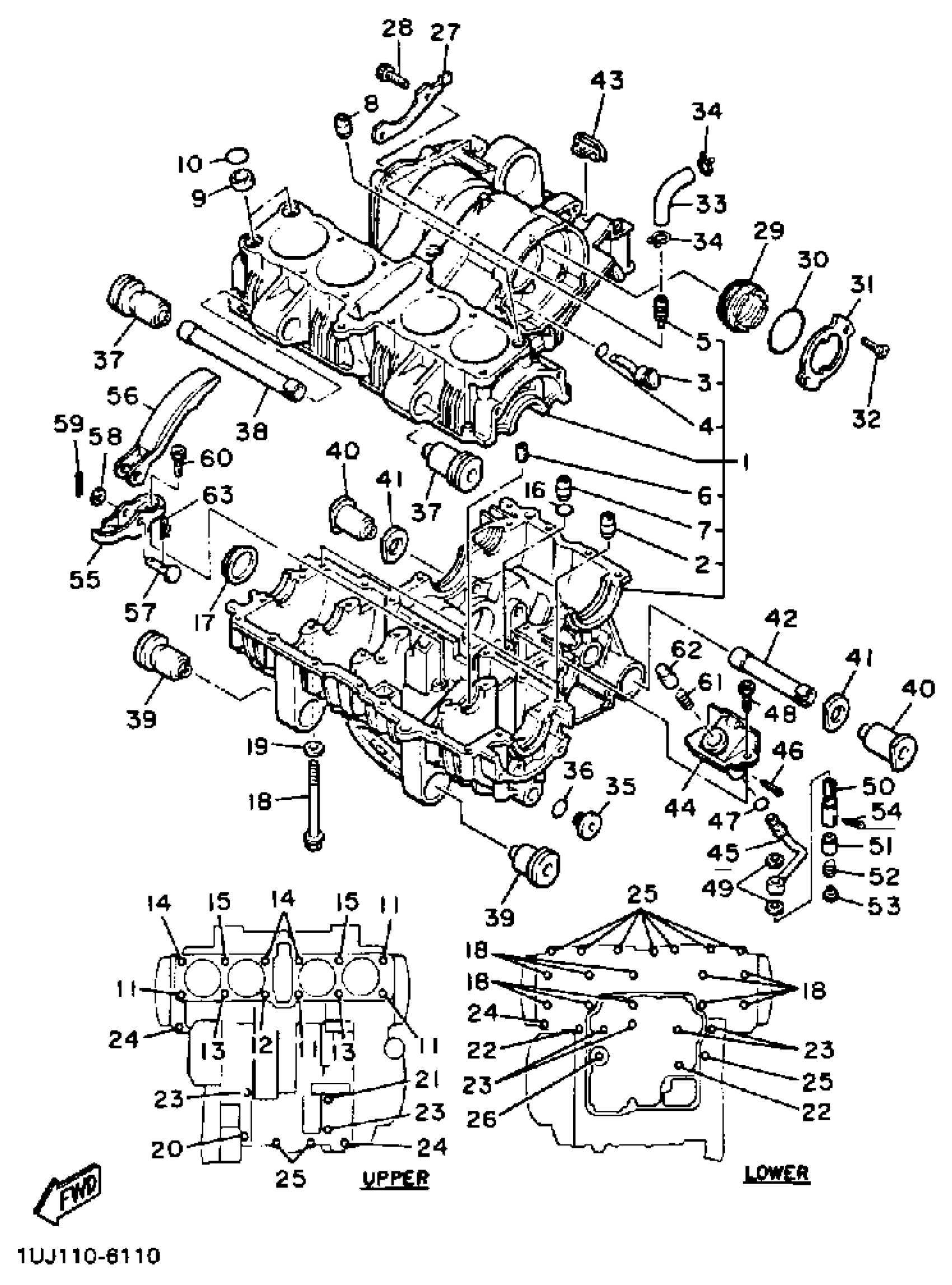

Find the part on the Crankcase diagram for your 1986 Yamaha Radian CA (YX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Radian CA (YX600SC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

1UJ-15100-01-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1
Out of stock

3

. NOZZLE 2

4G0-15148-00-00

1
Out of stock

4

O-RING (4G0)

93210-11453-00

1
Out of stock

5

PIPE, BREATHER 2

371-11167-01-00

1
Out of stock

6

. UNAVAILABLE IN PRICE BOOK

4G-01513-80-00

1
Out of stock

7

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

8

PIN, DOWEL

99530-14016-00

1
Out of stock

9

COLLAR (1L9)

90387-16547-00

1
Out of stock

10

O-RING (1L9)

93210-18322-00

1
Out of stock

11

BOLT, STUD

90116-08338-00

1
Out of stock

12

BOLT, STUD

90116-08339-00

1
Out of stock

13

BOLT, STUD

90116-08340-00

1
Out of stock

14

BOLT, CYLINDER HOLDING 3

4G0-11363-00-00

1
Out of stock

15

BOLT, CYLINDER HOLDING 4

4G0-11364-00-00

1
Out of stock

16

O-RING (1J7)

93210-09350-00

—
Out of stock

17

PLUG (4H7)

4H7-15167-10-00

—
Out of stock

18

BOLT, FLANGE

95817-08100-00

—
Out of stock

19

WASHER, PLATE (33N)

90201-094G1-00

—
Out of stock

20

BOLT, FLANGE(JF2)

95817-08080-00

—
Out of stock

21

BOLT, FLANGE

95811-06115-00

1
Out of stock

22

BOLT, FLANGE

95817-06095-00

—
Out of stock

23

BOLT, FLANGE

95817-06065-00

—
Out of stock

24

BOLT, FLANGE

95817-06055-00

—
Out of stock

25

BOLT, FLANGE

95817-06045-00

—
Out of stock

26

BOLT, FLANGE

95817-06035-00

—
Out of stock

27

PLATE, BRNG COVER

4G0-15381-00-00

1
Out of stock

28

BOLT,SOCKET

91317-06016-00

—
Out of stock

29

HOUSING, BEARING 1

4G0-15163-01-00

—
Out of stock

30

O-RING (26H)

93210-45578-00

—
Out of stock

31

PLATE, BEARING COVER

4G0-15383-00-00

1
Out of stock

32

SCREW, COUNTERSUNK (4H7)

90151-06014-00

—
Out of stock

33

PIPE, BREATHER 1

4G0-11166-00-00

1
Out of stock

34

CLIP (371)

90467-14015-00

—
Out of stock

35

PLUG

4H7-15189-00-00

—
Out of stock

36

O-RING (25G)

93210-20573-00

—
Out of stock

37

DAMPER, ENGINE MOUNT 3

1AA-15336-01-00

—
Out of stock

38

UNAVAILABLE IN PRICE BOOK

4G-01531-70-00

1
Out of stock

39

DAMPER, ENGINE MOUNT 1

1AA-15316-01-00

—
Out of stock

40

COLLAR

90387-125N5-00

1
Out of stock

41

WASHER, CLAW

90214-28045-00

1
Out of stock

42

SPACER, ENG MOUNT

4G0-15327-00-00

1
Out of stock

43

CLAMP

90462-10081-00

1
Out of stock

44

TENSIONER, CHAIN

4G0-11592-00-00

1
Out of stock

45

PIPE, DELIVERY 2

4G0-13171-00-00

—
Out of stock

46

PIN, COTTER

91490-25020-00

—
Out of stock

47

O-RING (11M)

93210-07540-00

—
Out of stock

48

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

1
Out of stock

49

GASKET (5R6)

90430-10171-00

—
Out of stock

50

RELIEF VALVE ASS'Y

4G0-11575-00-00

—
Out of stock

51

RELIEF VALVE ASS'Y

4G0-11575-00-00

—
Out of stock

52

SPRING, COMPRESSION (4G0)

90501-08614-00

—
Out of stock

53

WASHER, SPECL SHAP

90209-03202-00

1
Out of stock

54

PIN, COTTER

91490-20025-00

—
Out of stock

55

BRACKET, TENSIONER

(4G0-11497-00-00)

1
Out of stock

56

TENSIONER ARM COMP

4G0-11492-00-00

1
Out of stock

57

PIN, CLEVIS

90240-08078-00

1
Out of stock

58

.. WASHER, PLATE

92990-08600-00

1
Out of stock

59

PIN, COTTER

91490-25020-00

—
Out of stock

60

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

1
Out of stock

61

. SPRING, COMPRESSION

90501-143A8-00

1
Out of stock

62

. PLUNGER, TENSIONER

46X-11597-00-00

1
Out of stock

63

CLIP

90468-18008-00

1
Out of stock
