Description

Price

1

SEMI-DBL SEAT ASSEMBLYASSY

38W-24710-01-00

Unavailable

1

SEMI-DBL SEAT ASSEMBLYASSY

38W-24710-01-00

Unavailable

2

. COVER, SM-DBL SEATSEMI-DOUBLE SEAT

38W-24771-00-00

Unavailable

2

COVER, SM-DBL SEAT

(38W-24771-10-00)

Unavailable

3

PAD, SEAT

22W-24741-00-00

$7.20

4

STOPPER, MAIN STAND

371-27114-00-00

$5.42

5

DAMPER, SEAT

509-24724-00-00

$8.84

6

NUT, FLANGE(7NB)

95780-06500-00

$1.88

7

LEVER, SEAT

3GD-24776-00-00

$38.12

8

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

9

PIN

4K0-24774-01-00

Unavailable

10

CIRCLIP (EU0)

99080-04600-00

$1.70

11

SPRING, TORSION (24W)

90508-20454-00

Unavailable

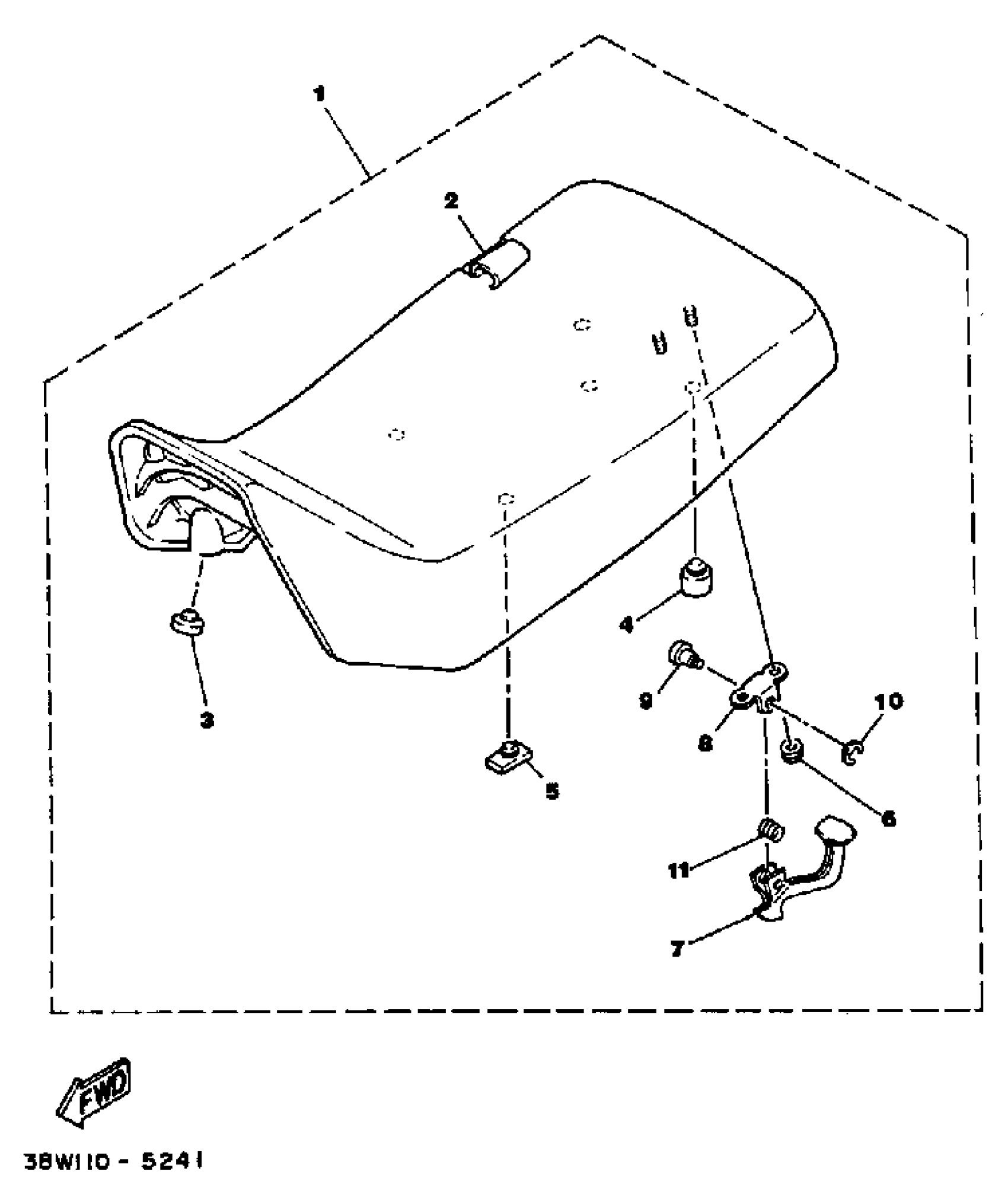

Yamaha YTZ250N 1985 SEAT Diagram

SEMI-DBL SEAT ASSEMBLYASSY

SEMI-DBL SEAT ASSEMBLYASSY

. COVER, SM-DBL SEATSEMI-DOUBLE SEAT

COVER, SM-DBL SEAT

PAD, SEAT

STOPPER, MAIN STAND

DAMPER, SEAT

NUT, FLANGE(7NB)

LEVER, SEAT

BRACKET, SEAT LEVER

PIN

CIRCLIP (EU0)

SPRING, TORSION (24W)
