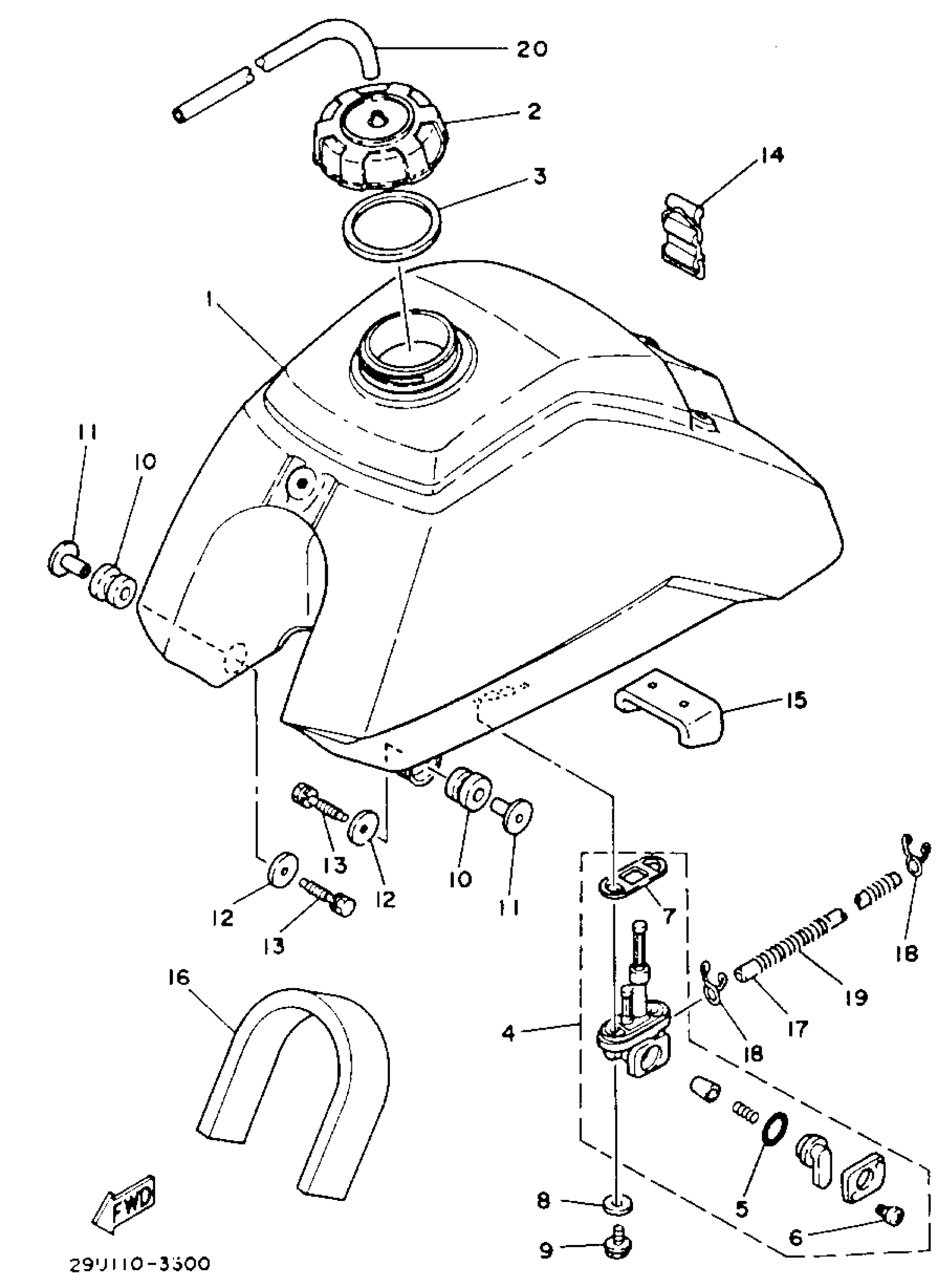

Yamaha YTM225DXK 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

2FW-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$49.24

3

GASKET,CAP

3R9-24612-00-00

Unavailable

4

FUEL COCK ASSY 1

21V-24500-20-00

$43.85

5

O-RING

4X8-24534-00-00

$10.74

6

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

7

O-RING

4X8-24512-00-00

$6.25

8

WASHER, PLATE(3MB)

90202-05187-00

$1.01

9

SCREW 256241430000

90149-06011-00

$1.56

10

GROMMET(4AA)

90480-18549-00

$8.23

11

COLLAR (29U)

90387-066H4-00

$5.86

12

WASHER, PLATE (J10)

90201-06697-00

$5.75

13

BOLT, WITH WASHER (24X)

90119-06073-00

$5.75

14

BAND, TANK FITTING 1

59V-24173-00-00

$14.81

15

DAMPER, LOCATING 1

29U-24181-00-00

Unavailable

16

DAMPER, LOCATING 3

21V-24183-00-00

Unavailable

17

HOSE (L400)

90445-116K9-00

Unavailable

18

CLIP

90467-100A1-00

Unavailable

19

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

20

HOSE (L1500)

90445-090F6-00

Unavailable
