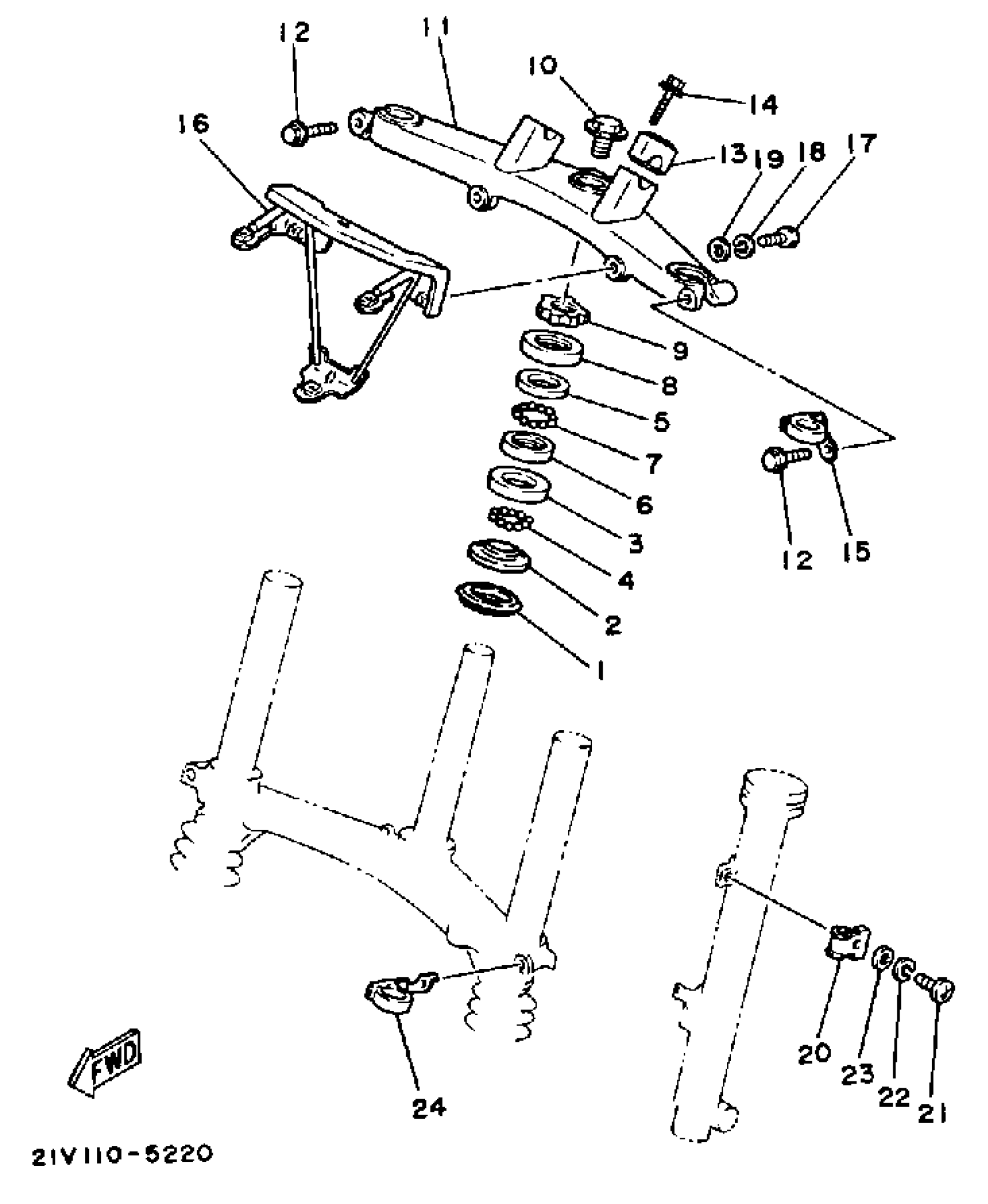

Yamaha YTM200N 1985 STEERING Diagram

#

Description
Price

1

SEAL, DUST

164-23462-00-00

$5.98

2

RACE, BALL 1

B6E-23411-00-00

$6.54

3

RACE, BALL 2

B6E-23412-00-00

$9.05

4

BALL

93501-04011-00

$5.84

5

RACE, BALL 1

4FP-F3411-20-00

$8.14

6

RACE,BALL 2

4FP-F3412-10-00

Unavailable

7

BALL

93501-04011-00

$5.84

8

COVER, BALL RACE

136-23415-00-00

$7.18

9

NUT

90179-25004-00

$19.41

10

BOLT (2A2)

90105-14102-00

$4.81

11

CROWN, HANDLE

21V-23435-00-00

Unavailable

12

BOLT, FLANGE

95814-08040-00

$2.93

13

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

14

BOLT, FLANGE

95817-08035-00

$6.22

15

GUIDE, CABLE

15A-23389-00-00

Unavailable

16

STAY, HEADLIGHT

21V-23174-00-00

Unavailable

17

BOLT, HEXAGON

97017-08025-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

$2.17

20

HOLDER, CABLE 2

3Y1-23319-00-00

Unavailable

21

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

22

WASHER, SPRING

92907-06100-00

Unavailable

23

WASHER(6TA)

92907-06600-00

Unavailable

24

GUIDE, CABLE

21V-23389-00-00

Unavailable
