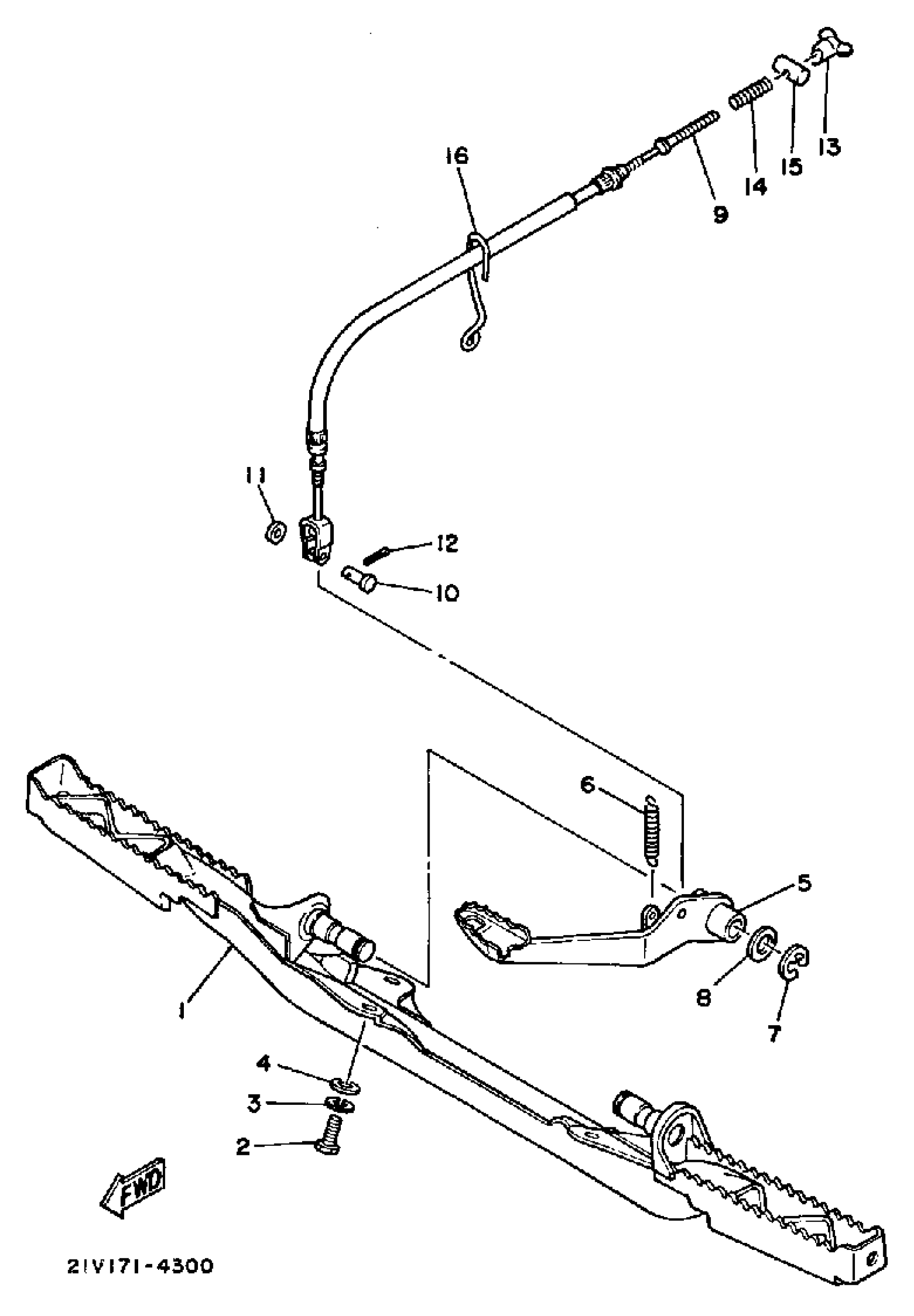

Yamaha YTM200ERN 1985 STAND-FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

21V-27411-10-00

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.43

3

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

4

WASHER, PLATE (397)

90201-08100-00

$5.75

5

PEDAL, BRAKE

21V-27211-02-00

Unavailable

6

SPRING, TENSION (3X3)

90506-16215-00

$3.02

7

CIRCLIP (122)

93430-12008-00

$4.89

8

WASHER, PLATE (3X3)

90201-15797-00

$5.86

9

CABLE, BRAKE

24W-26351-00-00

Unavailable

10

PIN, CLEVIS (3X3)

90240-06076-00

$5.75

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

12

PIN, COTTER

91490-20025-00

$1.23

13

NUT, AJUSTING

20E-26343-00-00

$20.80

14

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

15

PIN 1562723700

90249-12008-00

$5.75

16

GUIDE, CABLE

21V-26399-00-00

Unavailable
