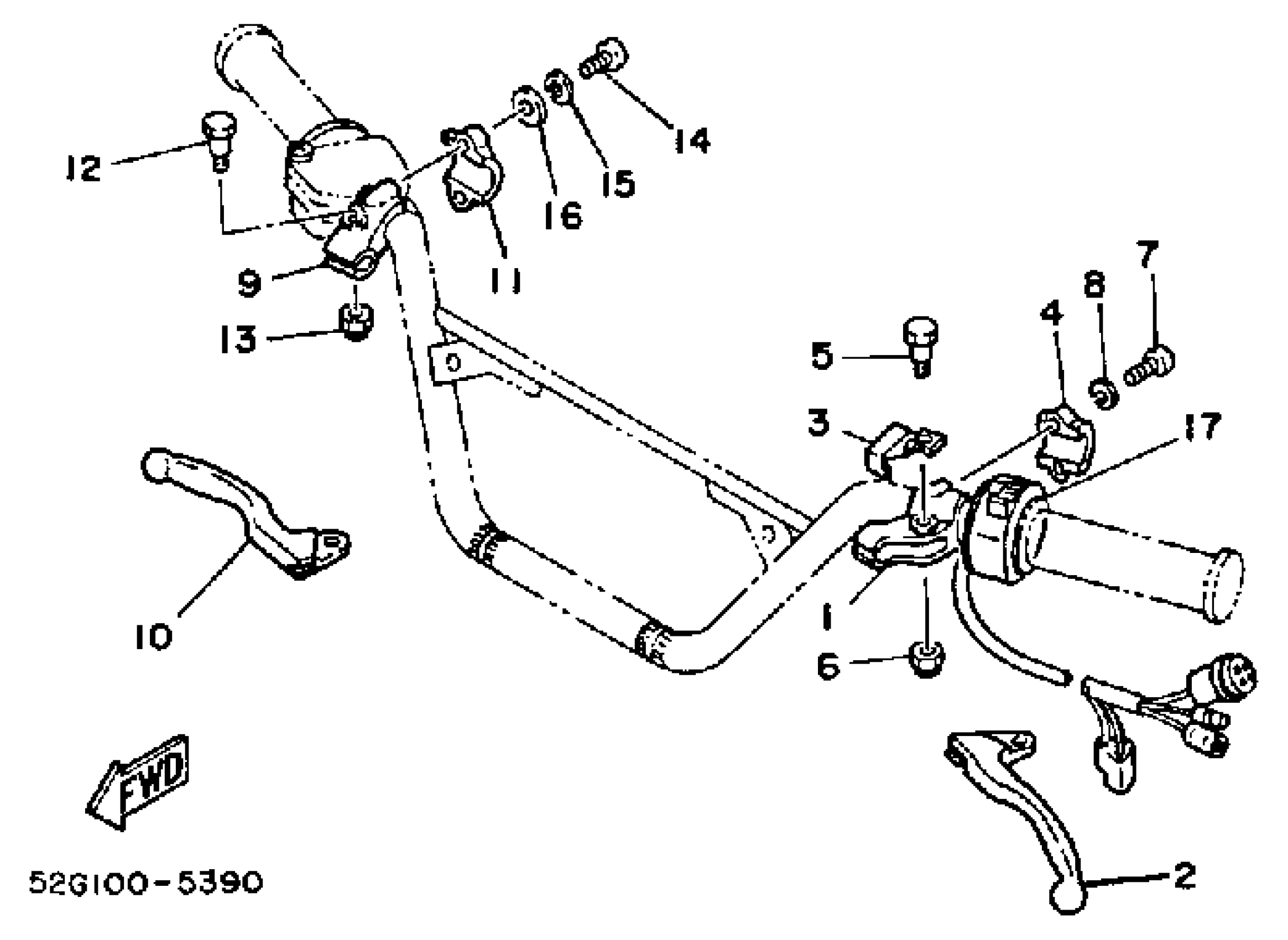

Yamaha YTM200ERN 1985 HANDLE SWITCH-LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

5F6-82911-00-00

Unavailable

2

LEVER 1

23X-83912-02-00

$20.03

3

LEVER, LOCK

3X3-83965-00-00

$25.97

4

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

5

BOLT(1FG)

90109-06798-00

$5.84

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SCREW, PAN HEAD

98517-05020-00

$1.26

8

WASHER(3SX)

92907-05100-00

$5.76

9

H0LDER, LEVER 2

38V-82921-00-00

$35.10

10

LEVER R

23X-83922-01-00

$20.29

11

H0LDER, LEVER L0WER 1

38V-82913-00-00

$17.82

12

BOLT(3GB)

90109-061F3-00

$4.51

13

NUT, SELF-LOCKING

95617-06100-00

$2.17

14

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.31

15

WASHER(3SX)

92907-05100-00

$5.76

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

SWITCH, HANDLE 3

24W-83973-08-00

Unavailable
