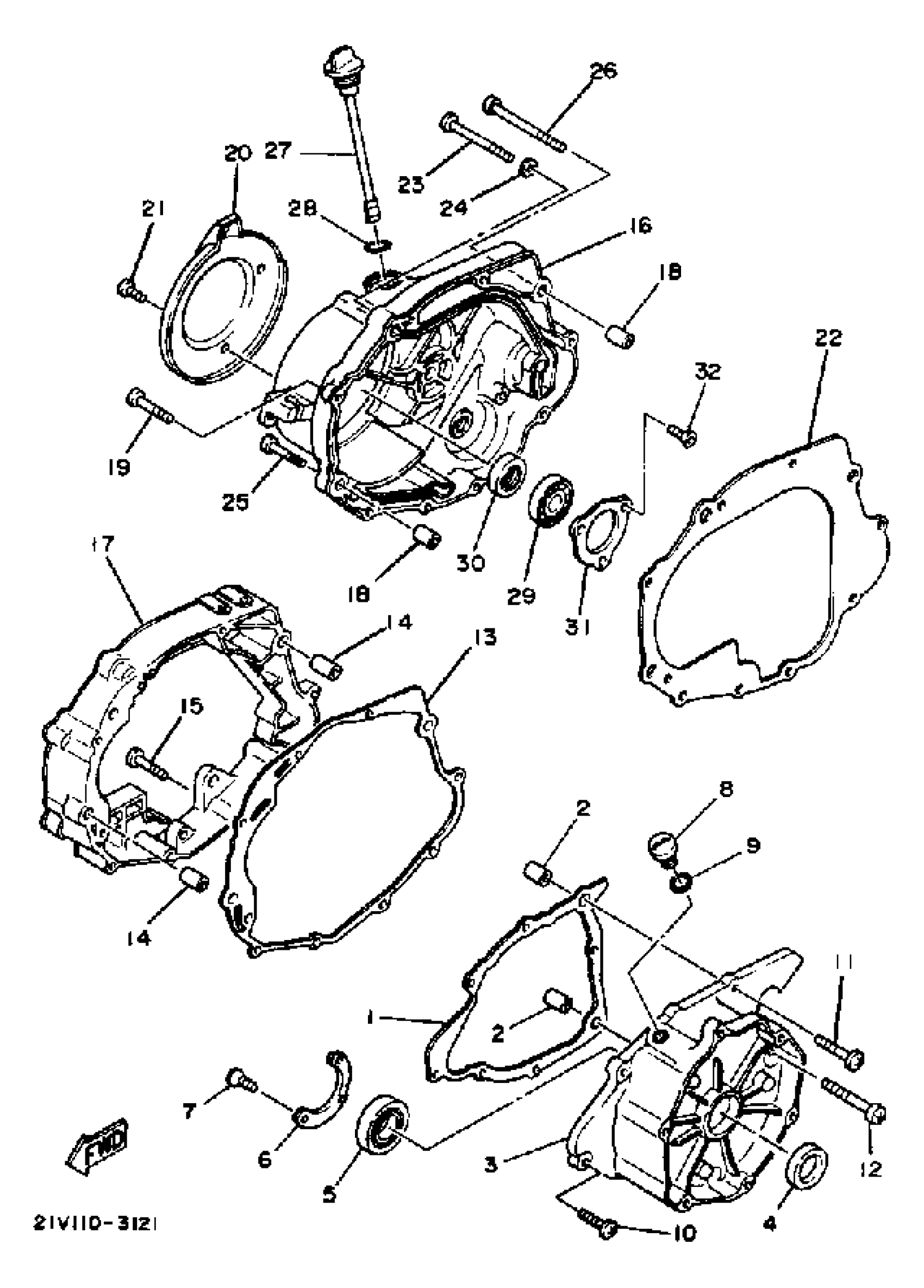

Yamaha YTM200EK 1983 CRANKCASE COVER Diagram

#

Description
Price

1

GASKET, CRANKCASE COVER 1

4BD-15451-01-00

$14.31

2

PIN, DOWEL

99530-12016-00

$3.85

3

ADAPTOR

29U-15787-00-00

Unavailable

4

OIL SEAL (21V)

93103-28141-00

$14.44

5

BEARING(55X)

93306-07801-00

$46.93

6

WASHER, THRUST

21V-15719-00-00

Unavailable

7

SCREW, COUNTERSUNK (21V)

90151-05023-00

$5.33

8

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

9

O-RING (2H9)

93210-14369-00

$5.42

10

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

11

SCREW, PAN

98507-06040-00

$2.08

12

SCREW, PAN

98507-06060-00

$5.23

13

GASKET, CRANKCASE COVER 3

4BD-15462-00-00

Unavailable

14

PIN, DOWEL

99530-12016-00

$3.85

15

SCREW PAN HEAD

98580-06040-00

$5.75

16

COVER,CRANKCASE 3

99999-02617-00

Unavailable

17

SPACER, ENGINE

21V-15317-01-00

Unavailable

18

SPACER, ENGINE

21V-15317-01-00

Unavailable

18

PIN, DOWEL

99530-12016-00

$3.85

19

SCREW, PAN

98507-06040-00

$2.08

20

PROTECTOR, COVER

21V-15499-00-00

Unavailable

21

SCREW, BINDING

98907-06014-00

Unavailable

22

GASKET, CARBURETOR COVER 2

4BD-15463-01-00

Unavailable

23

SCREW, PAN HEAD

98507-06070-00

Unavailable

24

GASKET 256113960000

90430-06014-00

Unavailable

25

SCREW, PAN

98507-06040-00

$2.08

26

SCREW, PAN

98507-06080-00

Unavailable

27

PLUG, OIL LEVEL

1UY-15362-01-00

Unavailable

28

O-RING (646)

93210-19123-00

Unavailable

29

BEARING(37F)

93306-20335-00

Unavailable

30

OIL SEAL (21V)

93101-17113-00

Unavailable

31

PLATE, BEARING COVER

21V-15381-00-00

Unavailable

32

SCREW, COUNTERSUNK (21V)

90151-06025-00

Unavailable
