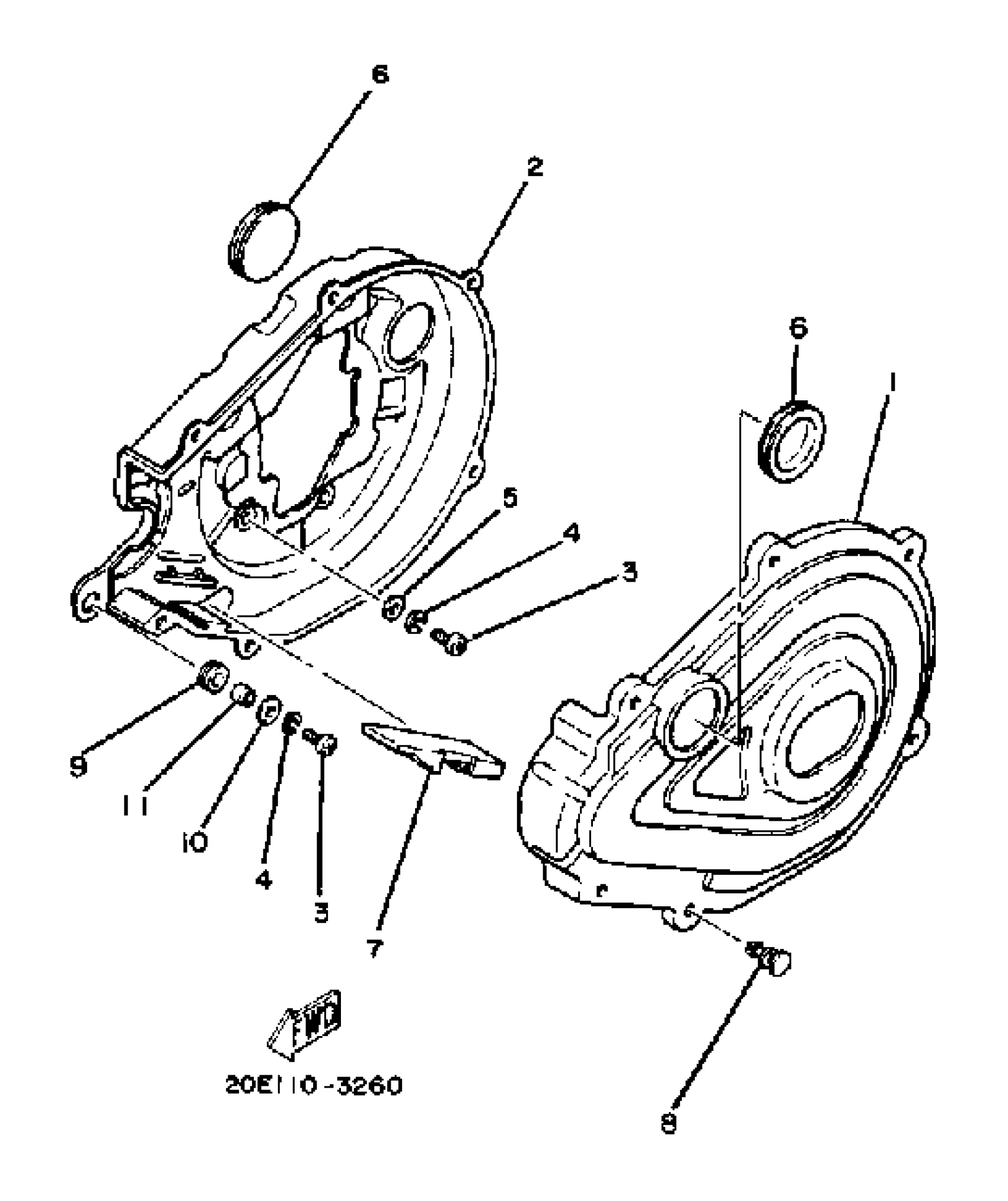

Yamaha YT175K 1983 CHAIN CASE Diagram

#

Description
Price

1

CASE, CHAIN

5V6-22311-00-00

Unavailable

2

CASE, CHAIN 2

5V6-22312-00-00

Unavailable

3

SCREW, PAN

98507-06014-00

$5.76

4

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER, PLATE

90201-06M08-00

$2.16

6

PLUG (8H8)

90338-44093-00

$13.70

7

PORTECTOR, CHAIN (5V6-22147-00)

5V7-22147-00-00

Unavailable

8

RIVET, SPEC''L SHAPE

90269-06026-00

Unavailable

9

GROMMET (583 SIDE COVER)

90480-01176-00

$8.55

10

WASHER, PLATE 8221447500

90201-06057-00

$3.52

11

COLLAR(51L)

90387-067K6-00

$6.94
