Partiron

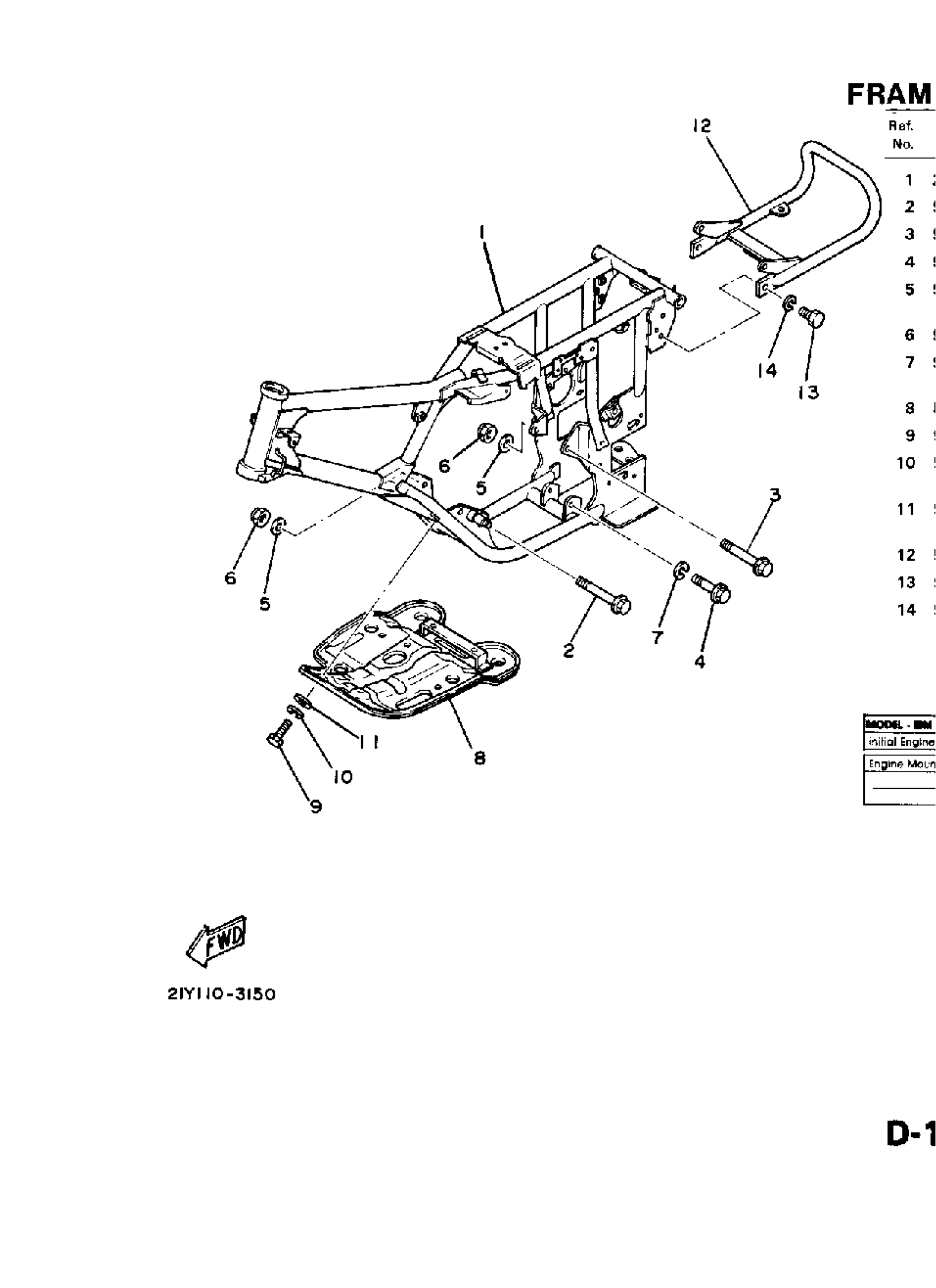

Yamaha YT125N 1985 FRAME Diagram

#

Description
Price

1

FRAME

(21Y-21110-00-33)

Unavailable

2

BOLT

90105-08024-00

$6.36

3

BOLT, FLANGE

95817-08100-00

$4.04

4

BOLT

90105-10037-00

Unavailable

5

WASHER, PLAIN

92990-08200-00

$2.36

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$6.82

7

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

8

PROTECTOR, ENGINE

(5V6-21471-00-33)

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

12

BUMPER, REAR 1

5V6-28421-11-00

Unavailable

13

BOLT(JA9)

90101-08691-00

$4.65

14

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23
