Partiron

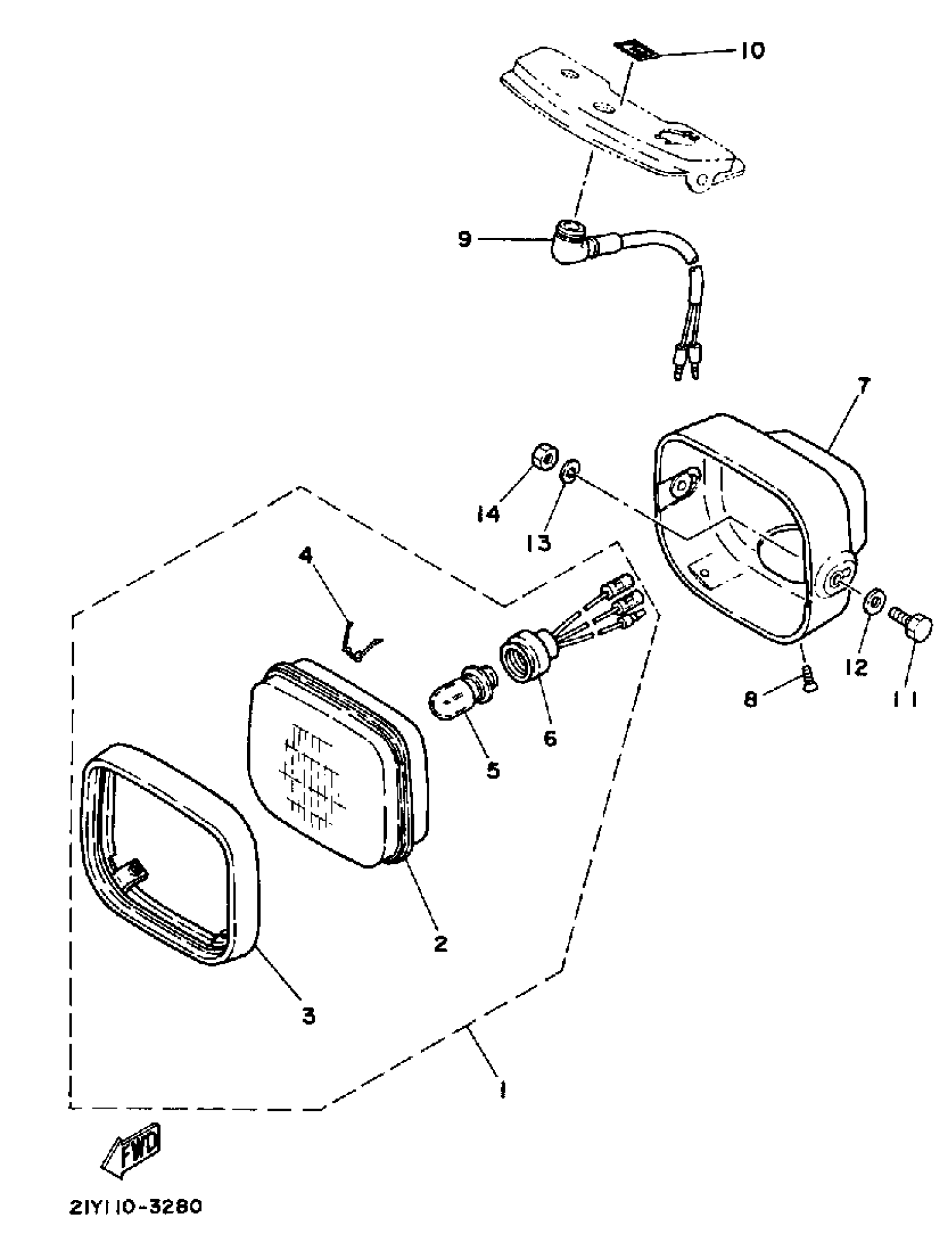

Yamaha YT125K 1983 HEADLIGHT Diagram

#

Description
Price

2

. LENS ASSEMBLY

3L6-84120-00-00

Unavailable

3

. RIM, HEADLIGHT

3L6-84115-00-00

Unavailable

4

. SPRING, SET

3L6-84124-00-00

Unavailable

5

. BULB, HL 6V25/25W

527-84114-09-XX

Unavailable

6

. SOCKET

4G2-84312-00-00

Unavailable

7

BODY ASSEMBLY, HEADLIGHT (4U3-84130-00-26)

4U3-84130-00-00

Unavailable

8

SCREW, OVAL HEAD (1A0)

90152-05005-00

$2.63

9

BULB (12V-3.4W)

123-83516-21-00

$3.52

9

OIL PILOT LT ASSEMBLY

4U3-85770-00-00

Unavailable

10

LABEL

4U3-83585-00-00

Unavailable

11

BOLT, HEXAGON

97013-08020-00

$1.43

12

WASHER, PLAIN

92990-08200-00

$2.36

13

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

14

NUT(6L2)

95333-08600-00

$2.98
