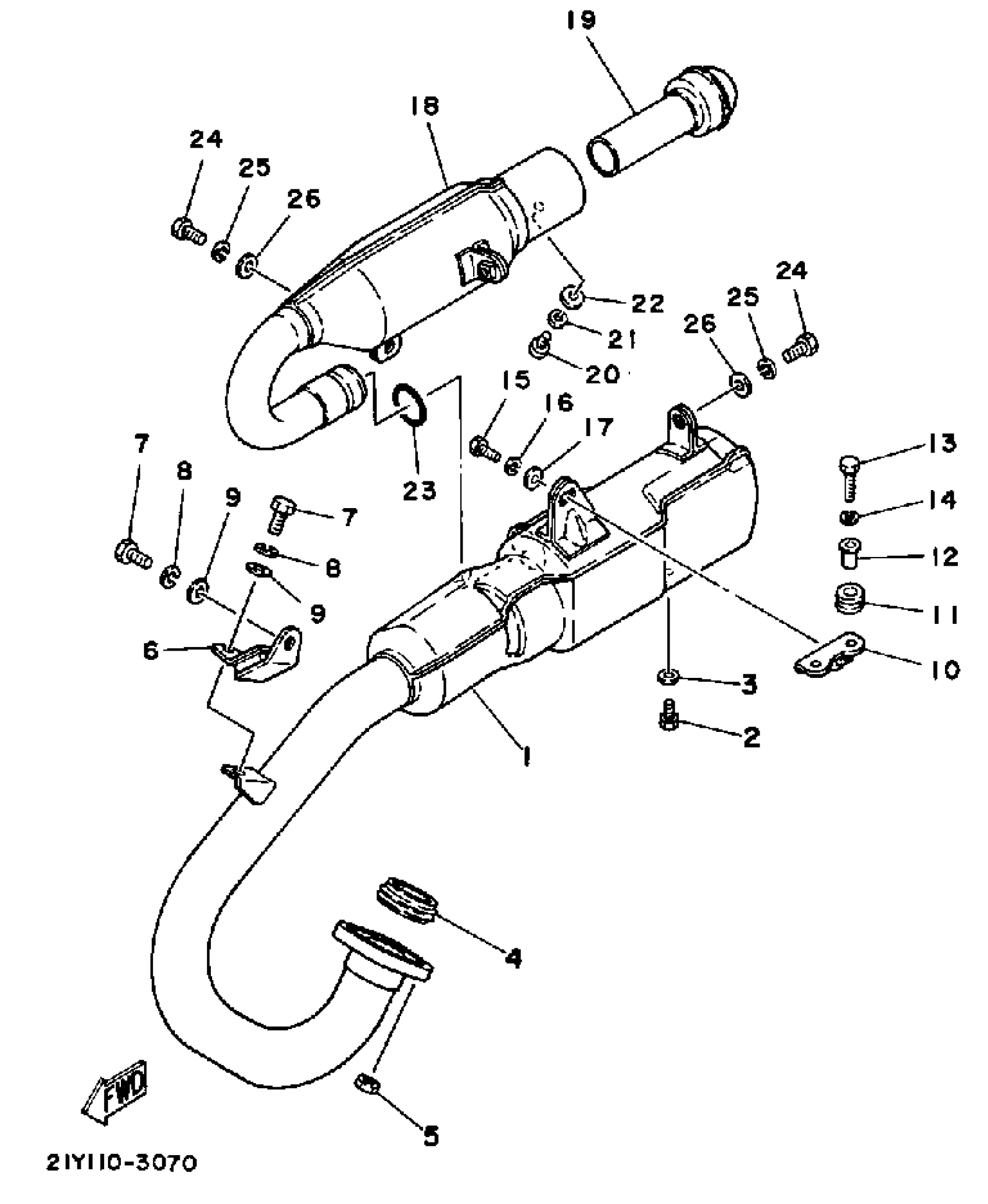

Yamaha YT125K 1983 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY

(3X3-14610-01-00)

Unavailable

2

BOLT(3JP)

97017-06010-00

$2.44

3

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

4

GASKET, EXHAUST PIPE

3PA-14613-10-00

$12.08

5

NUT, HEXAGON

95380-06600-00

$4.11

6

STAY, MUFFLER 2

2A6-14772-01-00

Unavailable

7

BOLT, HEXAGON

97302-08018-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

8

BOLT, HEXAGON

97013-08020-00

$1.43

9

.. WASHER, PLATE

92990-08600-00

$2.17

10

STAY, MUFFLER 1

5V7-14771-00-00

Unavailable

11

GROMMET 839774310000

90480-14023-00

$4.34

12

COLLAR

90387-06158-00

$5.75

13

BOLT, HEXAGON

97017-06025-00

$2.78

14

WASHER, SPRING

92995-06100-00

$2.95

15

BOLT, HEXAGON

97302-08018-00

Unavailable

15

BOLT, HEXAGON

97013-08020-00

$1.43

16

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

17

.. WASHER, PLATE

92990-08600-00

$2.17

18

SILENCER, EXHAUST

3X3-14753-00-00

Unavailable

19

PIPE, OUTLET

3X3-14752-00-00

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

21

WASHER, SPRING

92995-06100-00

$2.95

22

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

23

O-RING

93210-27250-00

Unavailable

24

BOLT(JA9)

90101-08691-00

Unavailable

24

BOLT, HEXAGON

97013-08020-00

$1.43

25

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

26

.. WASHER, PLATE

92990-08600-00

$2.17
