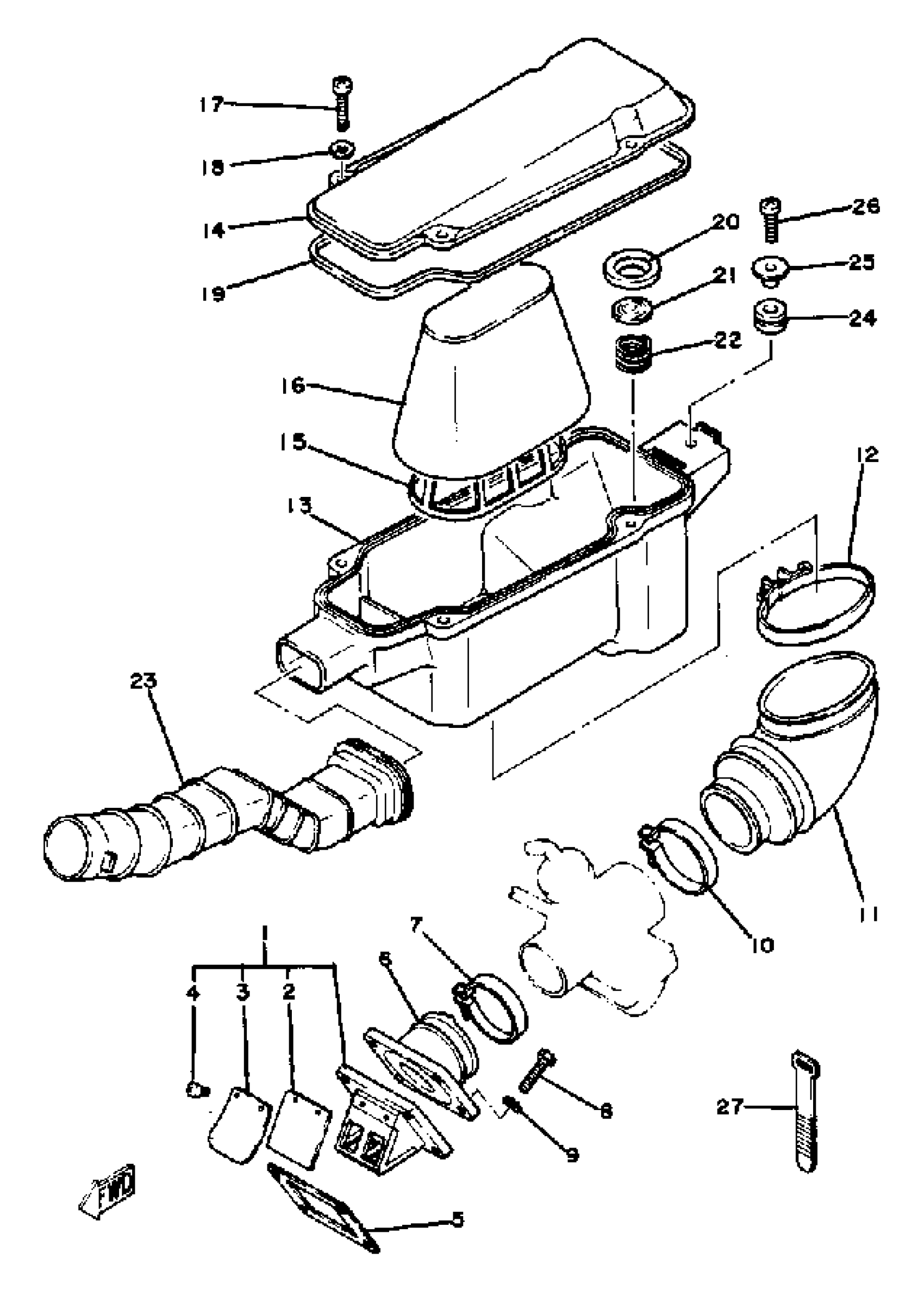

Yamaha YT125G 1980 INTAKE YT125J Diagram

#

Description
Price

1

REED VALVE ASSY

345-13610-20-00

$215.32

2

REED, VALVE

4X8-13613-10-00

Unavailable

3

. STOPPER, REED VALVE

3X3-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

5

GASKET, VALVE SEAT

87A-13621-00-00

$7.43

6

JOINT, CARBURETOR 1

3X3-13586-00-00

Unavailable

7

CLAMP, HOSE (5H0)

90460-43179-00

$15.59

8

BOLT, HEXAGON

97017-06025-00

$2.78

9

WASHER, PLAIN (646)

92990-06600-00

$1.84

10

CLAMP HOSE 278144550000

90460-49058-00

$6.29

11

JOINT, AIR CLNR 1

5V7-14453-00-00

Unavailable

12

CLAMP, HOSE

90460-01186-00

Unavailable

13

CASE, AIR CLEANER 1

5V7-14411-00-00

Unavailable

14

CAP, CLEANER CASE 1

5V7-14412-00-00

Unavailable

15

GUIDE, ELEMENT

5V7-14458-00-00

Unavailable

16

ELEMENT, AIR CLNR

5V7-14451-00-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

$1.84

19

SEAL

1VJ-14462-00-00

Unavailable

20

OIL SEAL, SO-TYPE

93104-18006-00

Unavailable

21

PLATE

3X3-14477-00-00

Unavailable

22

SPRING, COMPRESSION

90501-05588-00

Unavailable

23

DUCT

5V7-14437-00-00

Unavailable

24

GROMET (3X3)

90480-14229-00

Unavailable

25

COLLAR(735)

90387-06033-00

Unavailable

26

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

27

BAND, SWITCH CORD

437-83936-11-00

Unavailable
