Description

Price

1

LENS ASSEMBLY

2RR-84120-A0-00

Unavailable

2

RING, RETAINING

2RR-84195-00-00

Unavailable

3

RING, MOUNTING

2RR-84194-00-00

Unavailable

4

SPRING, SCREW

2EK-84132-00-00

Unavailable

5

NUT, ADJUSTING

50W-84334-00-00

Unavailable

6

SCREW, ADJUSTING

5BF-8433E-00-00

$5.82

7

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

8

COLLAR, SCREW

50W-84333-00-00

$6.98

9

WASHER, PLAIN

4KG-84344-00-00

Unavailable

10

PLUG

2RR-84178-00-00

$6.29

11

SCREW,PAN HEAD (646)

98580-05012-00

$5.34

12

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

13

WASHER, PLATE 8067717800

90201-05029-00

$5.29

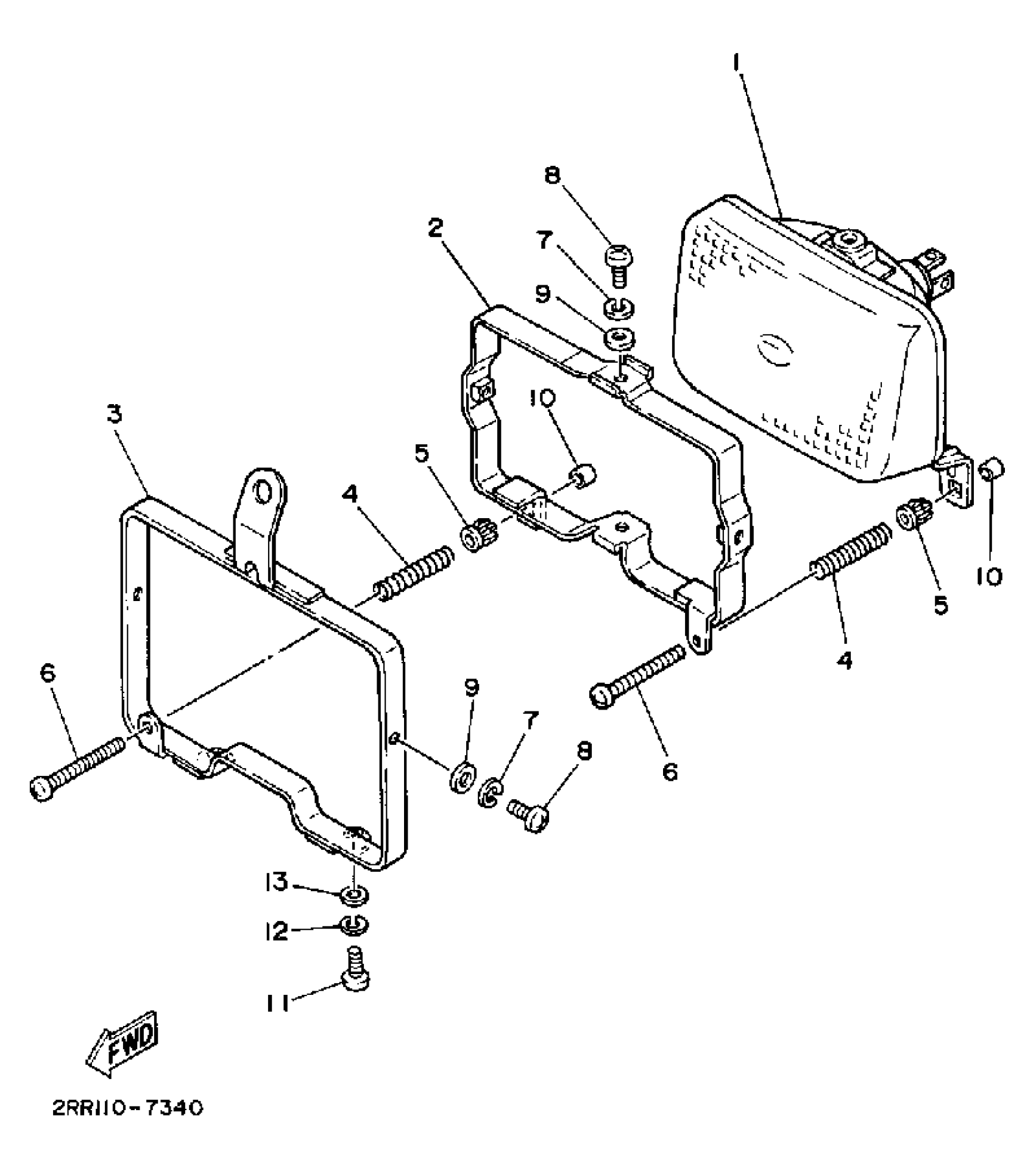

Yamaha YSR50T (YSR50T) 1987 HEADLIGHT Diagram

LENS ASSEMBLY

RING, RETAINING

RING, MOUNTING

SPRING, SCREW

NUT, ADJUSTING

SCREW, ADJUSTING

YBS67-5 WASHER, SPRING

COLLAR, SCREW

WASHER, PLAIN

PLUG

SCREW,PAN HEAD (646)

YBS67-5 WASHER, SPRING

WASHER, PLATE 8067717800
