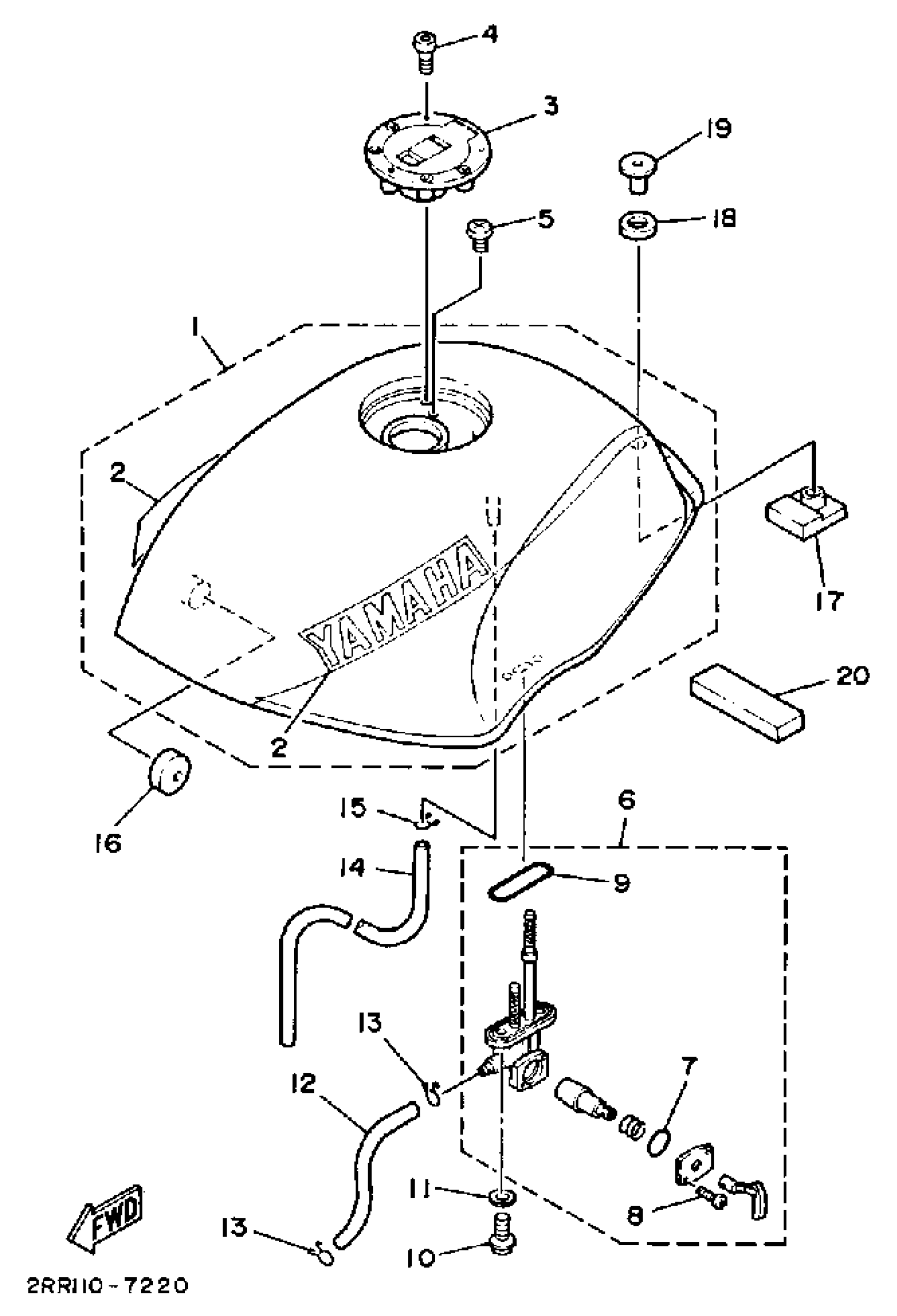

Yamaha YSR50T (YSR50T) 1987 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

2AL-24110-01-05

Unavailable

2

EMBLEM, YAMAHA

99246-00140-00

$28.99

3

CAP ASSY

4FM-24602-20-00

$300.99

4

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

5

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

6

FUEL COCK ASSY 1

10V-24500-02-00

Unavailable

7

O-RING

4X8-24534-00-00

$13.49

8

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

9

O-RING

4X8-24512-00-00

$8.99

10

SCREW 256241430000

90149-06011-00

$5.60

11

WASHER, PLATE(3MB)

90202-05187-00

$1.38

12

HOSE (L420)

90445-092K1-00

$12.49

13

CLIP 101235600

90467-08003-00

$10.49

14

HOSE (L730)

90445-105K7-00

Unavailable

15

CLIP

90467-090A2-00

$4.41

16

DAMPER, LOCATING

4U5-24181-00-00

Unavailable

17

DAMPER, LOCATING

5R2-24183-00-00

Unavailable

18

WASHER, PLATE (462)

90202-14077-00

Unavailable

19

COLLAR (17W)

90387-075H4-00

Unavailable

20

SEAL

1KT-2414G-00-00

Unavailable
