1992 Yamaha YSR50D (YSR50D) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1992 Yamaha YSR50D (YSR50D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

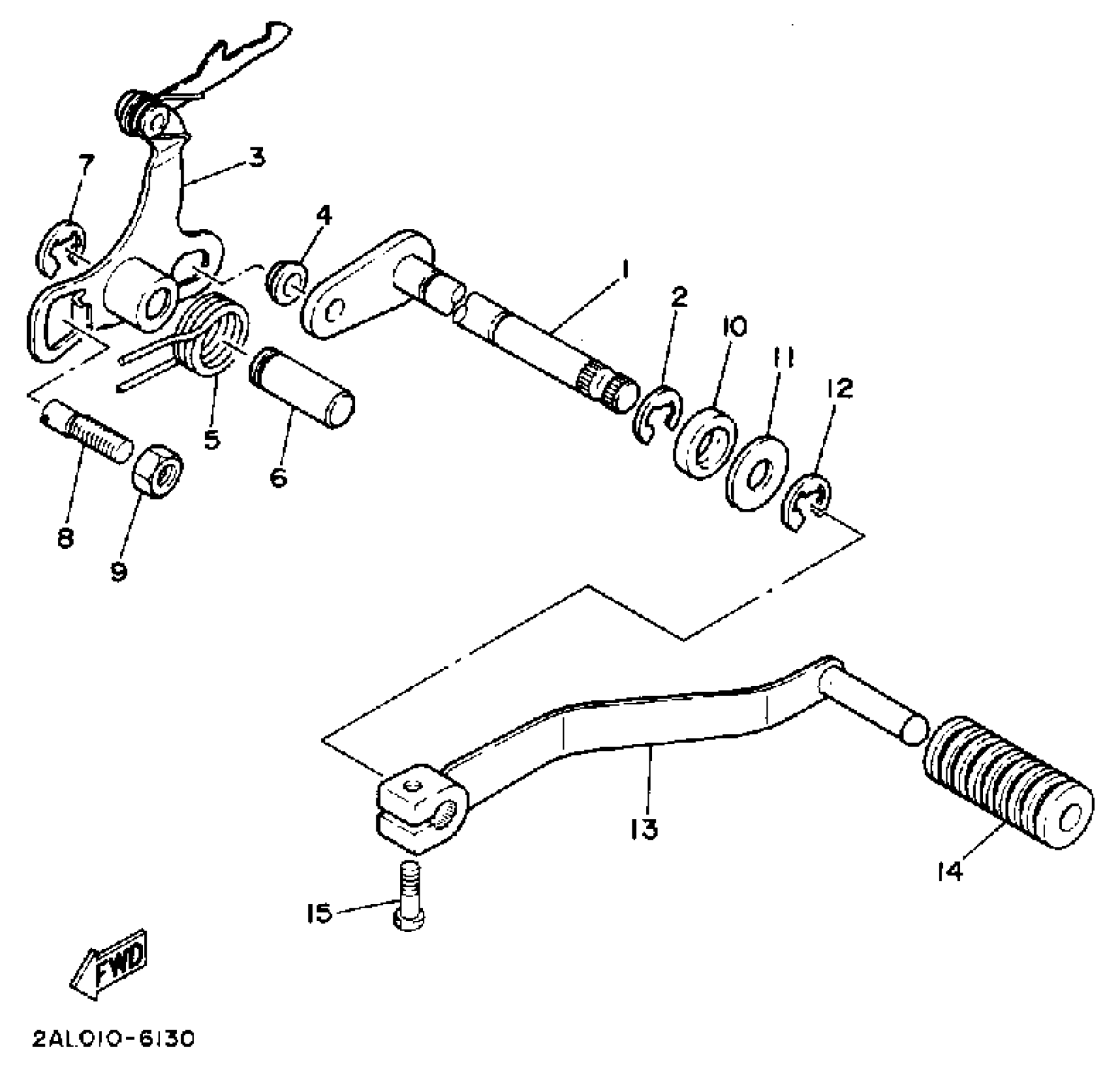

1992 Yamaha YSR50D (YSR50D) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY.1

2AL-18101-01-00

1
Out of stock

2

CIRCLIP

99006-10600-00

1
Out of stock

3

SHIFT LEVER ASSEMBLY

353-18120-00-00

1
Out of stock

4

ROLLER, SHIFT LEVER

214-18178-00-00

1
Out of stock

5

SPRING TORSION 353181240000

90508-32054-00

—
Out of stock

6

SHAFT

367-18197-00-00

1
Out of stock

7

CIRCLIP

99006-10600-00

1
Out of stock

8

SCREW, ADJUSTING (367)

90149-08094-00

1
Out of stock

9

NUT(6L2)

95333-08600-00

1
Out of stock

10

SEAL, OIL (30X)

93102-12321-00

1
Out of stock

11

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

12

CIRCLIP

99006-10600-00

1
Out of stock

13

PEDAL, SHIFT

2AL-18111-00-00

1
Out of stock

14

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

15

BOLT, HEXAGON

97017-06020-00

1
Out of stock
