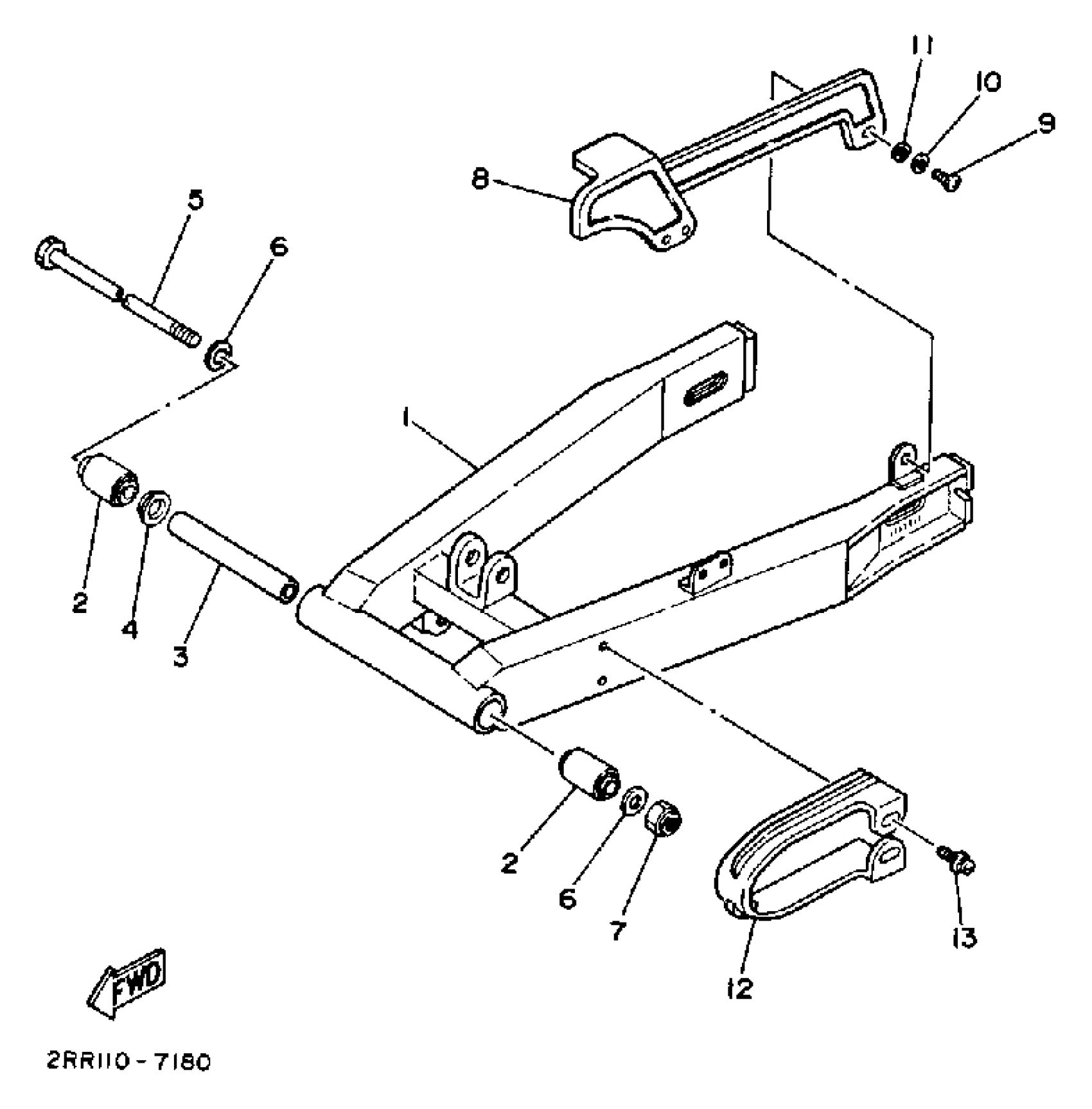

Yamaha YSR50B (YSR50B) 1991 SWING ARM Diagram

#

Description
Price

1

REAR ARM

2AL-22110-00-35

Unavailable

2

BUSH 1

102-22123-00-00

$8.96

3

SPACER

90560-10286-00

Unavailable

4

SPACER

90560-14287-00

Unavailable

5

SHAFT, PIVOT

486-22141-01-00

$28.08

6

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

7

NUT, U

95617-10100-00

$5.76

8

SUPPORT, CHAIN

21W-22199-00-00

$26.32

9

SCREW, PAN HEAD

90157-05M19-00

$3.14

10

WASHER(3SX)

92907-05100-00

$5.76

11

WASHER(1RW)

92907-05600-00

$0.77

12

SEAL, GUARD

2AL-22151-00-00

Unavailable

13

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$6.03
