1967 Yamaha YR1_2_2C (YR1) Tool BOX Diagram

← All diagrams

Find the part on the Tool BOX diagram for your 1967 Yamaha YR1_2_2C (YR1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

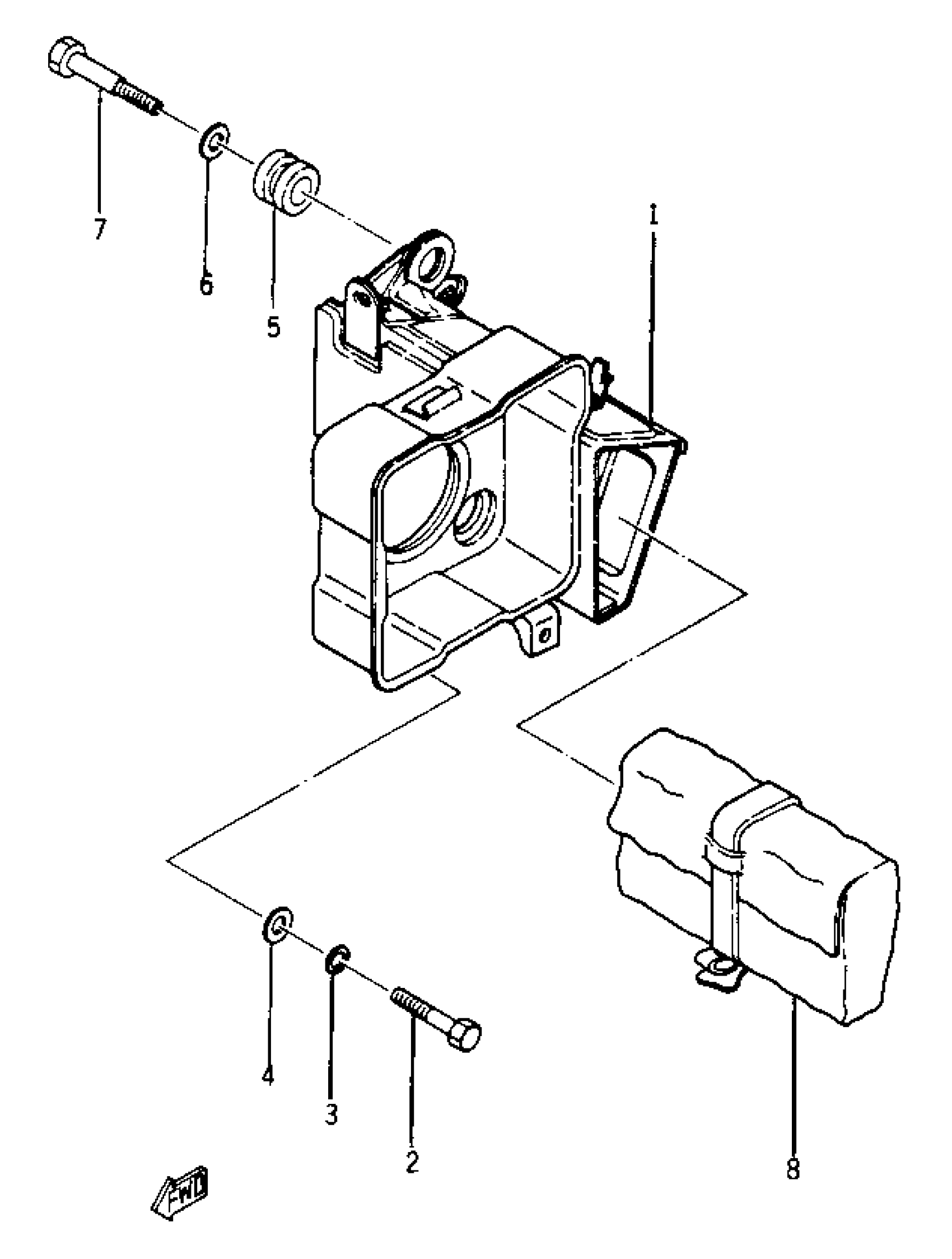

1967 Yamaha YR1_2_2C (YR1) Tool BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX

(168-21170-00-33)

1
Out of stock

2

BOLT (661)

97013-06012-00

1

$4.71

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

DAMPER

(168-21747-00-00)

1
Out of stock

6

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

7

BOLT 168217380000

90109-06017-00

—
Out of stock

8

TOOL KIT

(171-28100-01-00)

1
Out of stock
