1967 Yamaha YR1_2_2C (YR1) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1967 Yamaha YR1_2_2C (YR1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

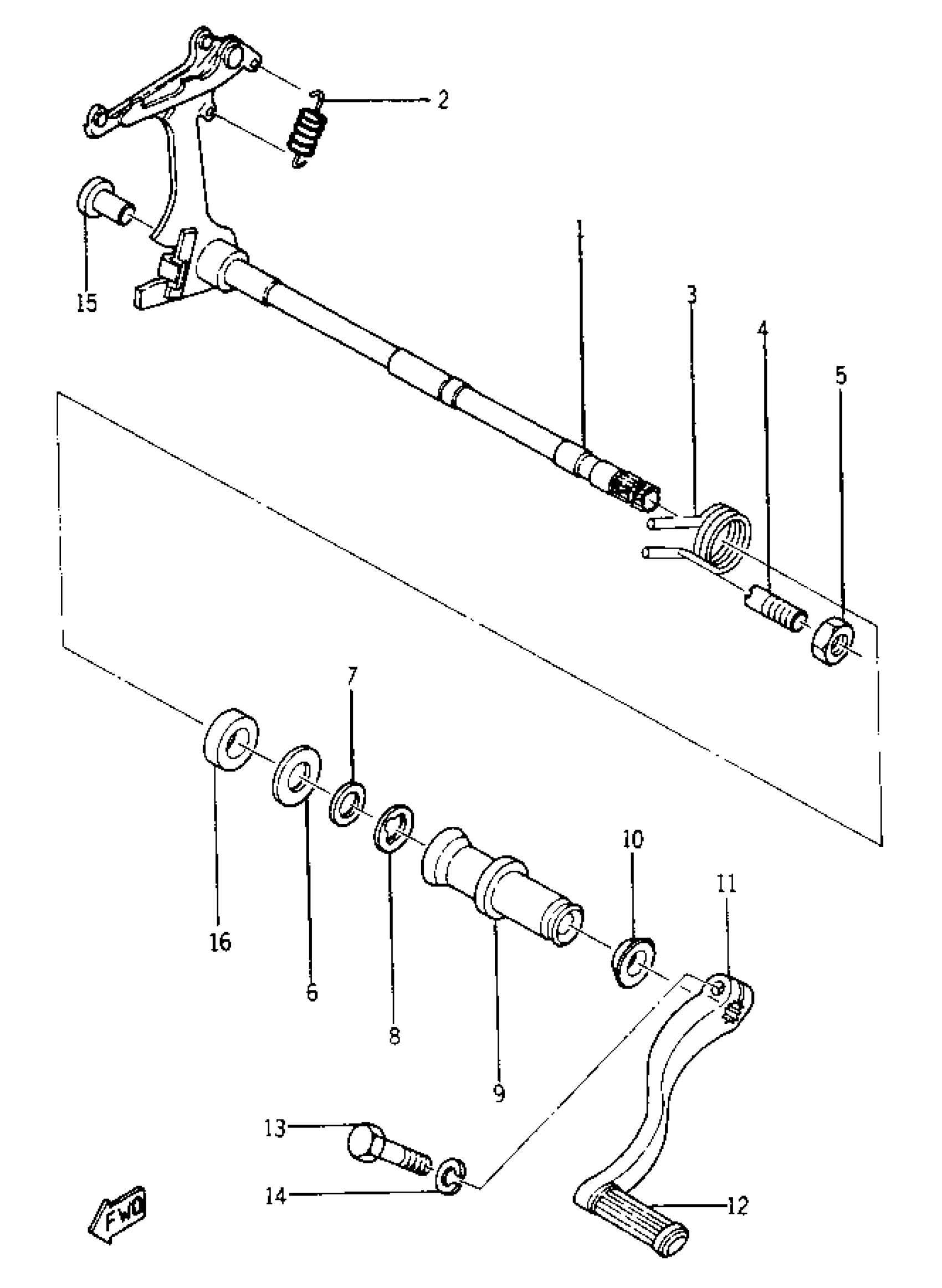

1967 Yamaha YR1_2_2C (YR1) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY.1

(168-18101-02-00)

1
Out of stock

2

SPRING, TENSION

90506-08007-00

1
Out of stock

3

SPRING, TORSION

90508-32559-00

1
Out of stock

4

SCREW, SPEC''L SHAPE

(90149-10018-00)

1
Out of stock

5

NUT, HEXAGON

(90170-10169-00)

1
Out of stock

6

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

7

WASHER,PLATE

90201-12168-00

1
Out of stock

8

CIRCLIP (137)

93430-10015-00

1
Out of stock

9

BOOT, SEALING

(168-18131-00-00)

1
Out of stock

10

SEAL, SHIFT SHAFT

(168-18132-01-00)

1
Out of stock

11

PEDAL, SHIFT

2J2-18111-01-00

1
Out of stock

12

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

PLUG(3AJ)

90338-22207-00

1

$3.92

In stock

16

SEAL, OIL (30X)

93102-12321-00

—

$10.14

In stock
