1967 Yamaha YR1_2_2C (YR1) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1967 Yamaha YR1_2_2C (YR1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

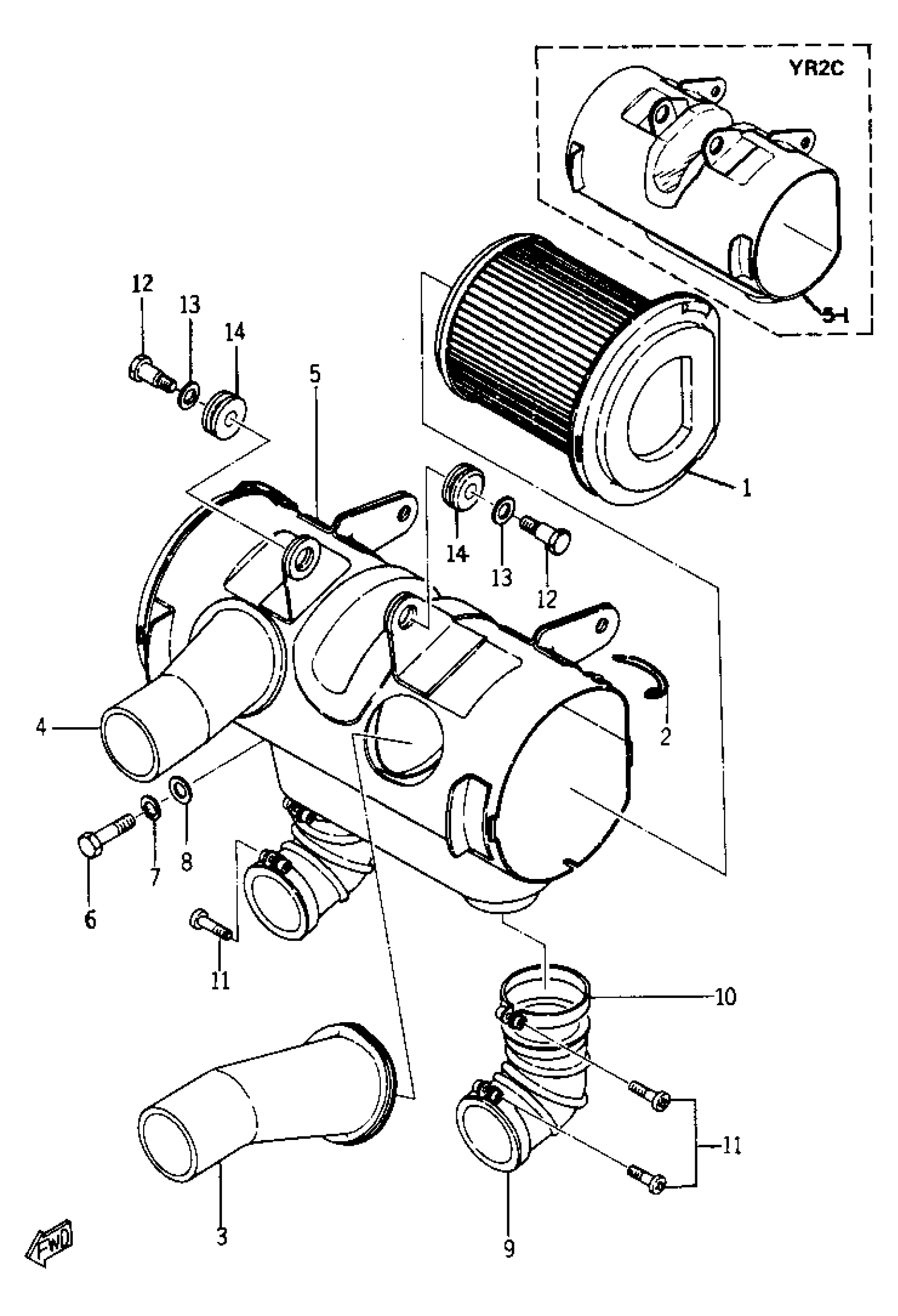

1967 Yamaha YR1_2_2C (YR1) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ELEMENT, AIR CLNR

(168-14451-00-00)

1
Out of stock

2

CLIP, CAP FITTING

(168-14424-00-00)

1
Out of stock

3

PIPE, SUCTION 1

(168-14423-00-00)

1
Out of stock

4

PIPE, SUCTION 2

(168-14433-00-00)

1
Out of stock

5

CASE, AIR CLEANER 1

(168-14411-00-33)

1
Out of stock

5

CASE, AIR CLEANER 1

(222-14411-00-33)

1
Out of stock

6

BOLT (661)

97013-06012-00

1

$4.71

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

JOINT, AIR CLNR 1

(168-14453-00-00)

1
Out of stock

10

CLAMP, H0SE (29R)

90460-49248-00

1

$20.77

In stock

11

SCREW, PAN HEAD

(92501-04025-00)

1
Out of stock

11

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

12

BOLT 168217380000

90109-06017-00

—
Out of stock

13

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

14

DAMPER

(168-21747-00-00)

1
Out of stock
← Fuel Tank Clutch →
