1967 Yamaha YR1_2_2C (YR1) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1967 Yamaha YR1_2_2C (YR1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

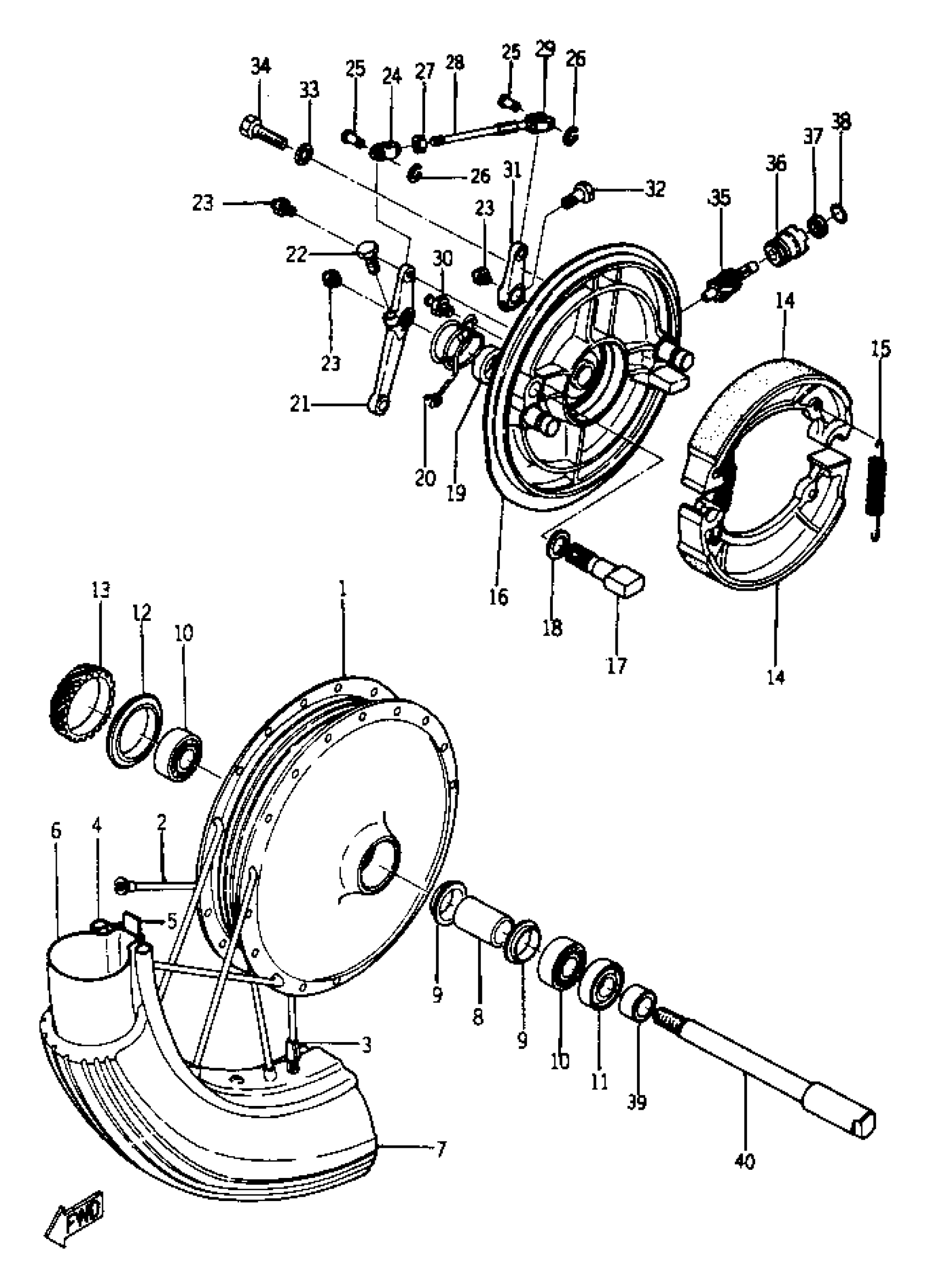

1967 Yamaha YR1_2_2C (YR1) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(152-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

152-25104-00-00

1
Out of stock

3

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

4

RIM 1.60X18

(94416-18013-00)

1
Out of stock

5

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

6

TUBE (5H5)

94227-18195-00

1
Out of stock

7

300X18 DUNLOP K-70

(94130-18038-00)

1
Out of stock

7

YOKO 300S18 Y986

(94130-18363-00)

1
Out of stock

8

SPACER, BEARING

(152-25117-00-00)

1
Out of stock

9

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

10

1

$31.64

In stock

11

OIL SEAL, SDD-TYPE

(93105-24006-00)

1
Out of stock

12

OIL SEAL, OS-TYPE

(93107-50003-00)

1
Out of stock

13

GEAR, DRIVE

(152-25135-00-00)

1
Out of stock

14

BRAKESHOE SET-2PCS

168-W2535-00-00

1
Out of stock

15

—

$8.09

In stock

16

PLATE, BRAKE SHOE

(156-25121-01-00)

1
Out of stock

17

CAMSHAFT

(168-25151-00-00)

1
Out of stock

18

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

19

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

20

SPRING, TORSION

(90508-23032-00)

1
Out of stock

21

LEVER,CAMSHAFT 1

168-25155-00-00

1
Out of stock

22

BOLT, HEXAGON

97013-06018-00

—

$1.54

In stock

23

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

24

END, ROD 1

152-25163-00-00

1
Out of stock

25

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

26

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

27

NUT(650)

95380-06700-00

—

$6.17

In stock

28

ROD, CONNECTING

(152-25161-00-00)

1
Out of stock

29

END, ROD 2

152-25164-00-00

1
Out of stock

30

SPRING, HOOK PIN

(152-25125-00-00)

1
Out of stock

31

LEVER, CAMSHAFT 2

(168-25156-00-00)

1
Out of stock

32

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

35

GEAR, METER

(152-25138-00-00)

1
Out of stock

36

BUSHING

109-25136-00-00

—

$8.78

In stock

37

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

38

O-RING (26H)

93210-14579-00

—

$5.69

In stock

39

COLLAR

(90387-17136-00)

1
Out of stock

40

AXLE, WHEEL

(152-25181-00-00)

1
Out of stock
